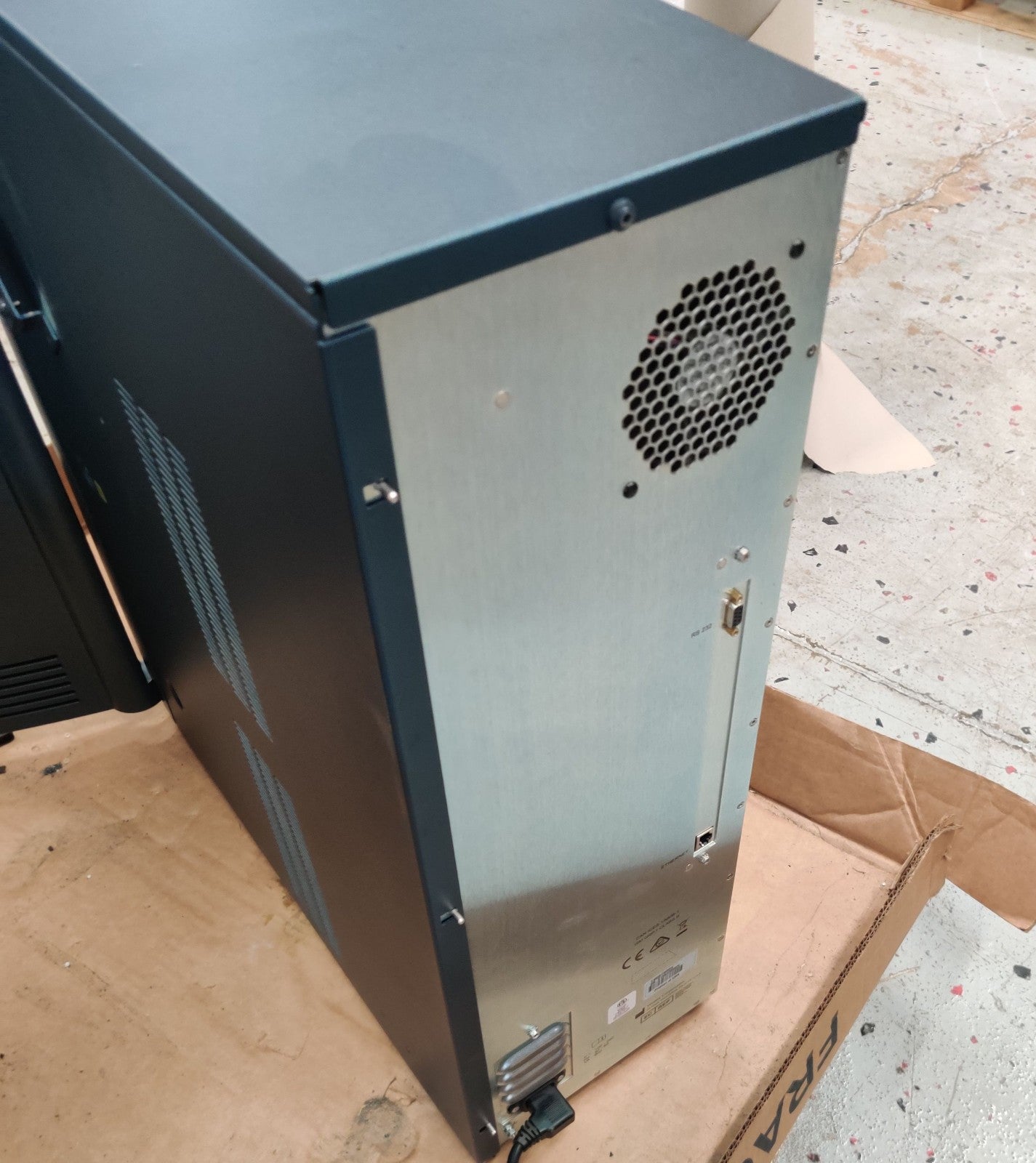

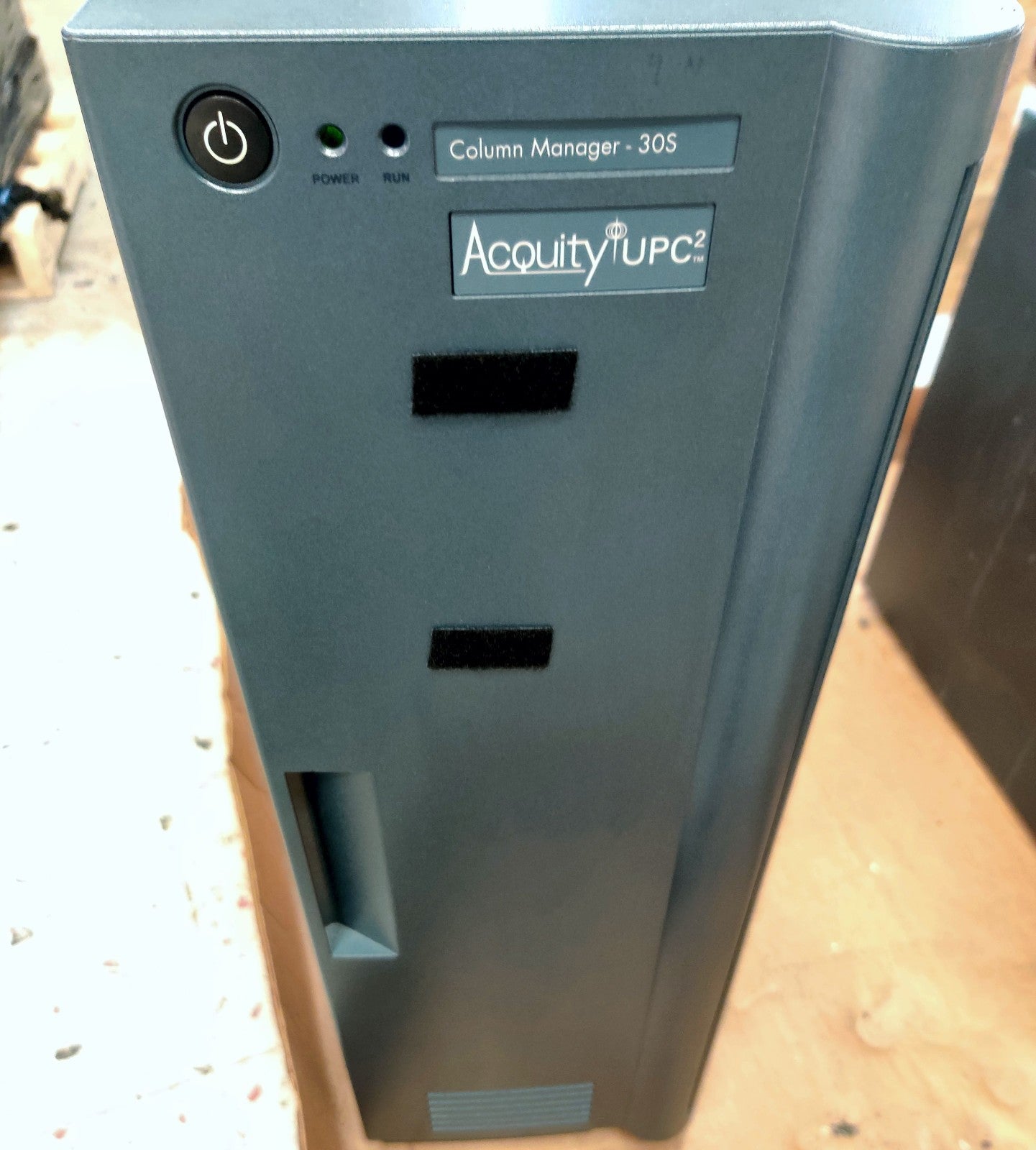

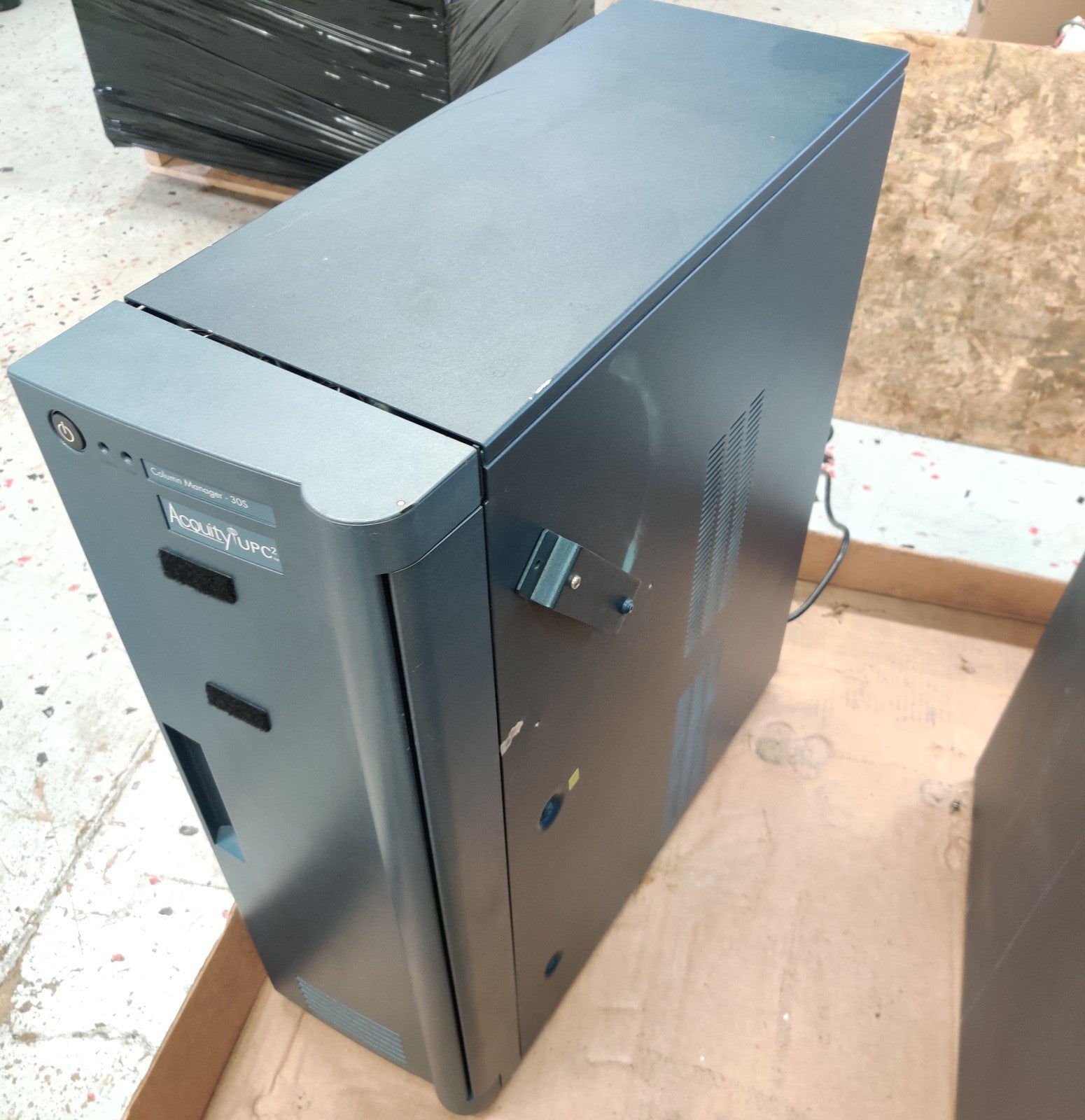

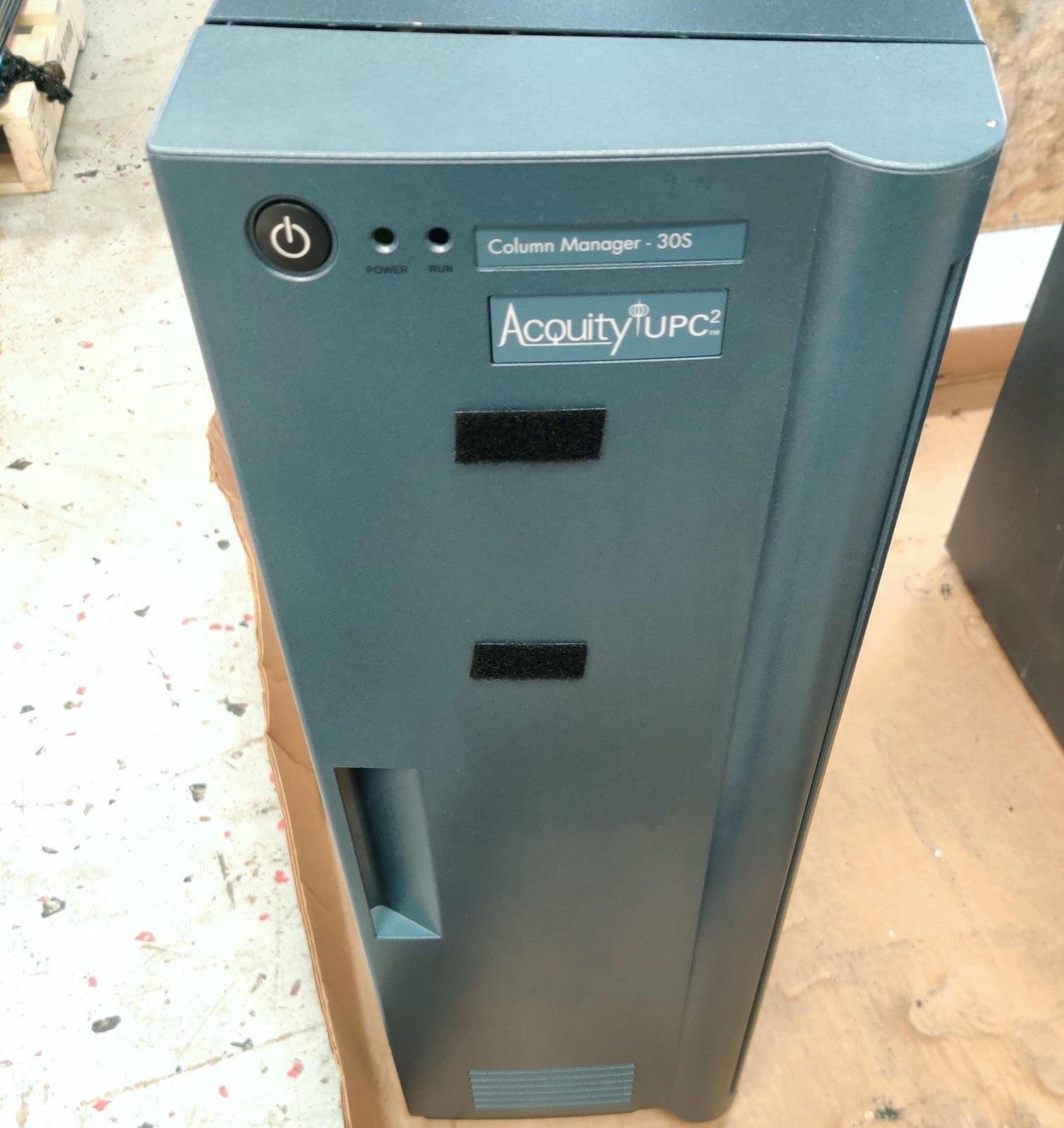

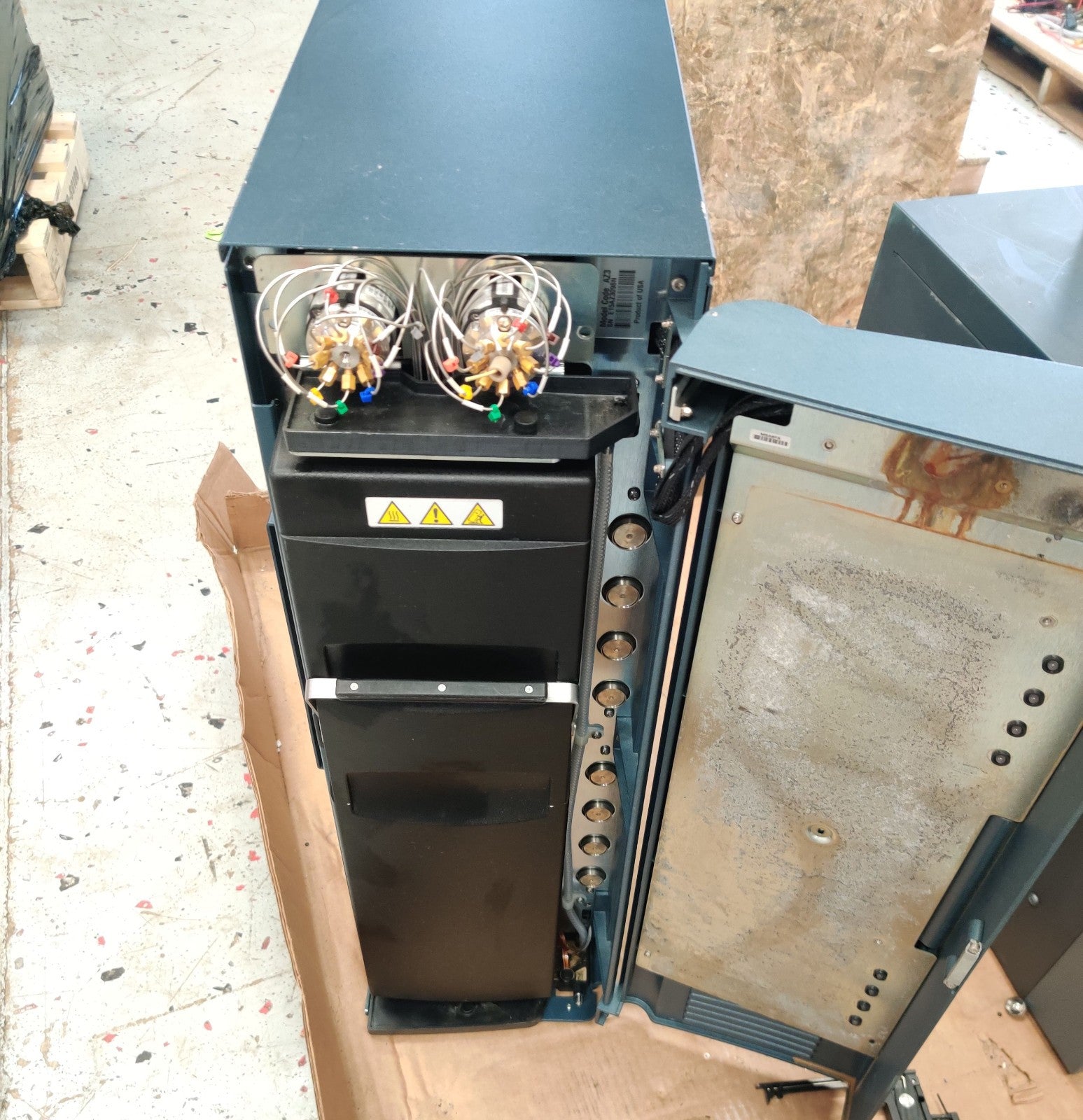

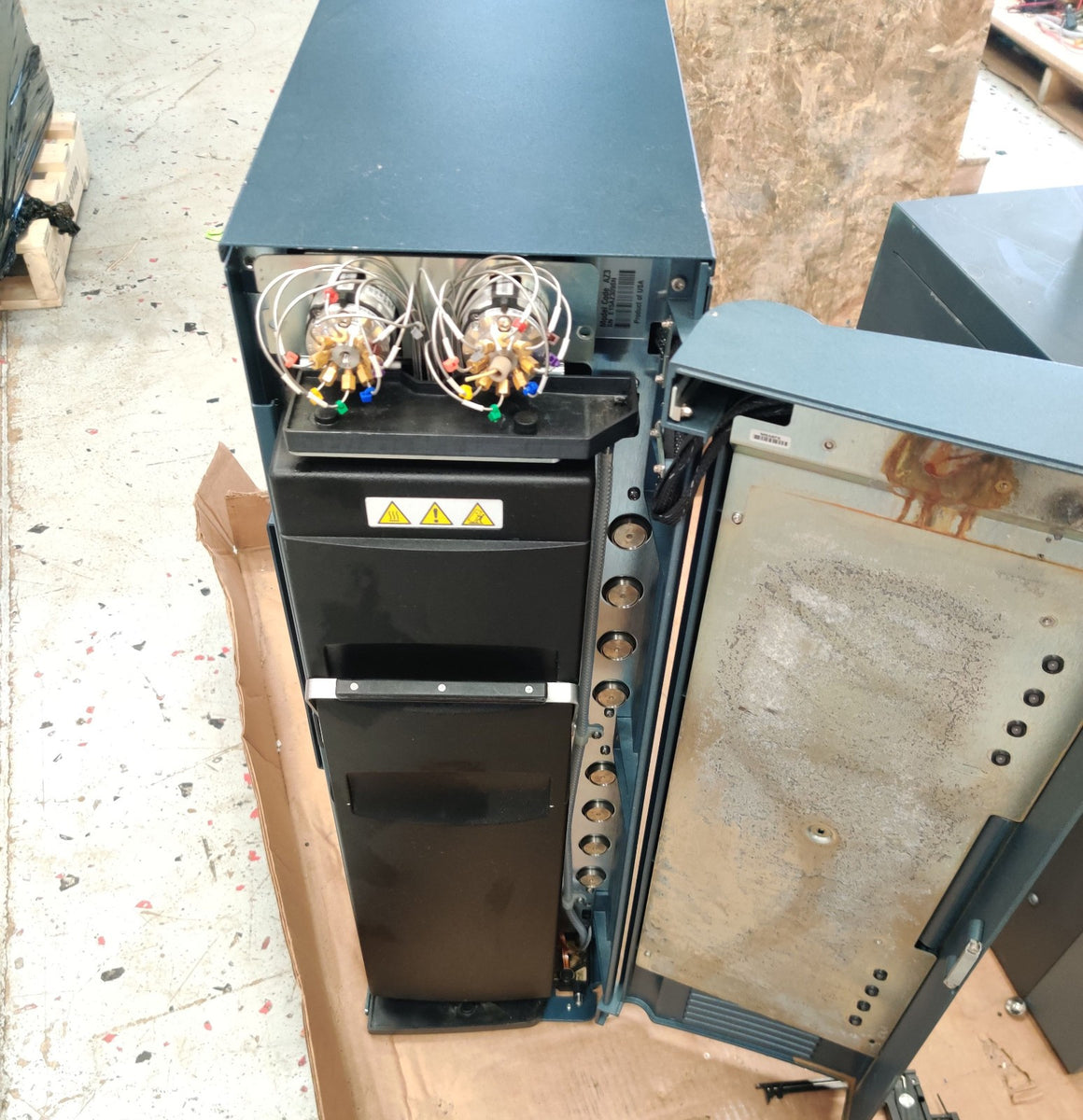

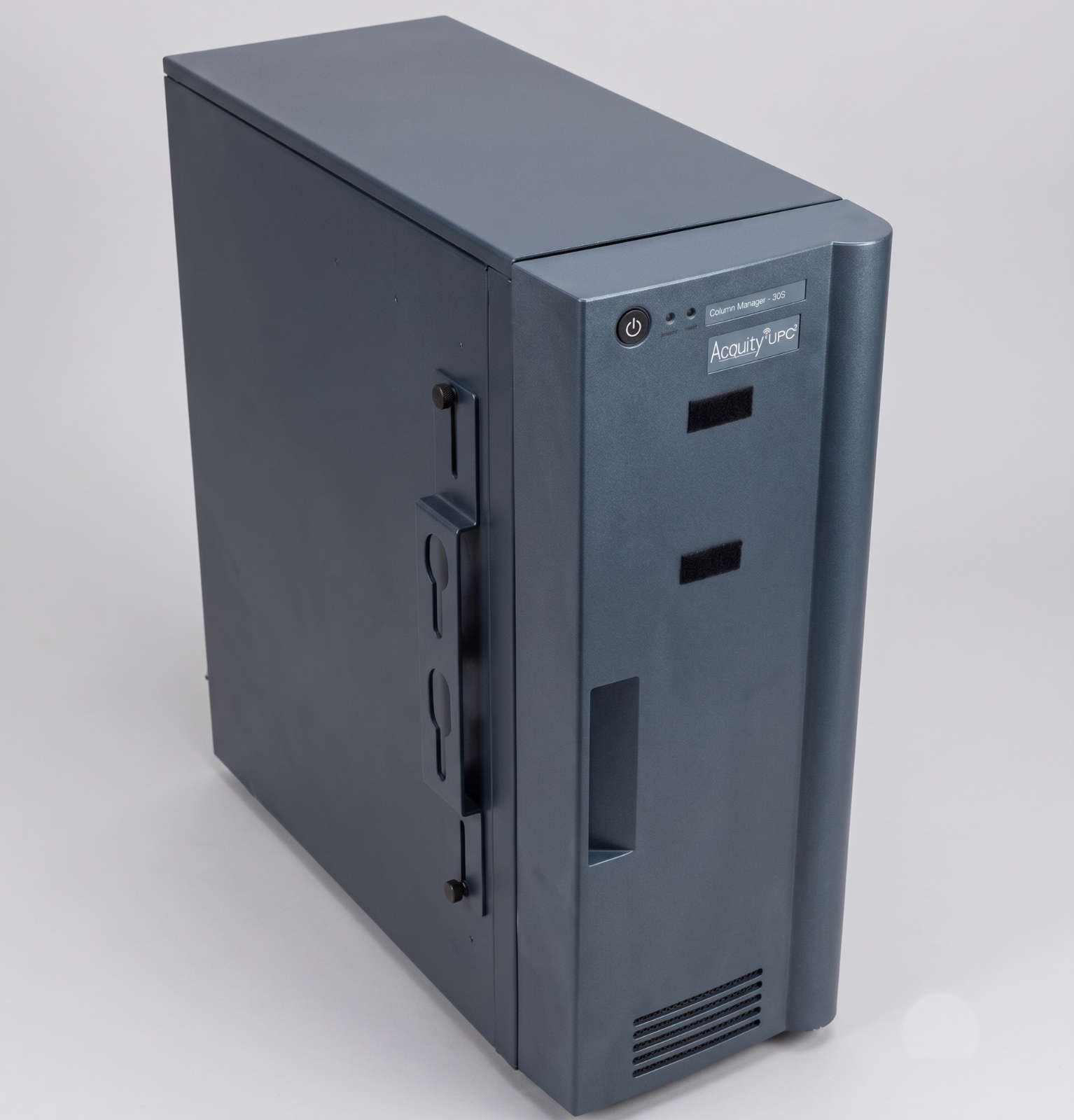

Waters ACQUITY UPC2 Column Manager CM-30S 186015055

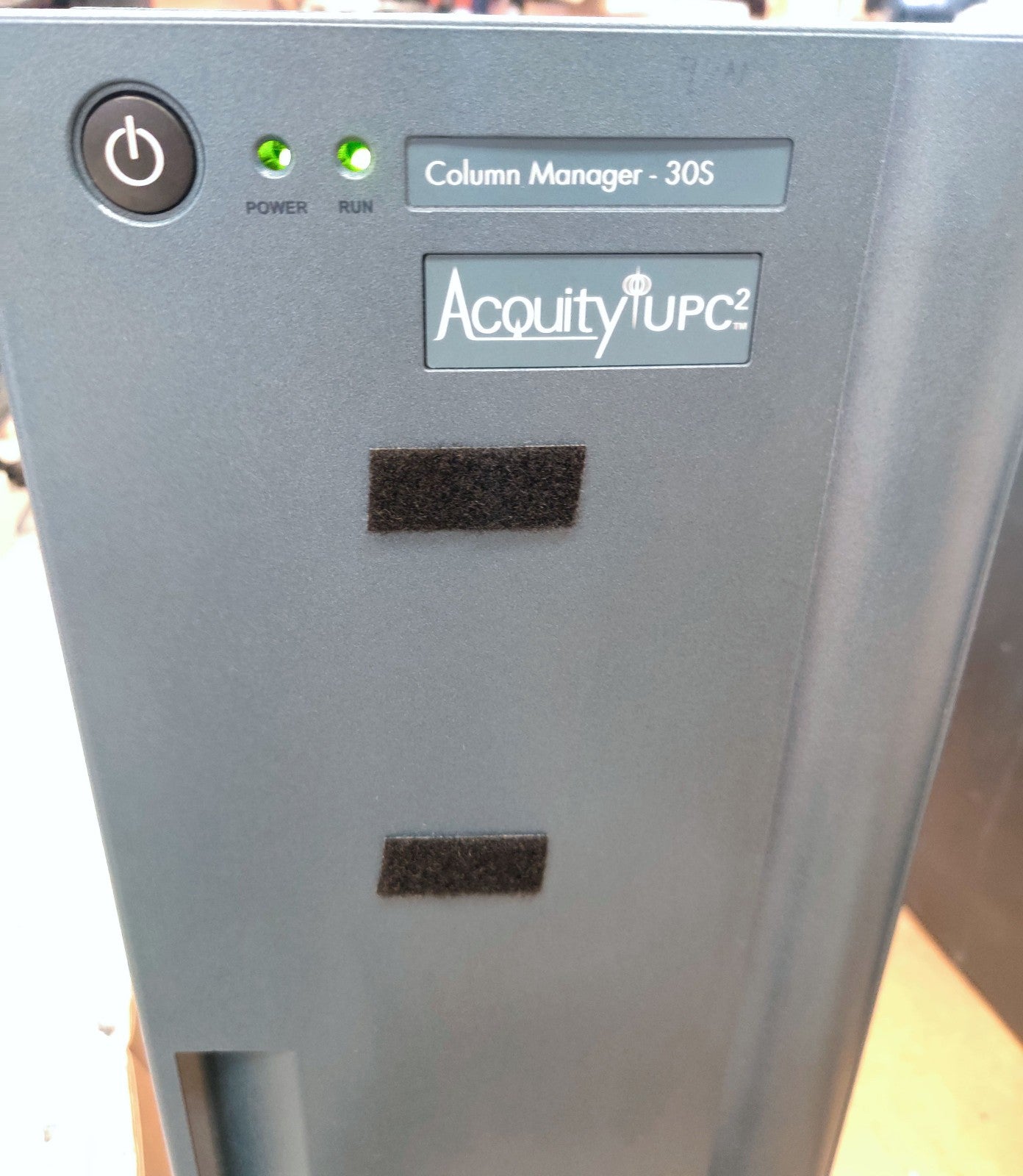

Used. Excellent condition. The unit has been powered, and both options turned green, indicating ready to use. Pulled from a working lab. 30-Day Returns!

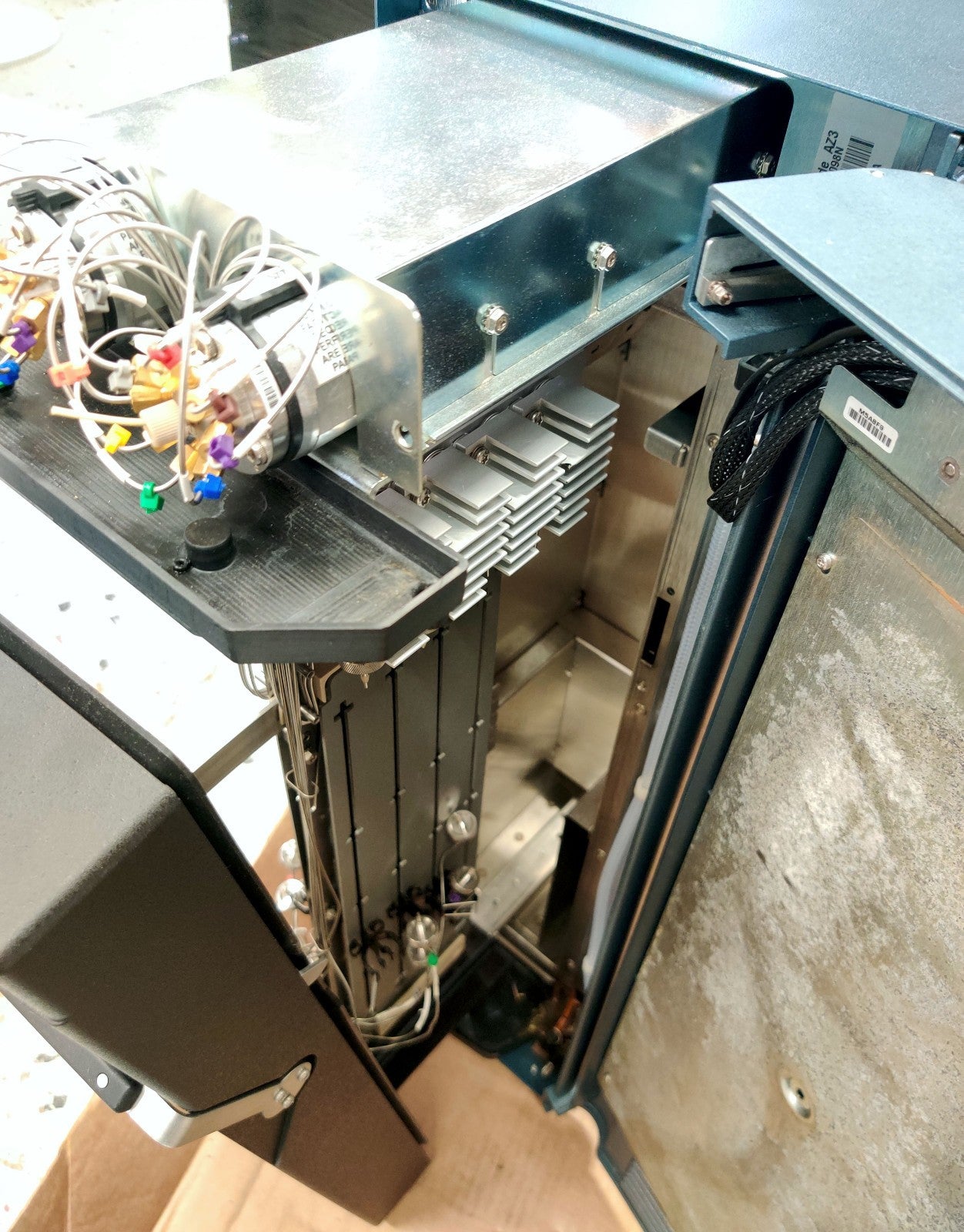

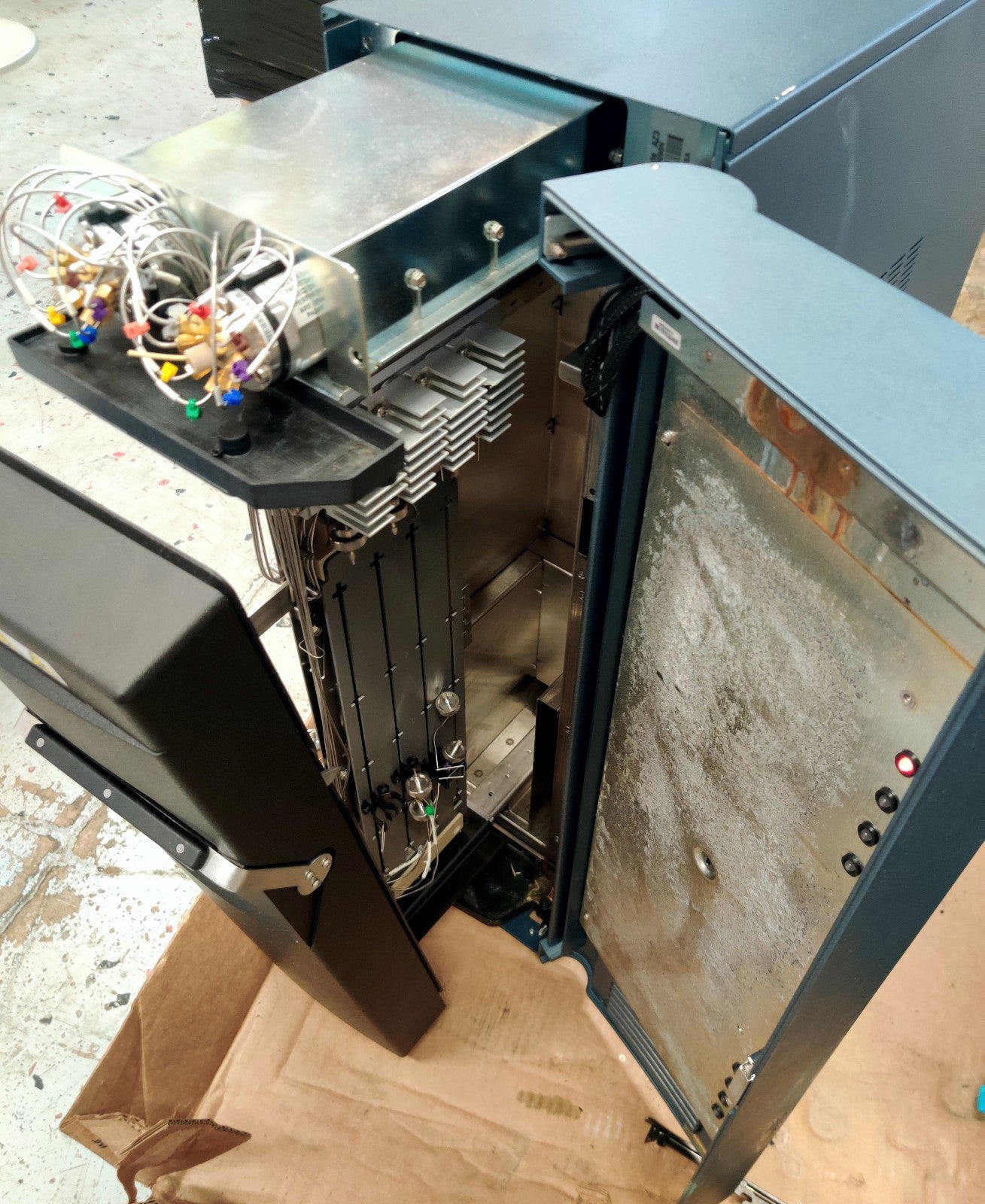

The 30-cm, single-zone column manager is designed for multicolumn heating and switching, ensuring consistent temperature control across the columns and directly scaling up the analytical method.

Performance Specifications:

Analytical columns: Inside Diameter (ID) 2.1 to 8.0 mm; Length 30.0 to 300.0 mm
Guard columns: Inside Diameter (ID) 2.1 to 8.0 mm; Length 50.0 mm maximum

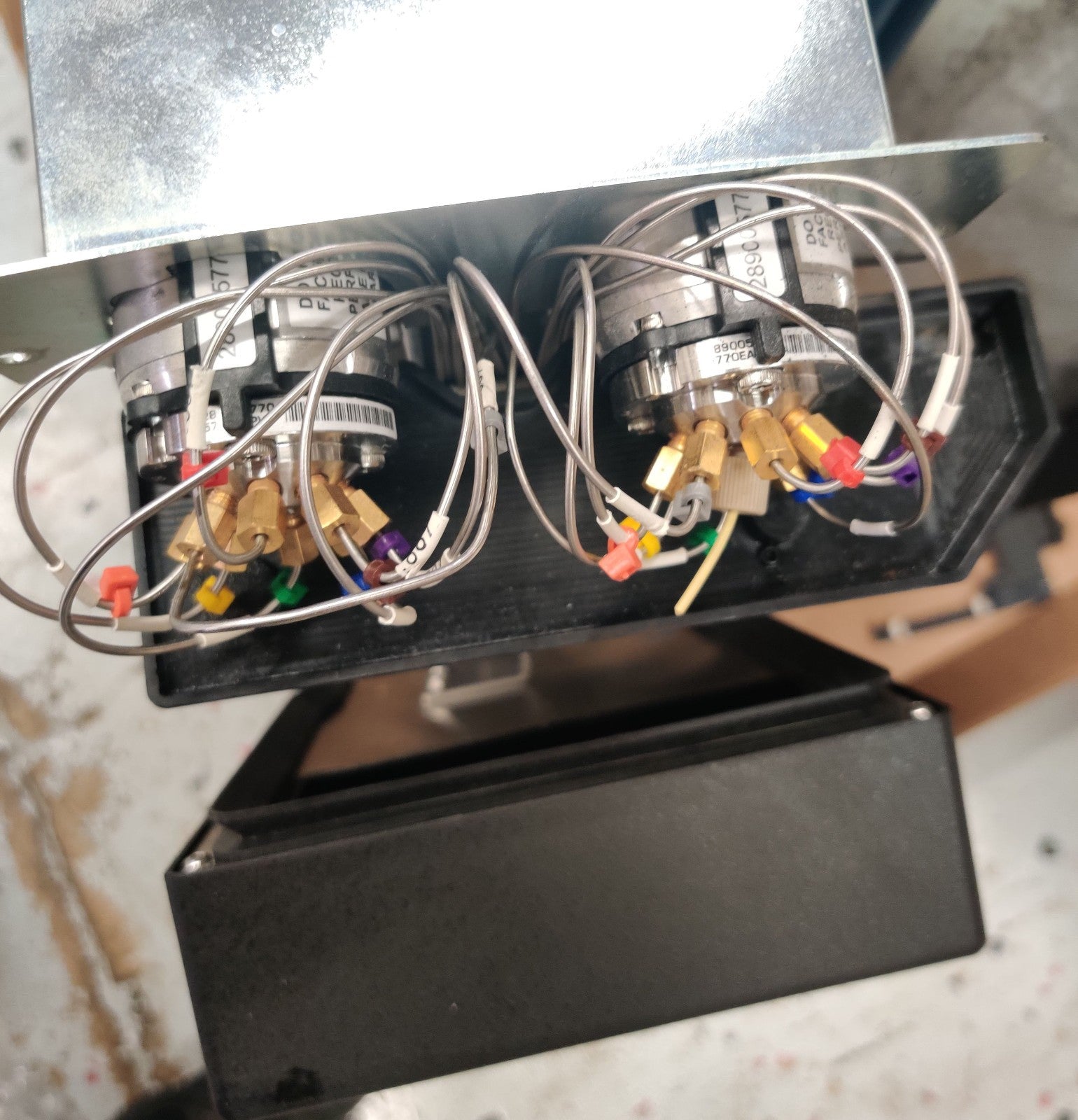

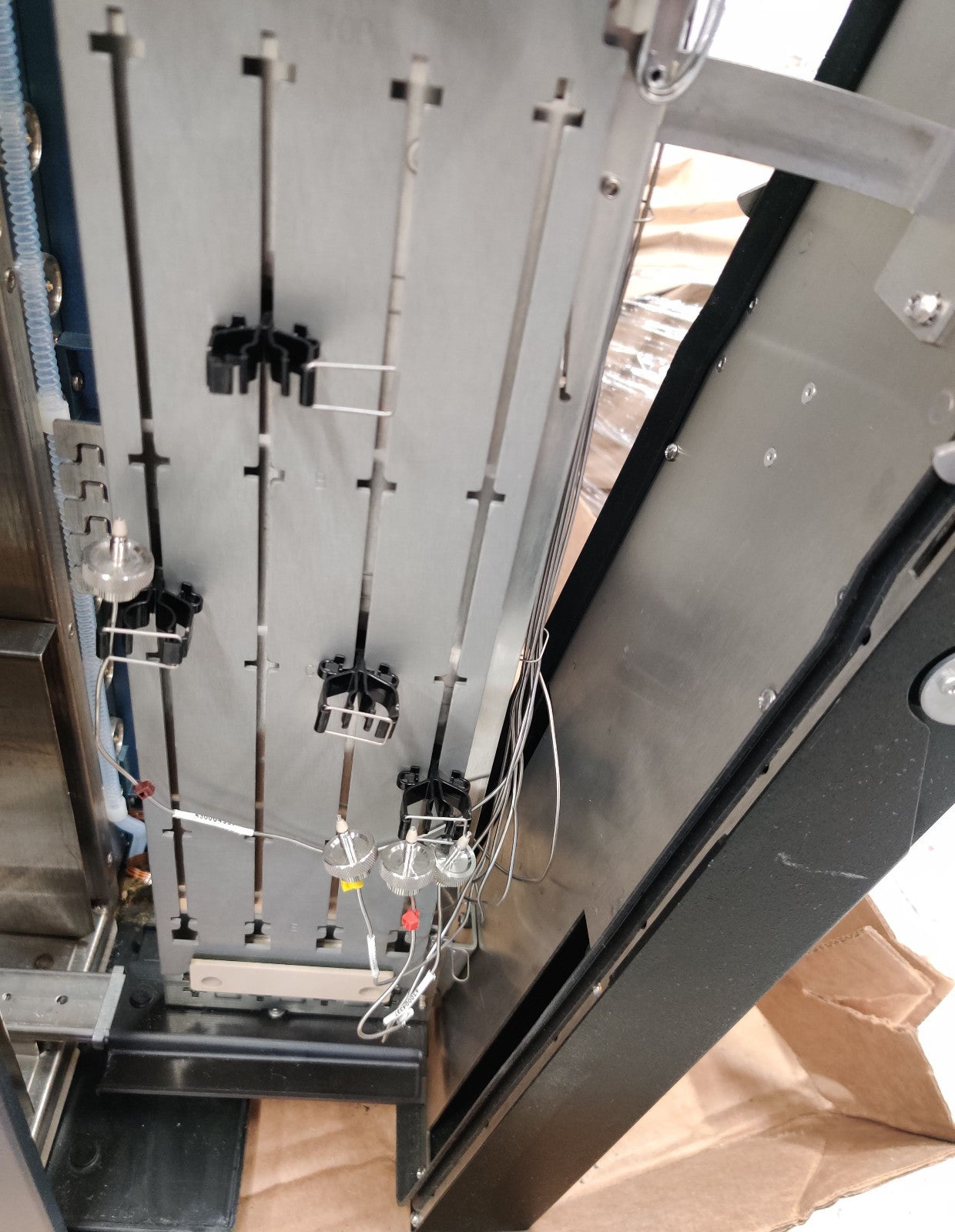

Number of columns (APC): Maximum of two selectable banks of columns, where each bank contains a maximum of four columns.
Number of columns (UPC2 and Arc): Maximum of eight selectable columns when bypass and waste lines are omitted, or a maximum of six selectable columns with bypass and waste lines in use
Column compartment settable temperature range: 20.0 °C to 90.0 °C, in increments of 0.1 °C
Column compartment controllable temperature range: From 5 °C above ambient to 90 °C
Temperature accuracy: +/- 0.5 °C (total error vs. a traceable standard)
Temperature precision (repeatability): +/- 0.1 °C
Temperature stability: +/- 0.5 °C
Temperature distribution along column: +/- 3.0 °C
Audible noise: <58 dB(A) per module (in idle mode, valves not operating)

Wetted Materials of Construction:
For APC systems: 316 stainless steel, DLC
For UPC2 or Arc systems: 316 stainless steel, DLC, PEEK™

Compatibility: ACQUITY Arc and ACQUITY Arc Bio, Advanced Polymer Chromatography (APC), UltraPerformance Convergence Chromatography (UPC2)

Used

Excellent condition. The unit has been powered, and both options turned green, indicating ready to use. Pulled from a working lab. 30-Day Returns!

120lbs

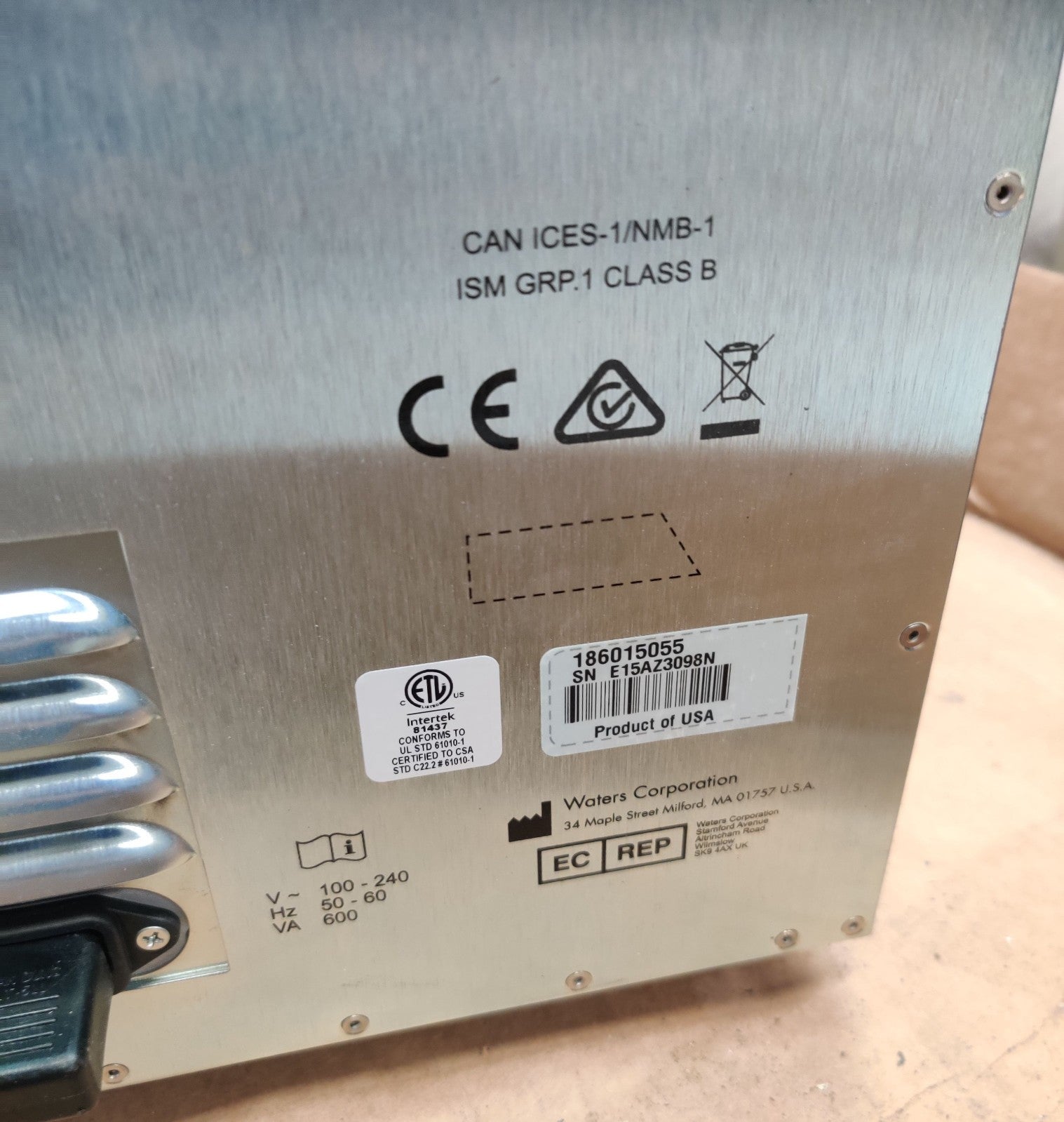

186015055
