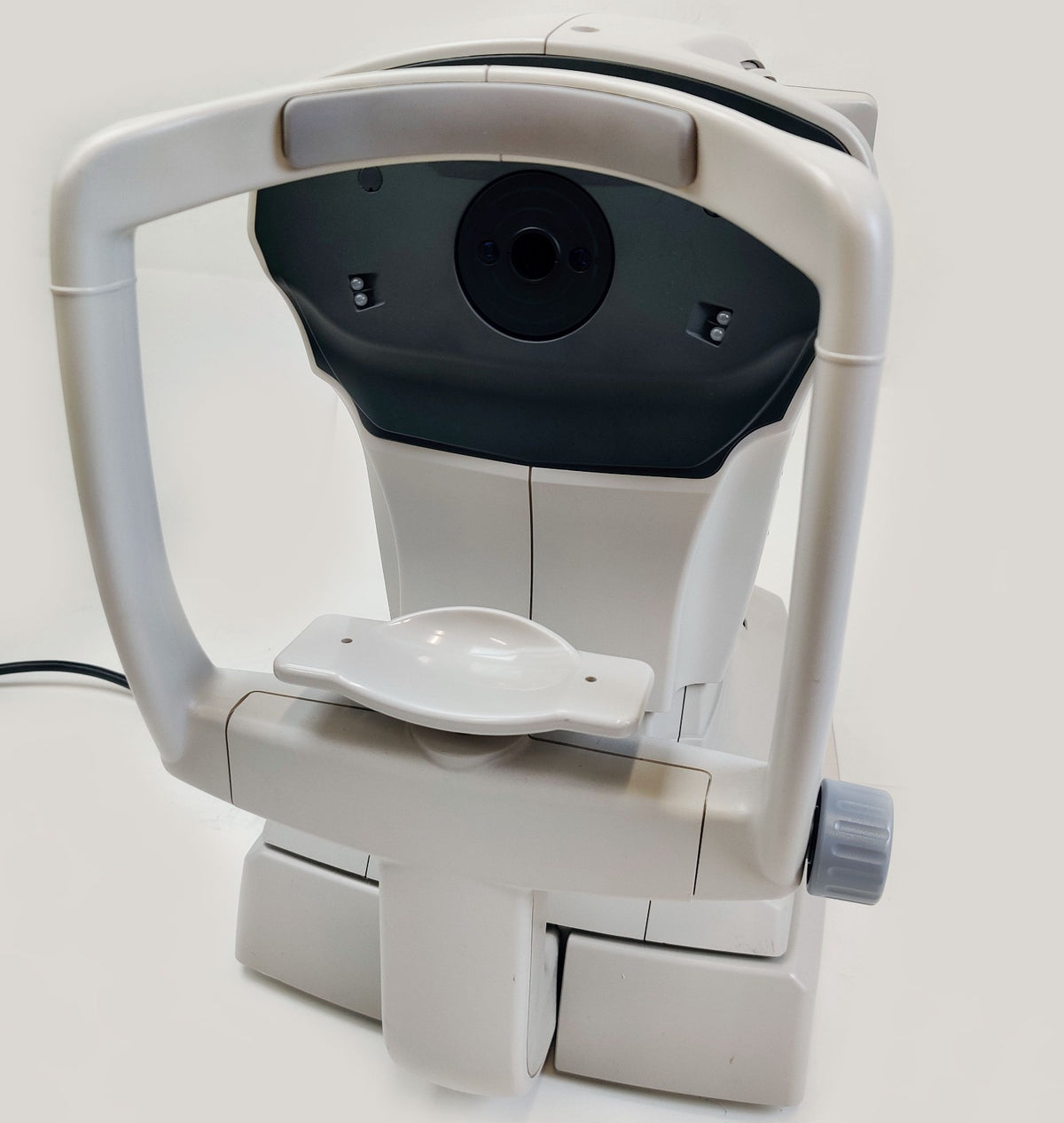

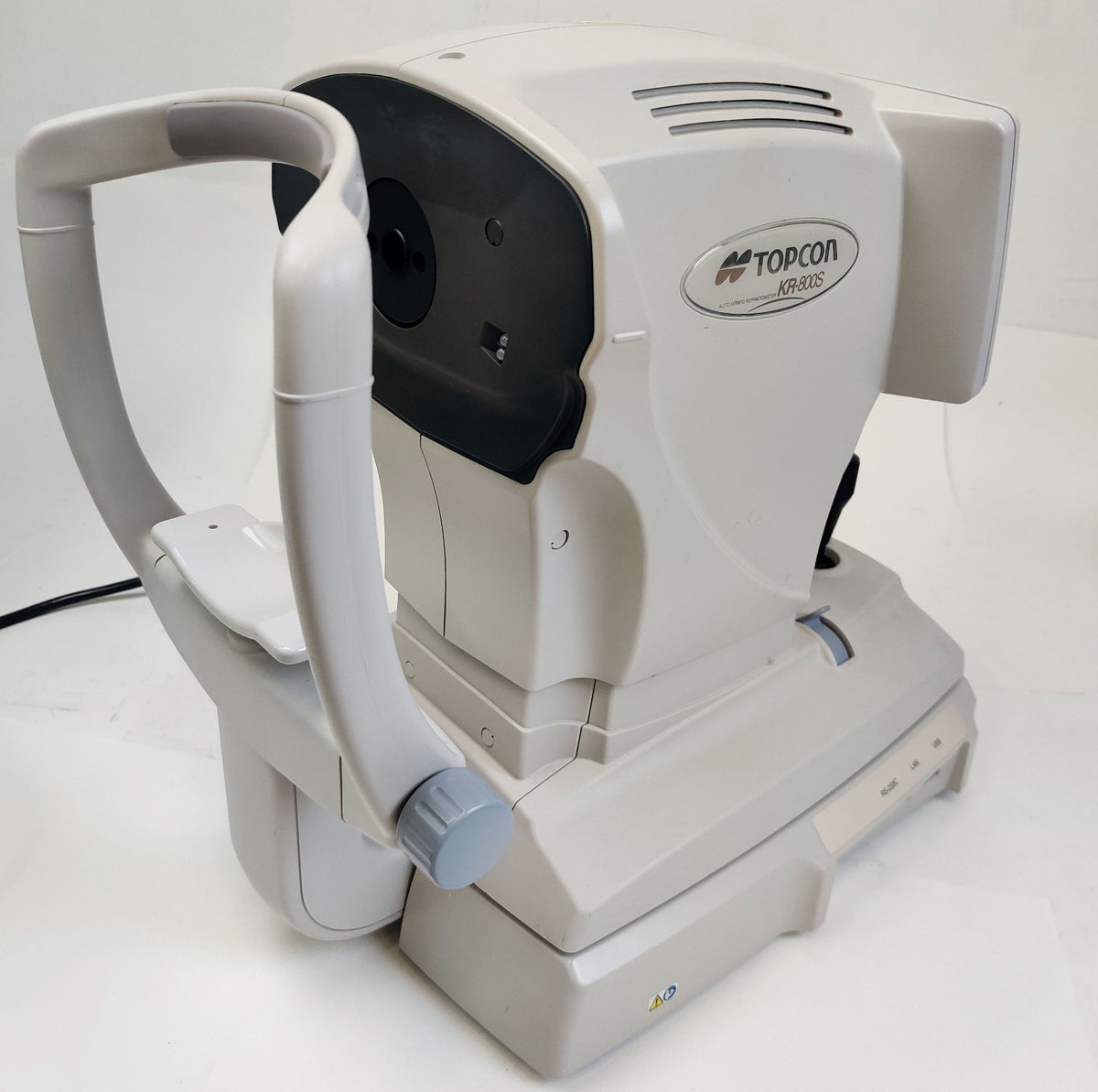

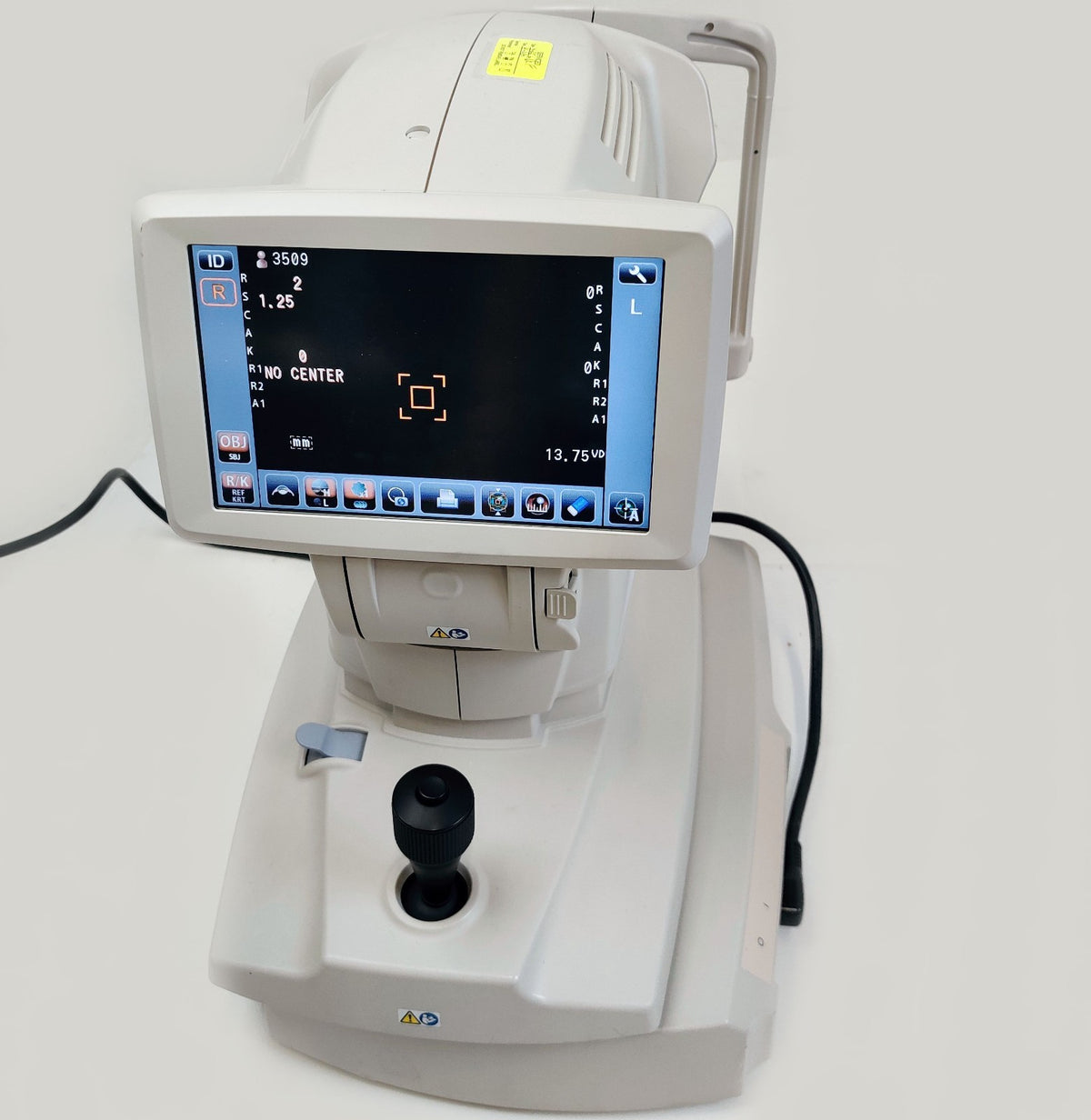

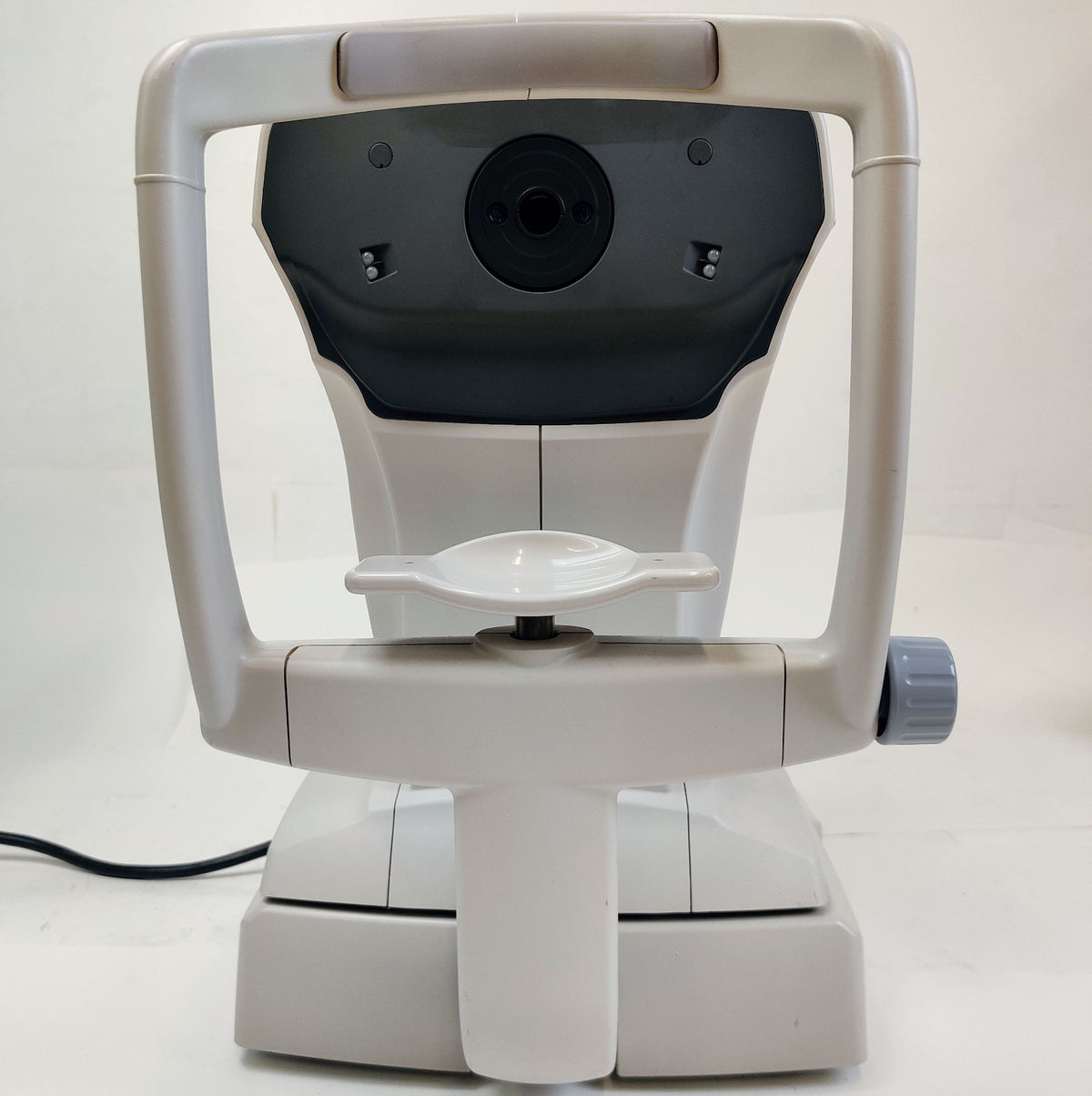

Topcon KR-800S Auto Kerato-Refractometer 5-in-1 Tested w/ Printer

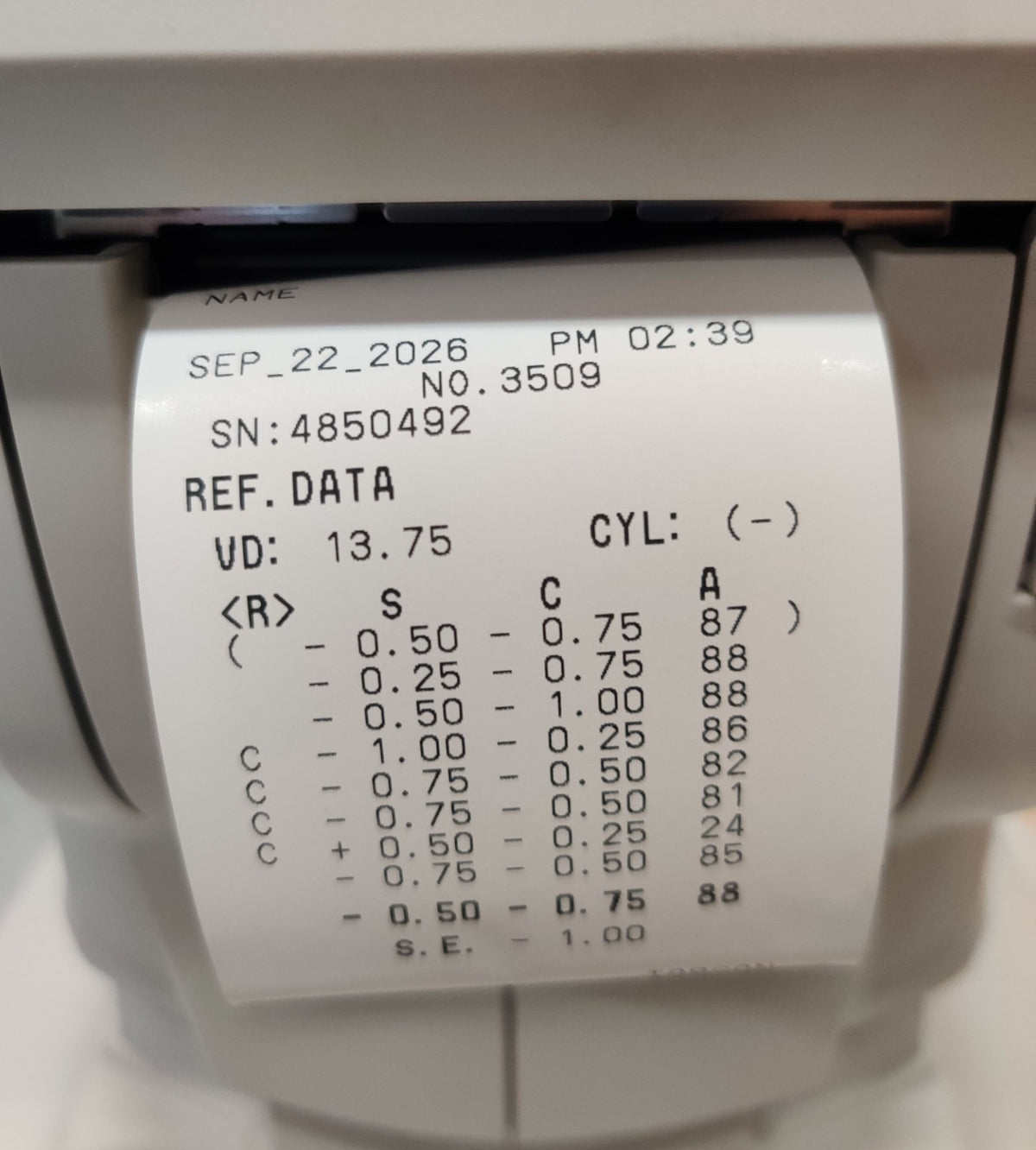

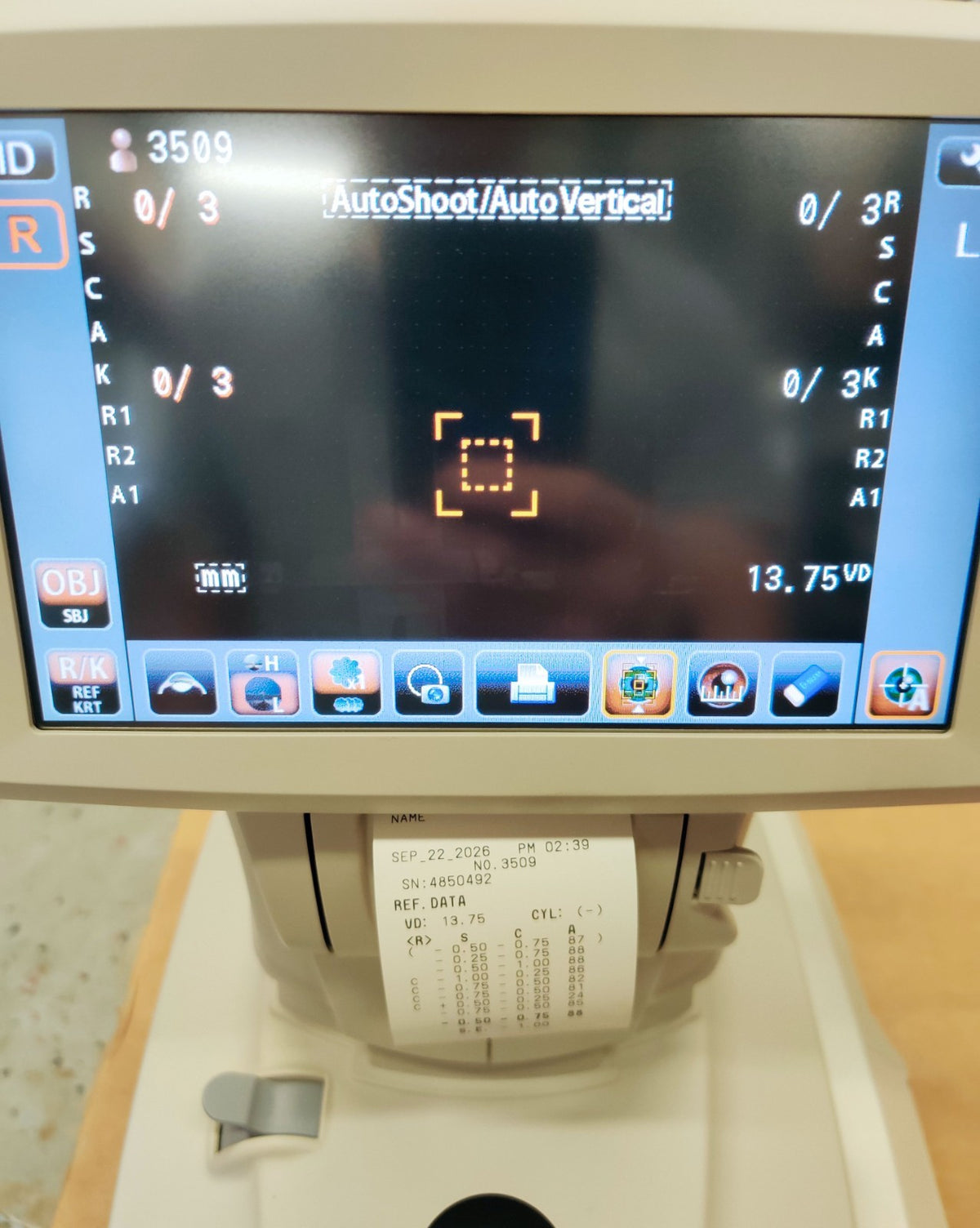

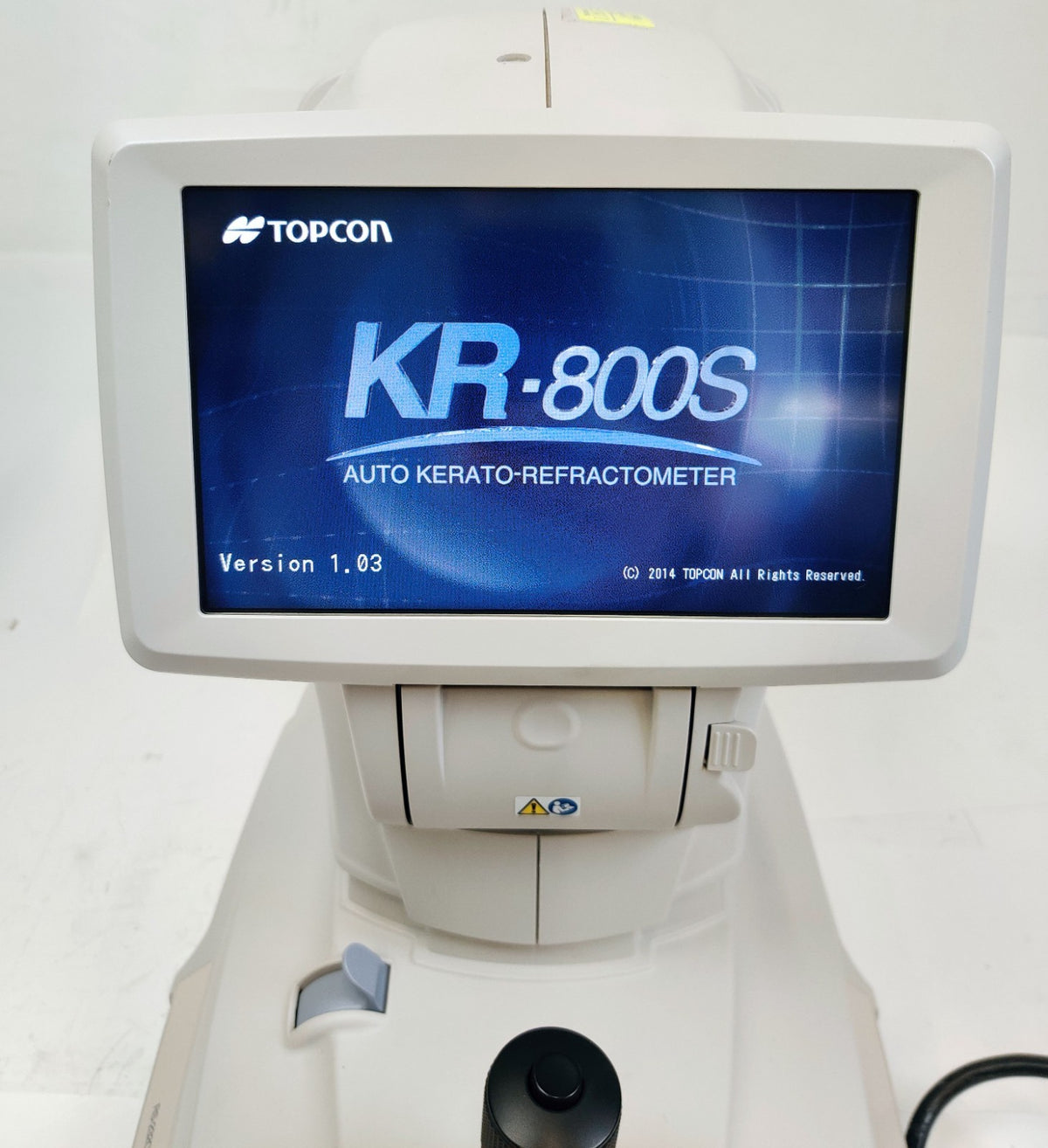

Used, tested. The Topcon KR-800S powers on successfully and completes startup. Functions were tested, and measurements were successfully obtained. The touchscreen, joystick controls, and built-in thermal printer were also tested and responded properly.

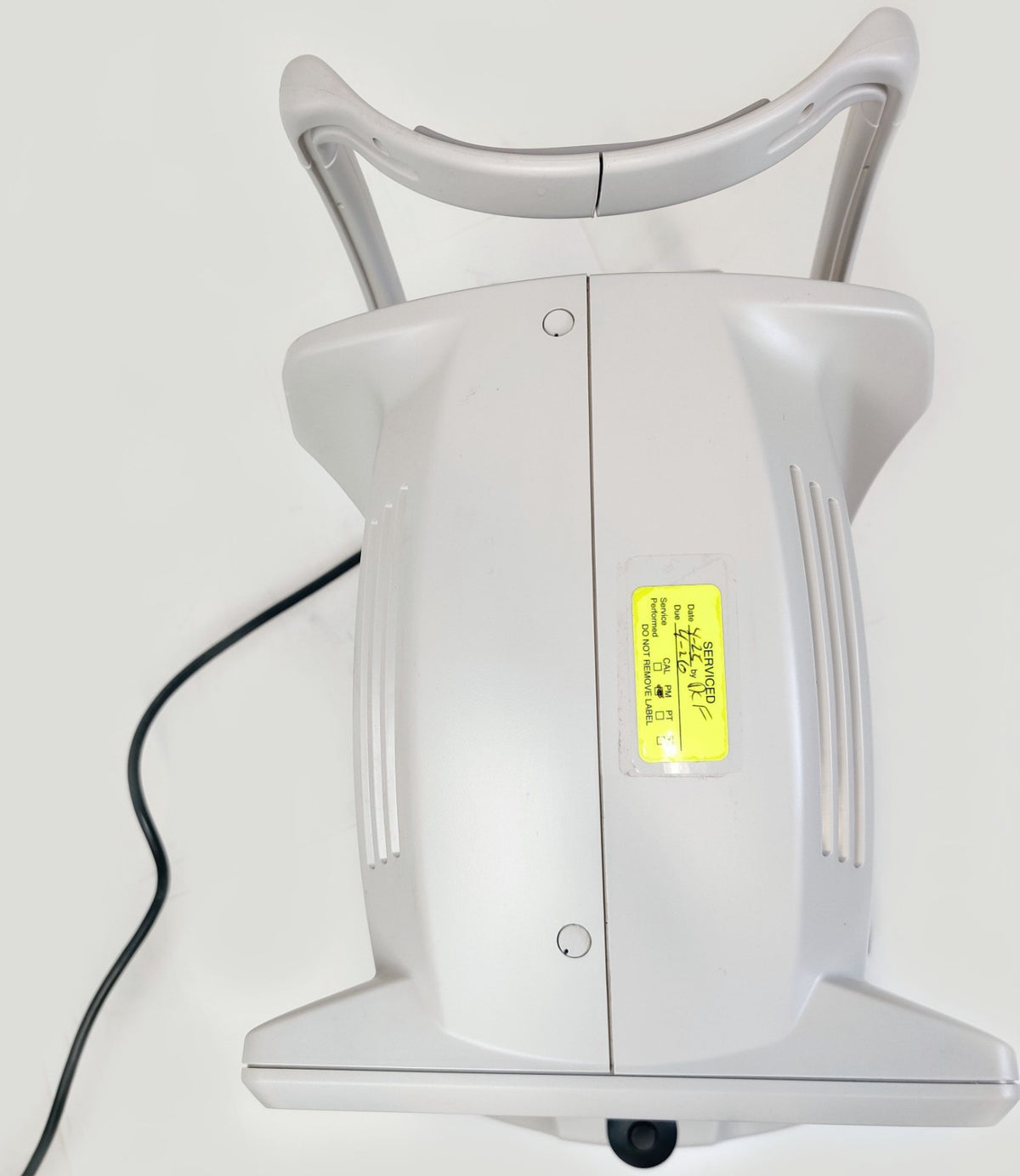

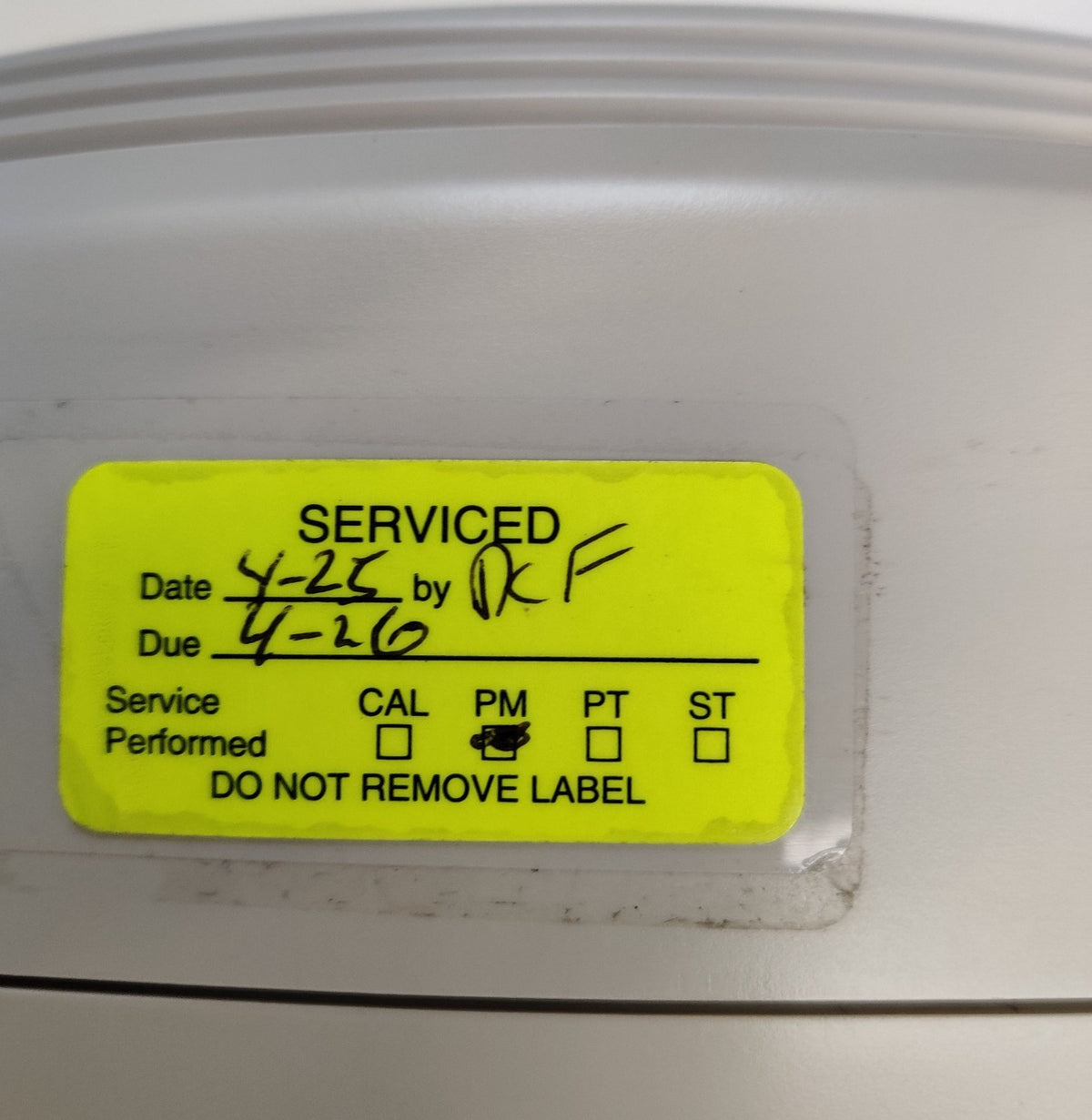

Preventive Maintenance service label dated 04/2025, due 04/2026.

No further testing was performed. Please review all pictures for the exact condition and configuration. Only what is shown in the pictures is included.

30-Day Returns.

KR-800S Specifications

Objective Refractometer Mode

* Sphere Range: -25D to +22D (0.12D/0.25D steps)
* Cylinder Range: 0D to ±10D (0.12D/0.25D steps)
* Axis Range: 0° to 180° (1°/5° steps)
* Minimum Measurable Pupil Diameter: Ø 2 mm

Curvature Mode

* Curvature Radius: 5.00 mm to 10.00 mm (0.01 mm steps)
* Refraction: 67.5D to 33.75D (0.01D/0.12D/0.25D steps)
* Refractive Index: 1.3375
* Astigmatism: 0D to ±10D (0.12D/0.25D steps)
* Astigmatism Axial Angle: 0° to 180° (1°/5° steps)

Other Measurements

* PD Measurement Range: 20 to 85 mm (0.5 mm steps)
* Input/Output: USB (Import), RS-232C (Export), LAN (Export)

General Specifications

* Dimensions: 317-341 mm (W) × 521-538 mm (D) × 447-477 mm (H)

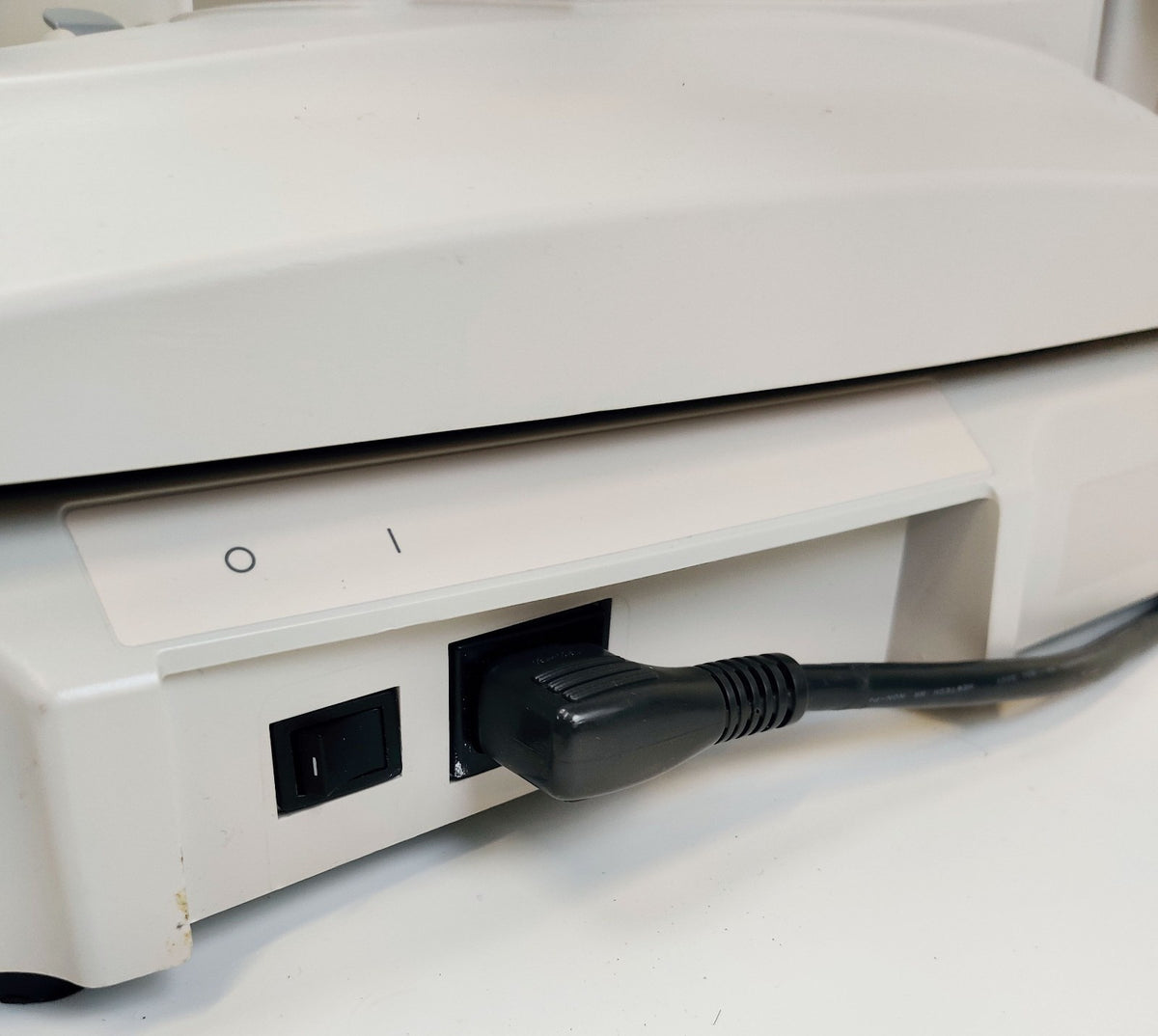

* Power Supply: 100-240V AC, 50-60Hz

Key Features

*5-in-1 Auto Kerato-Refractometer: Combines objective refraction and keratometry with subjective visual acuity, glare, contrast, and grid testing.

*Rotary Prism Technology: Topcon optical measurement technology designed for highly accurate refractive and keratometric measurements, including measurements through pupils as small as 2 mm.

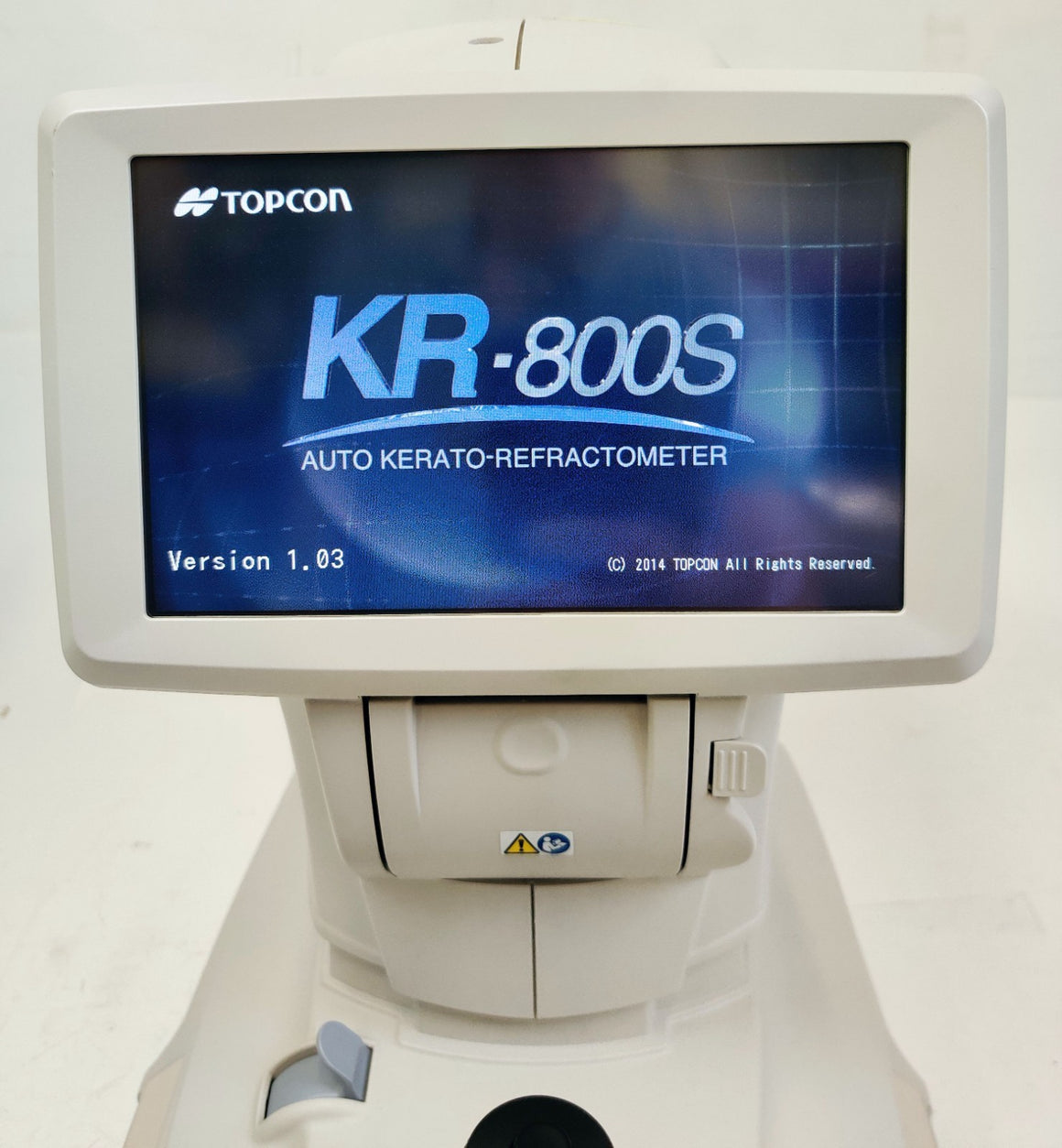

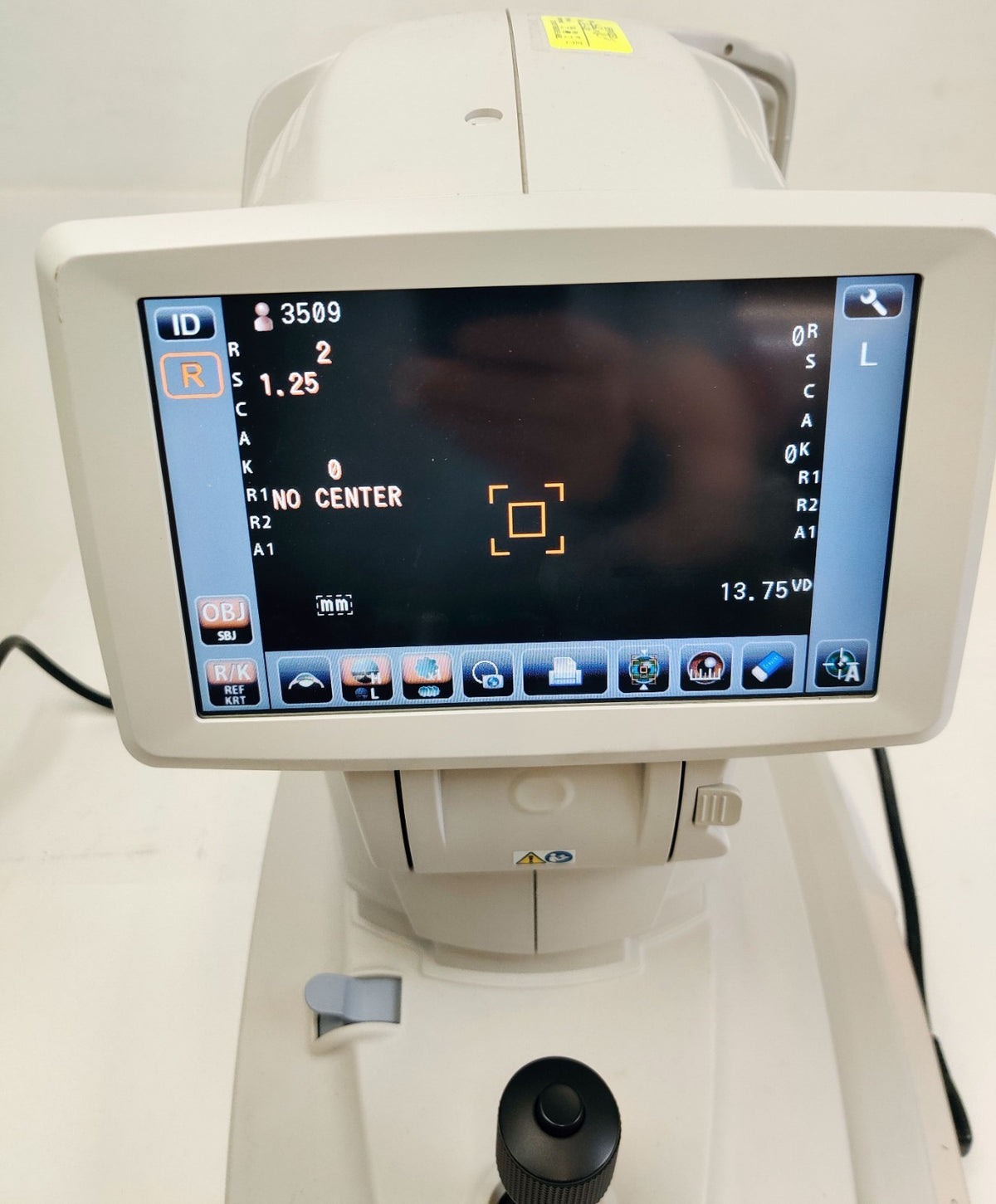

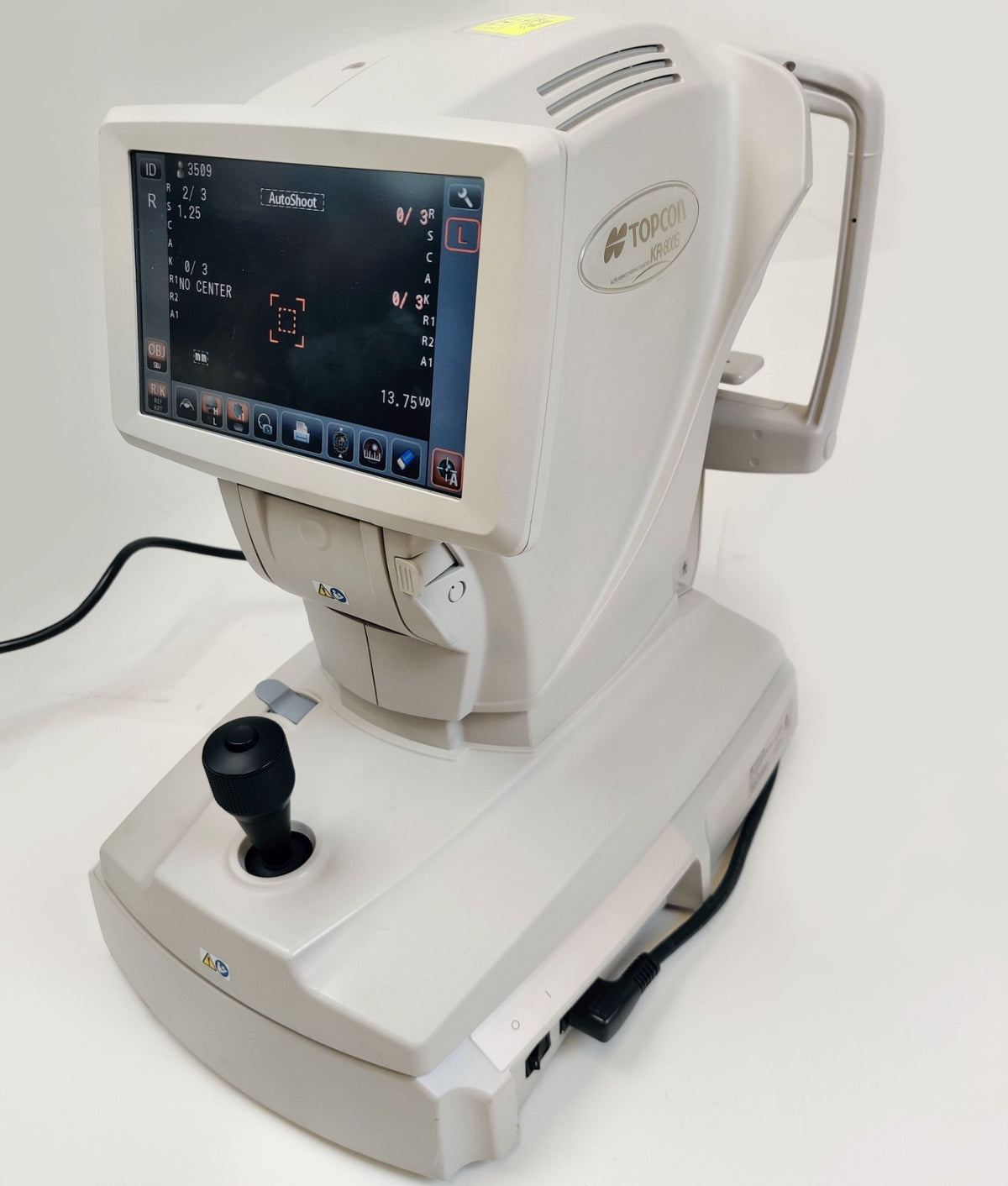

*8.5" Color Touchscreen: Large color touchscreen interface with intuitive controls for measurement and testing functions.

*Objective & Subjective Refraction:** Supports objective REF/KRT measurements and subjective visual acuity testing for both far and near vision.

*Glare Testing: Integrated glare testing function for evaluating visual acuity under glare conditions.

*Contrast Testing: Evaluates visual performance at different contrast levels in addition to standard visual acuity testing.

*Grid Testing: Integrated grid chart testing function.

* Spherical Equivalent / Toric Comparison: Allows comparison between cylinder correction and spherical-equivalent correction.

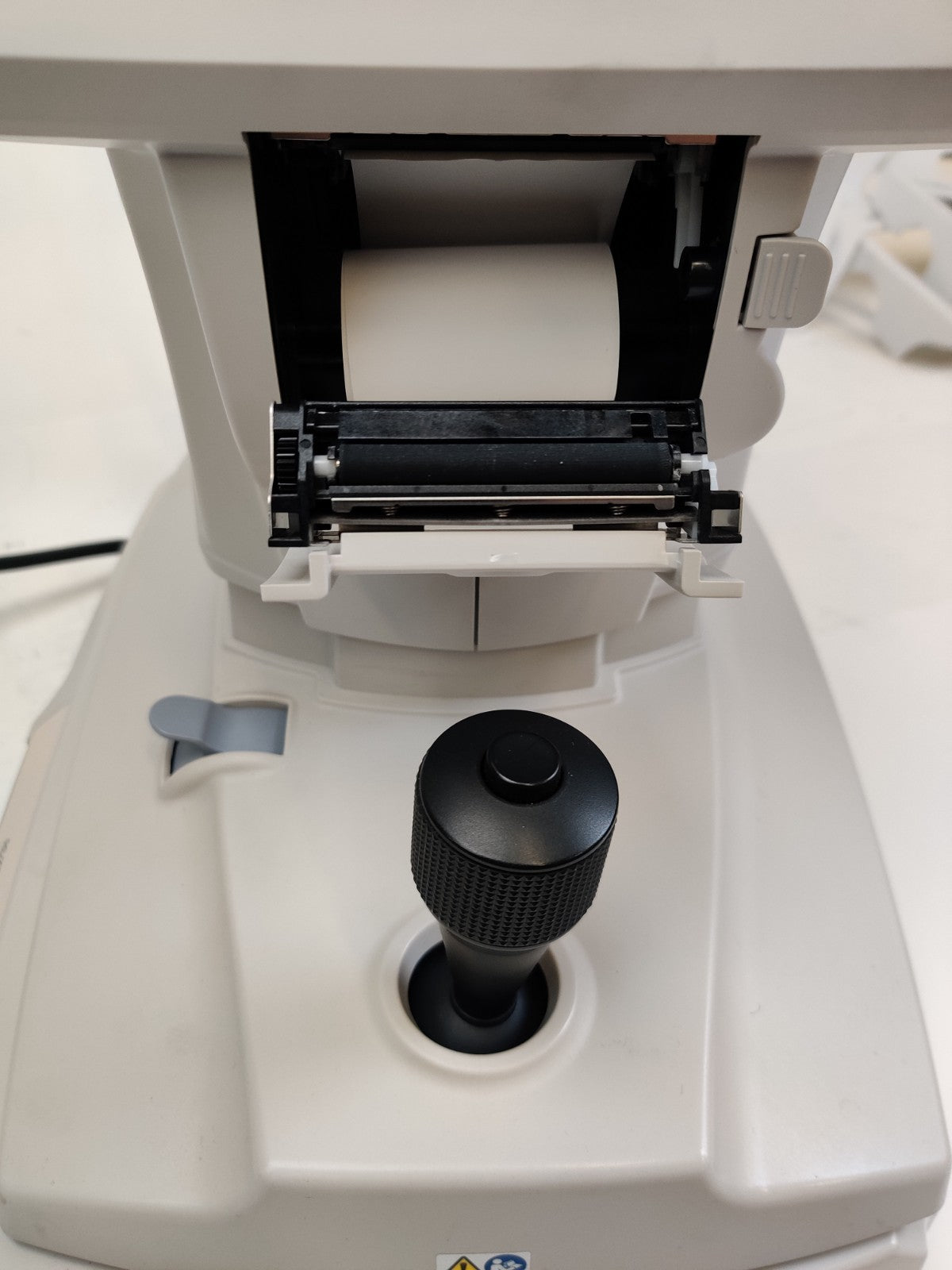

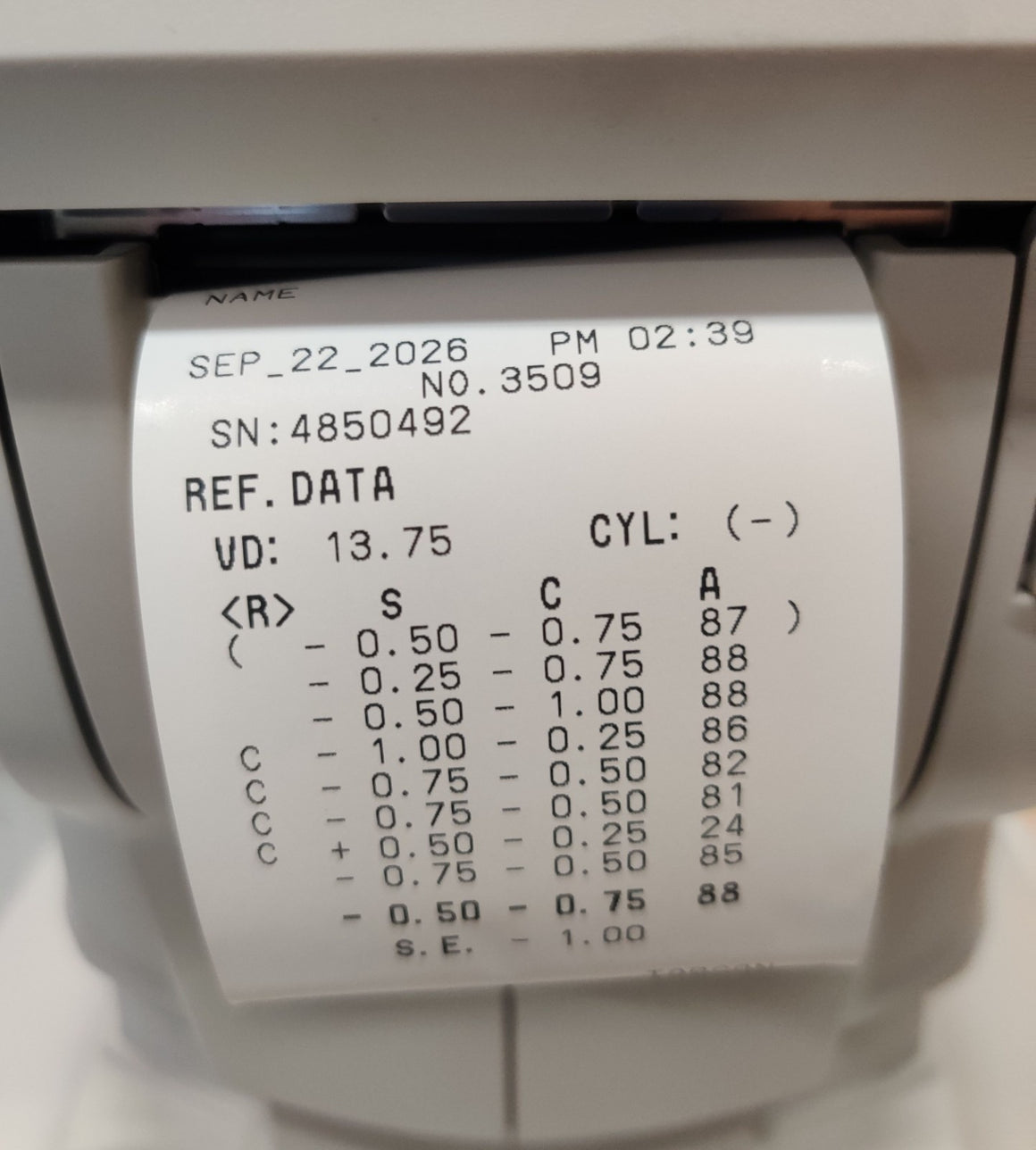

* Integrated Thermal Printer: Built-in easy-load thermal printer for measurement results.

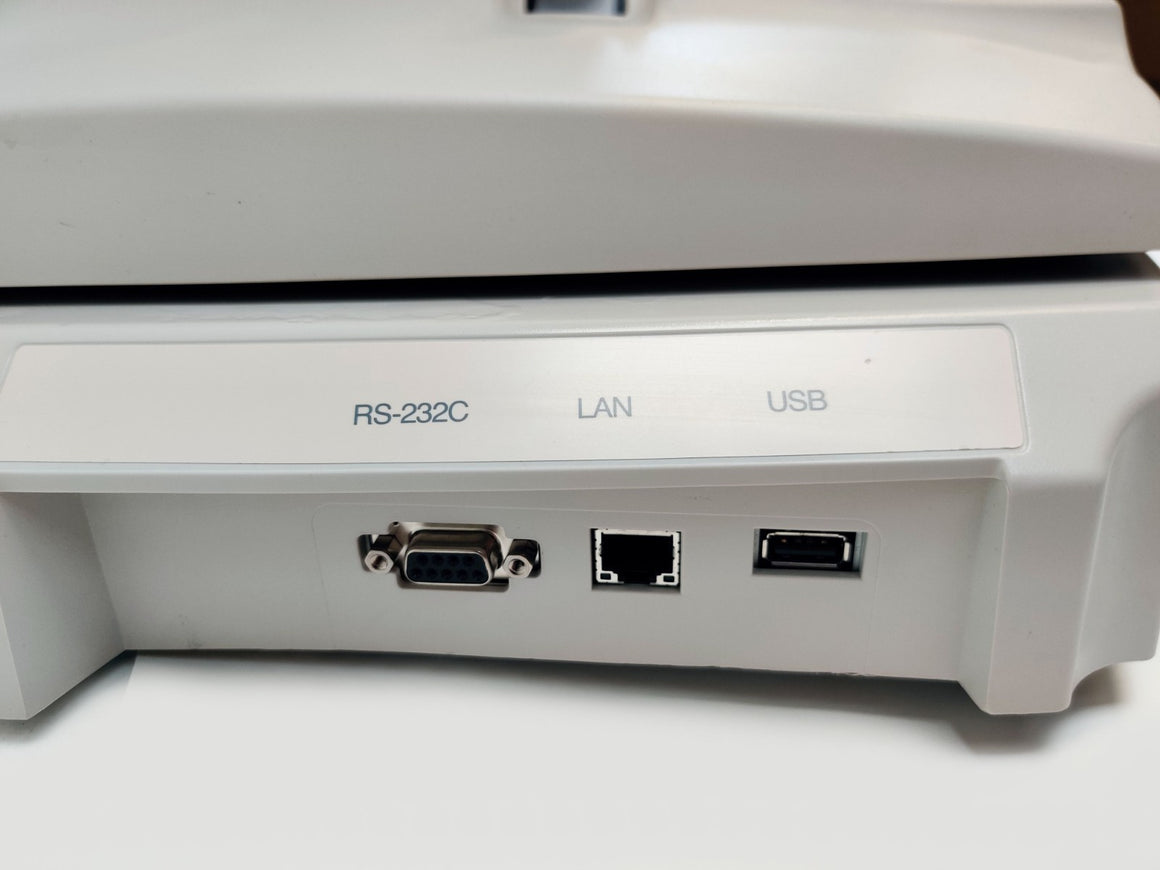

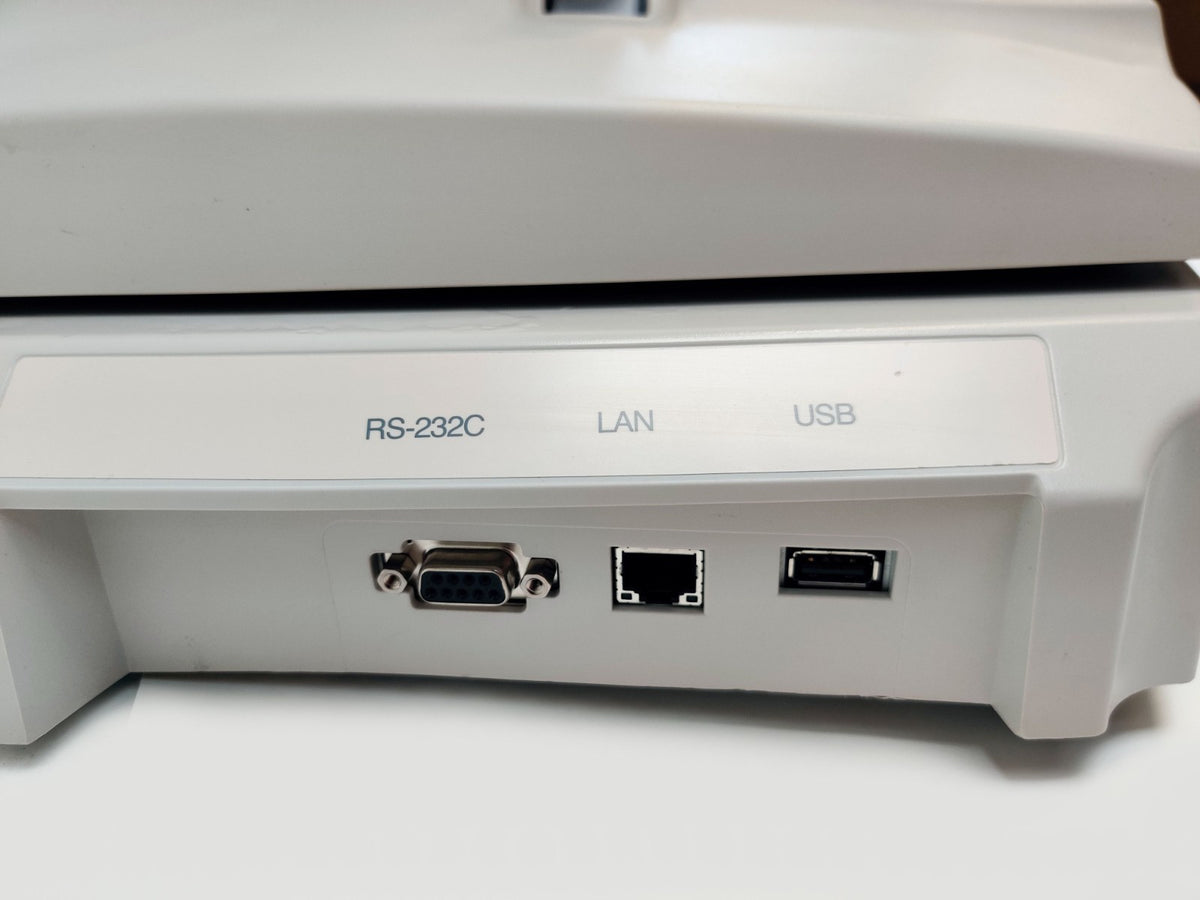

* Connectivity: USB, RS-232C, and LAN interfaces for compatible data communication and system integration.

* Compact Design: Space-efficient design for ophthalmology, optometry, and vision-care environments.


Brand: Topcon
MPN: KR-800S
Model: Auto Kerato-Refractometer

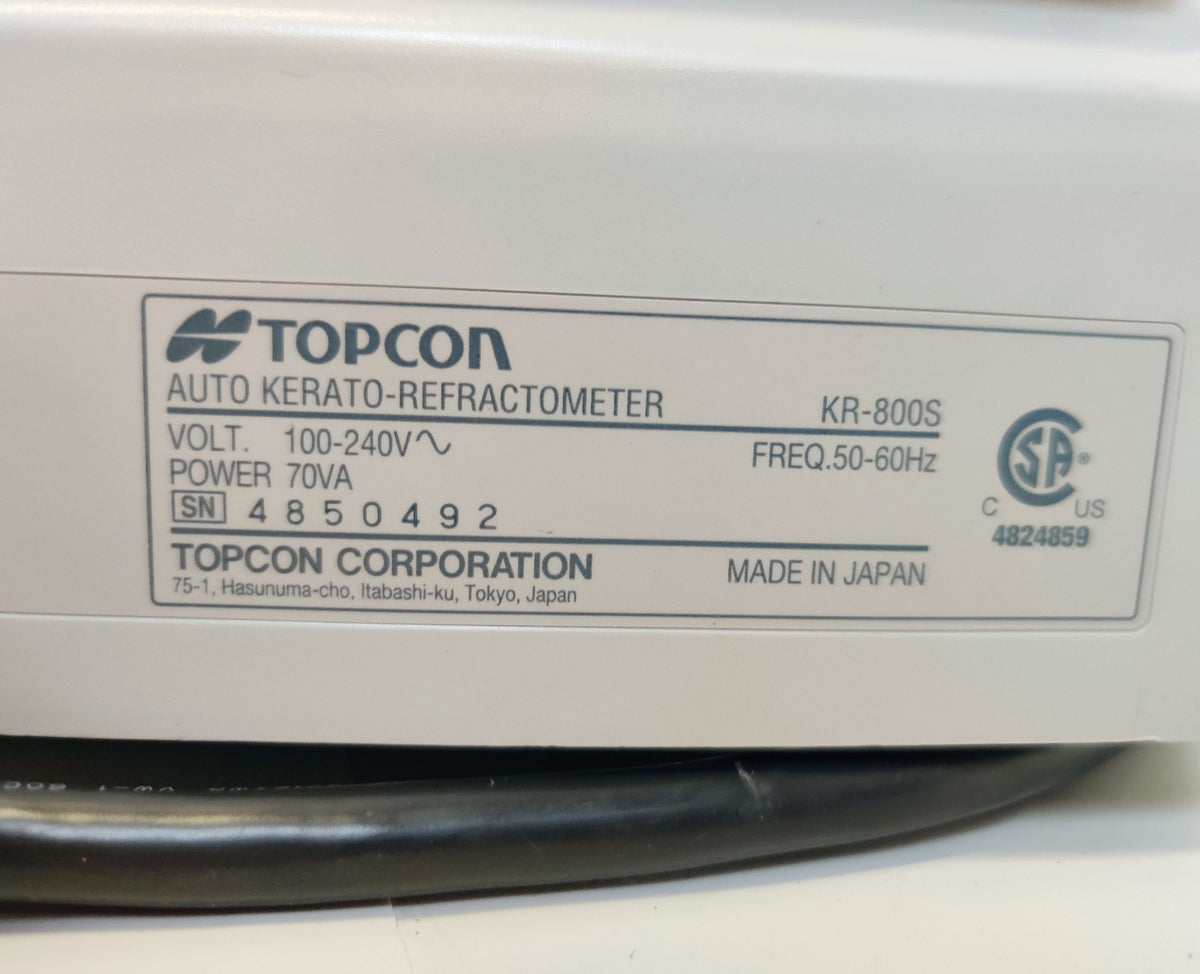

SN: 4850492
Country of Origin: Japan
HS Code: 9018.50.0000

Used

Used, tested. The Topcon KR-800S powers on successfully and completes startup. Functions were tested, and measurements were successfully obtained. The touchscreen, joystick controls, and built-in thermal printer were also tested and responded properly.

40lbs
