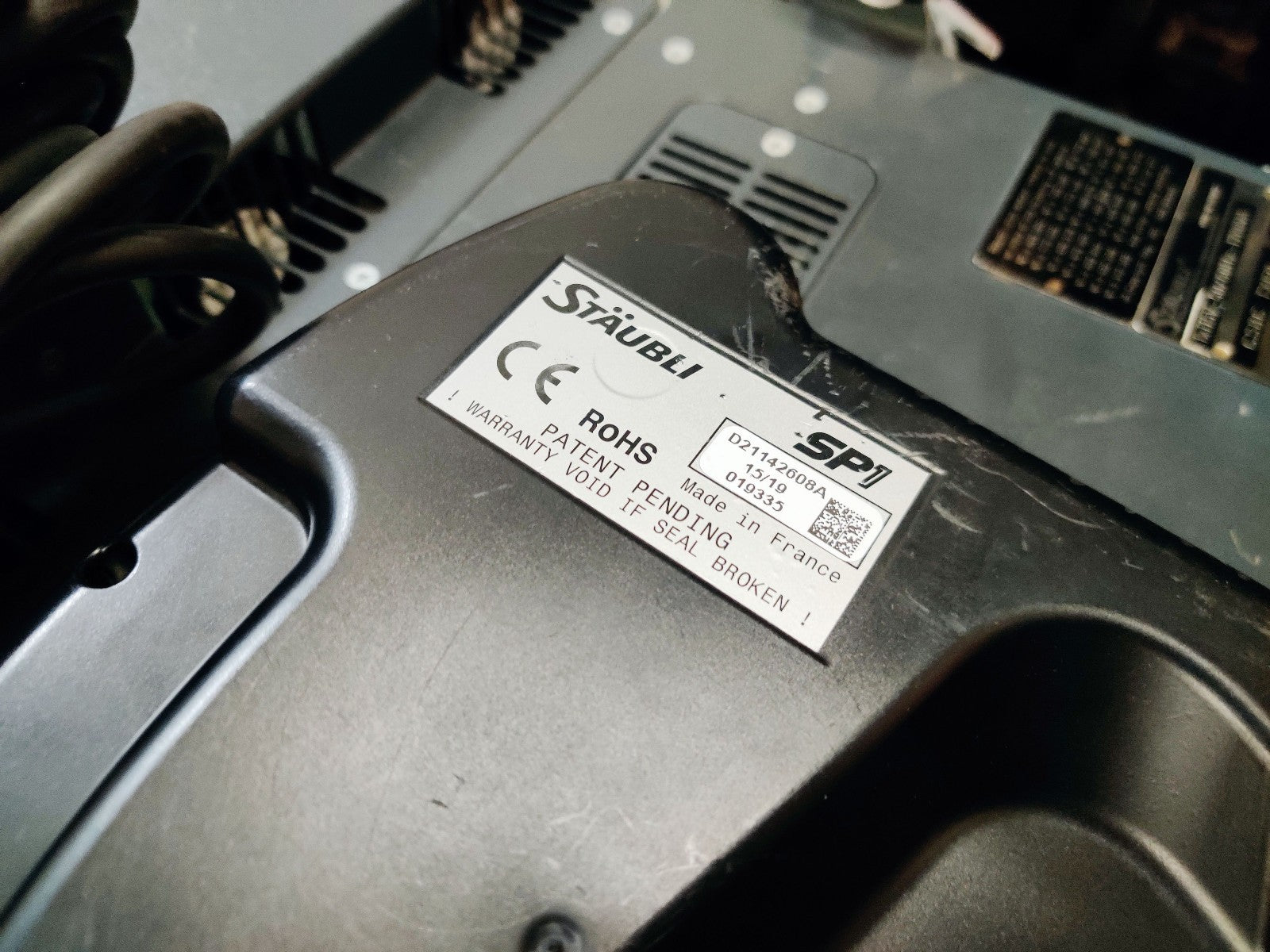

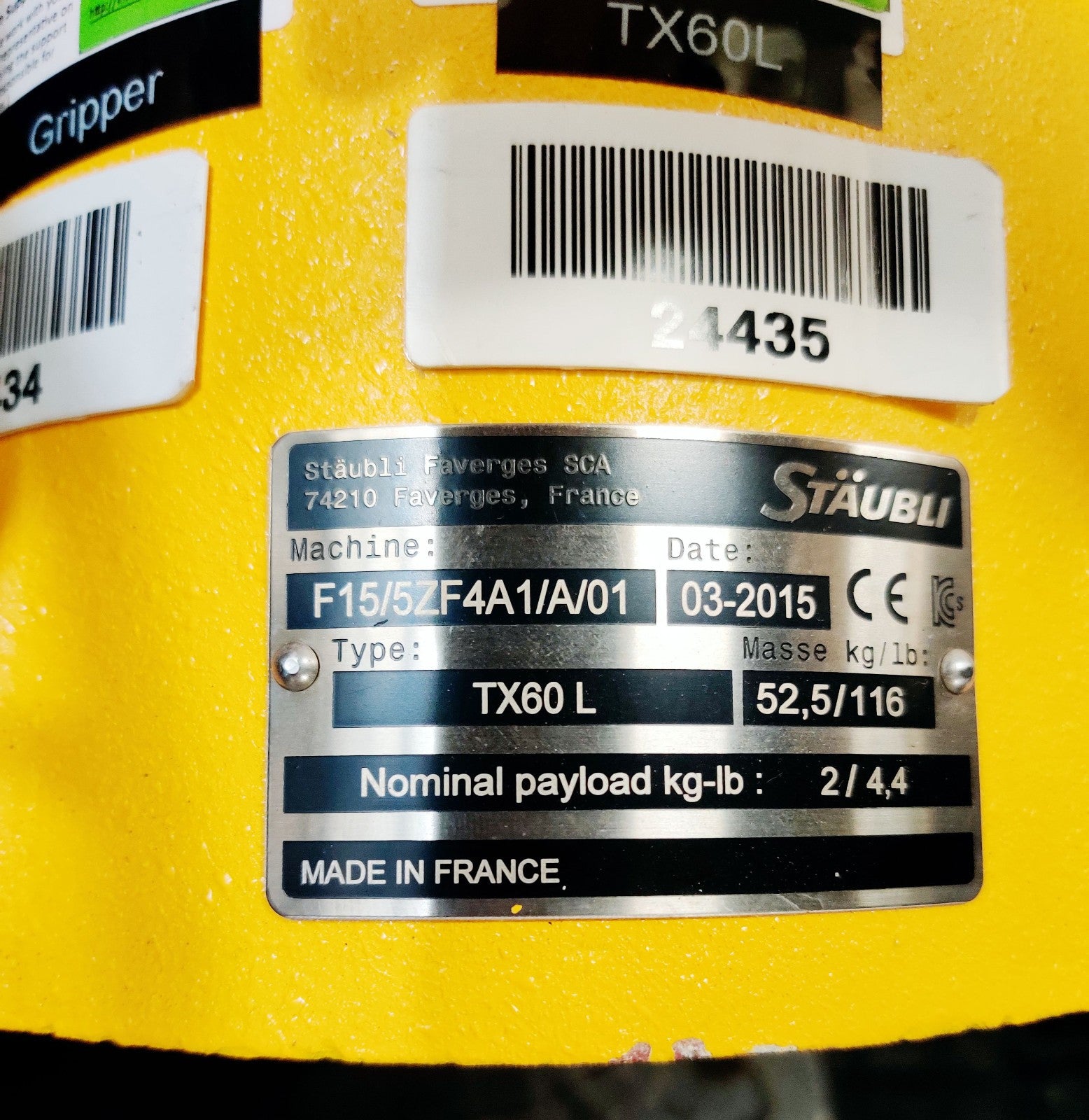

Staubli TX60 L 6-Axis Robot Arm 2 kg w/ CS8C Controller SP1 Teach Pendant Cables

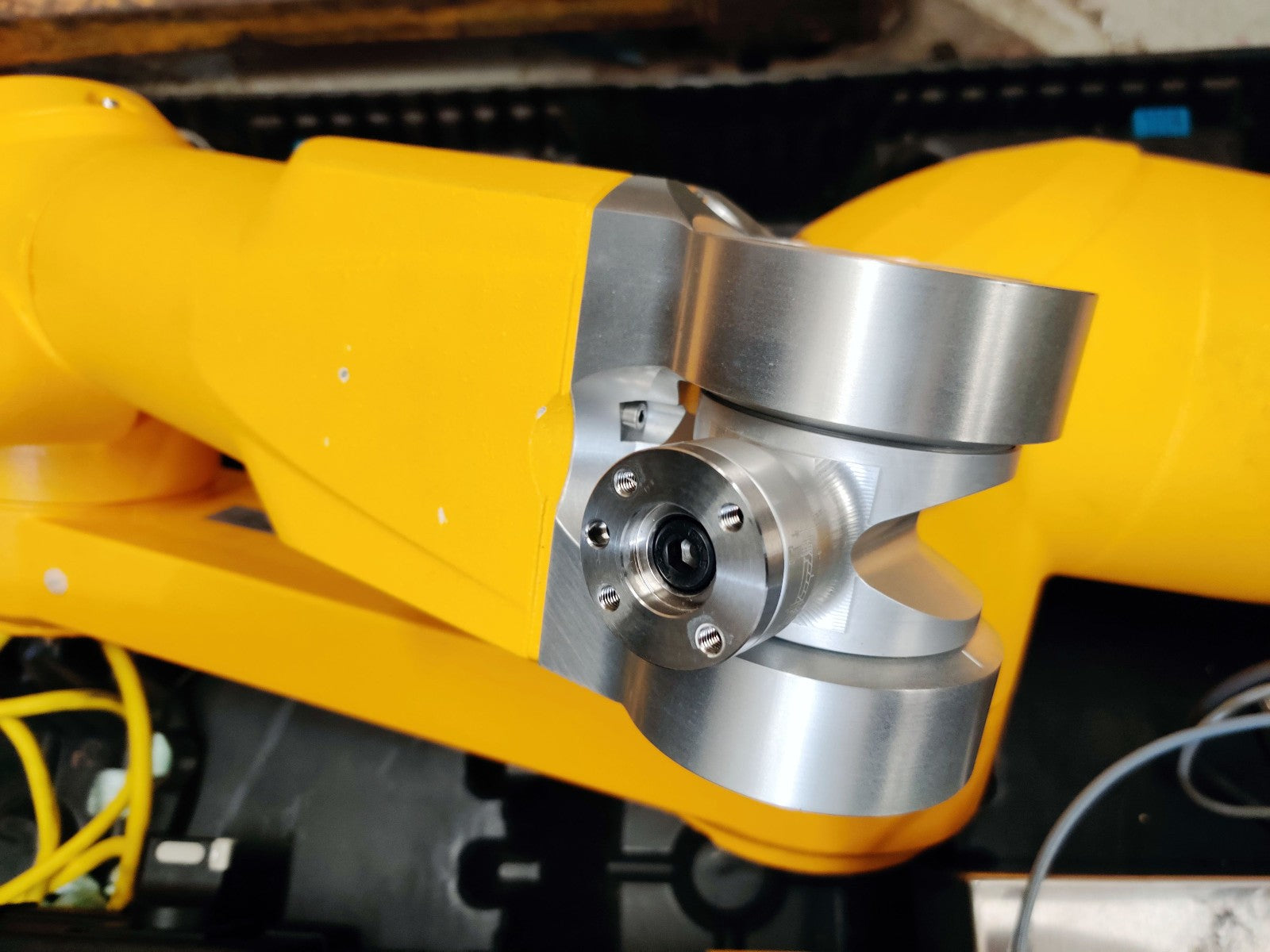

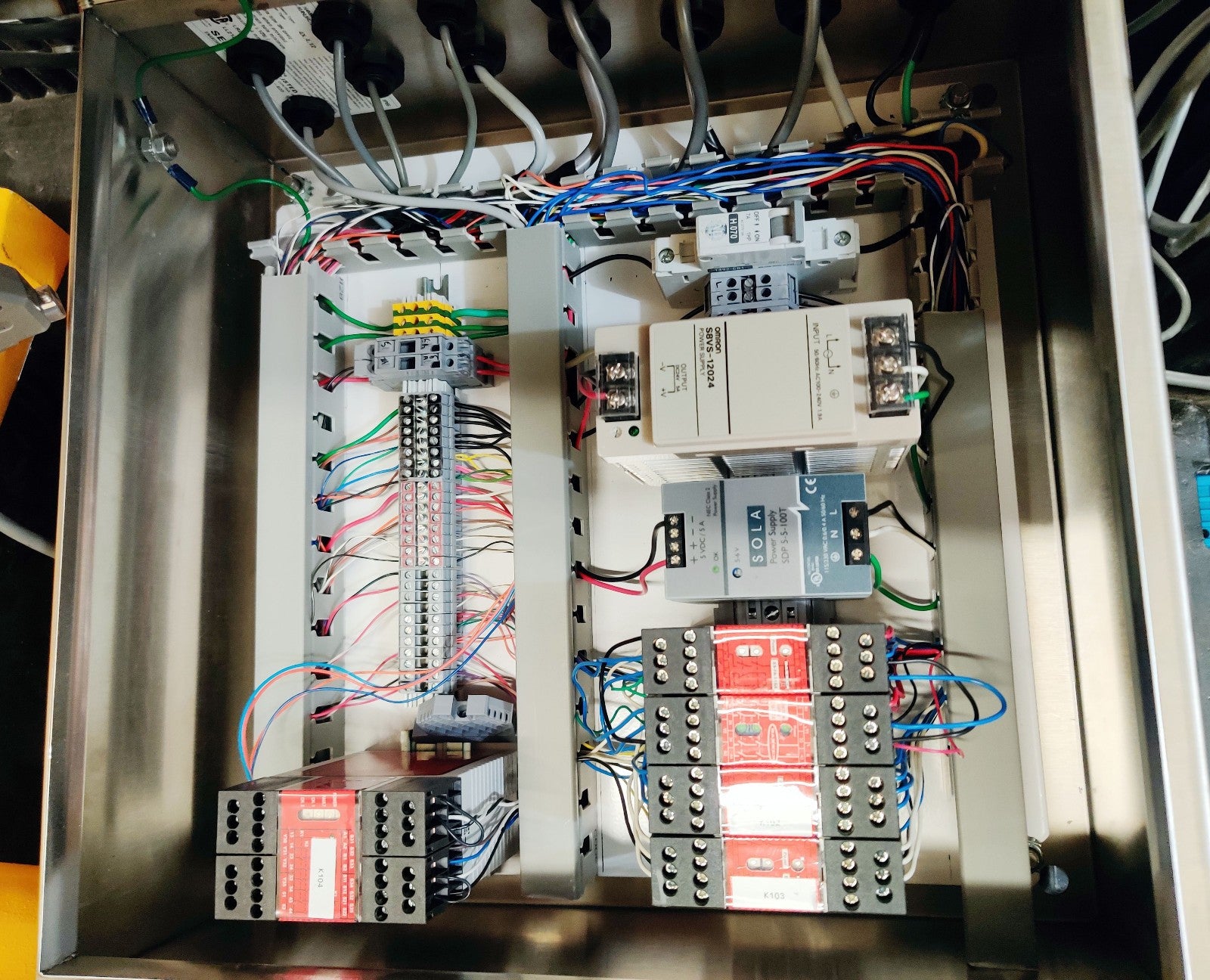

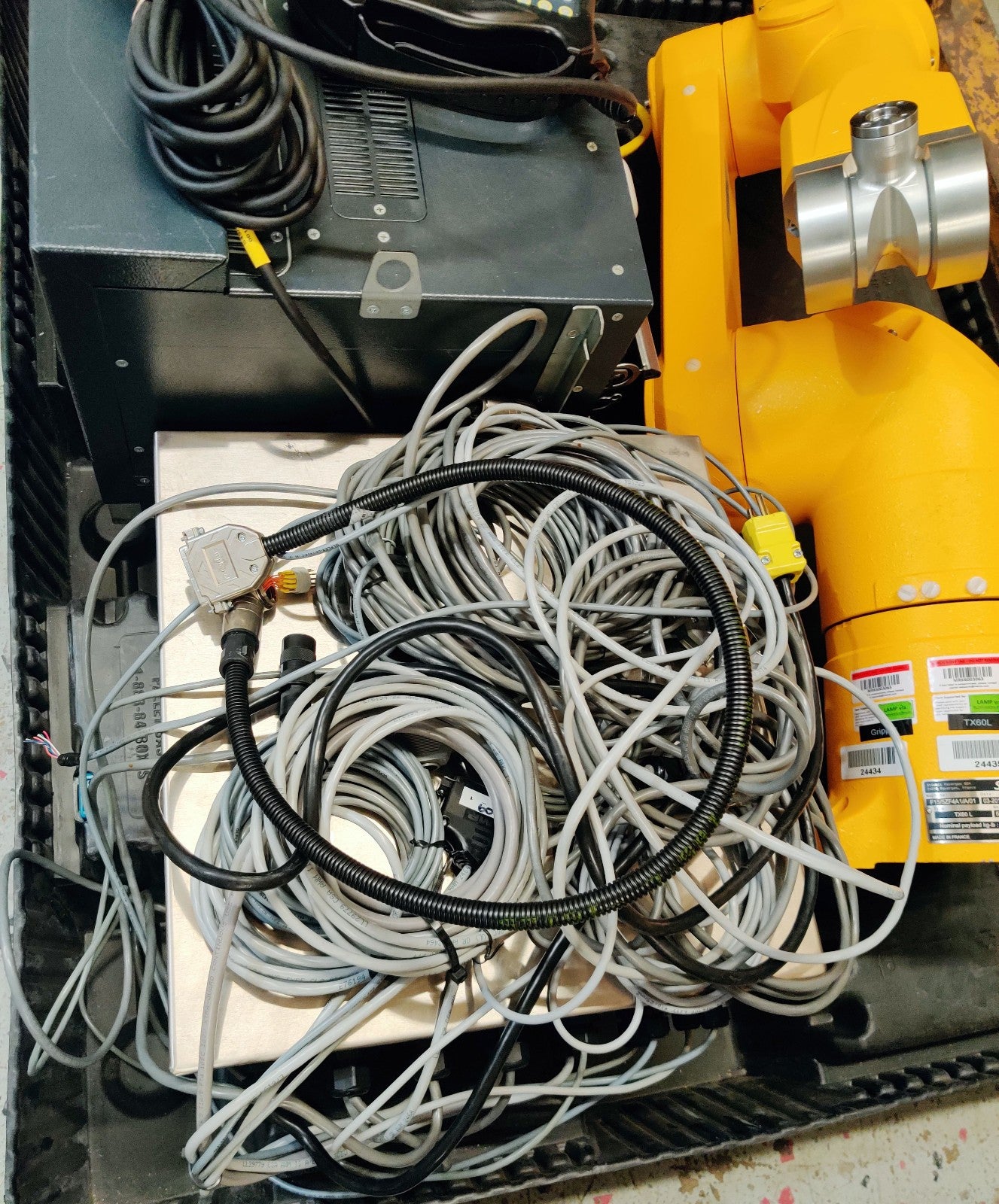

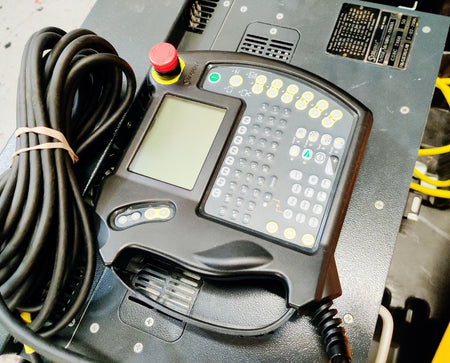

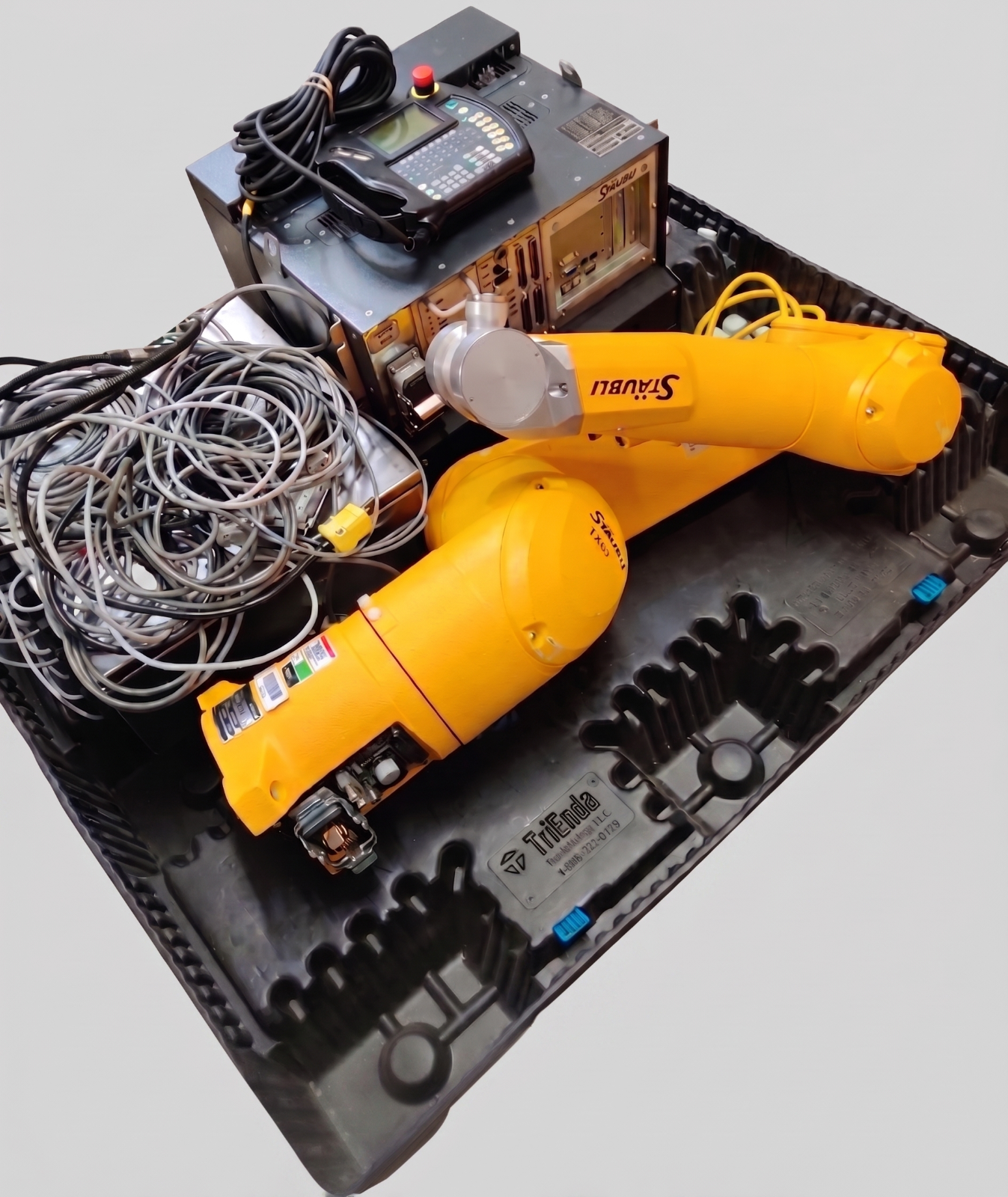

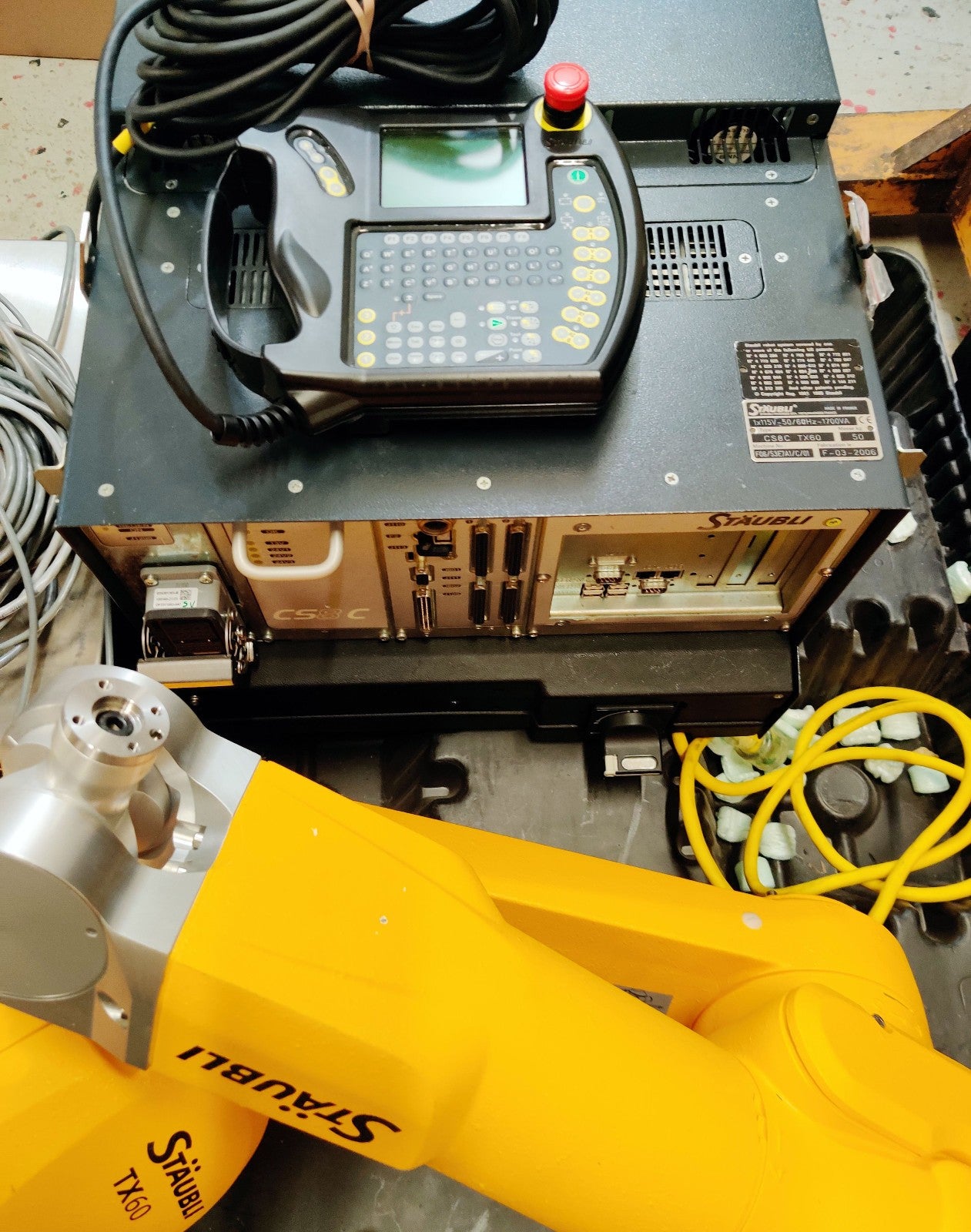

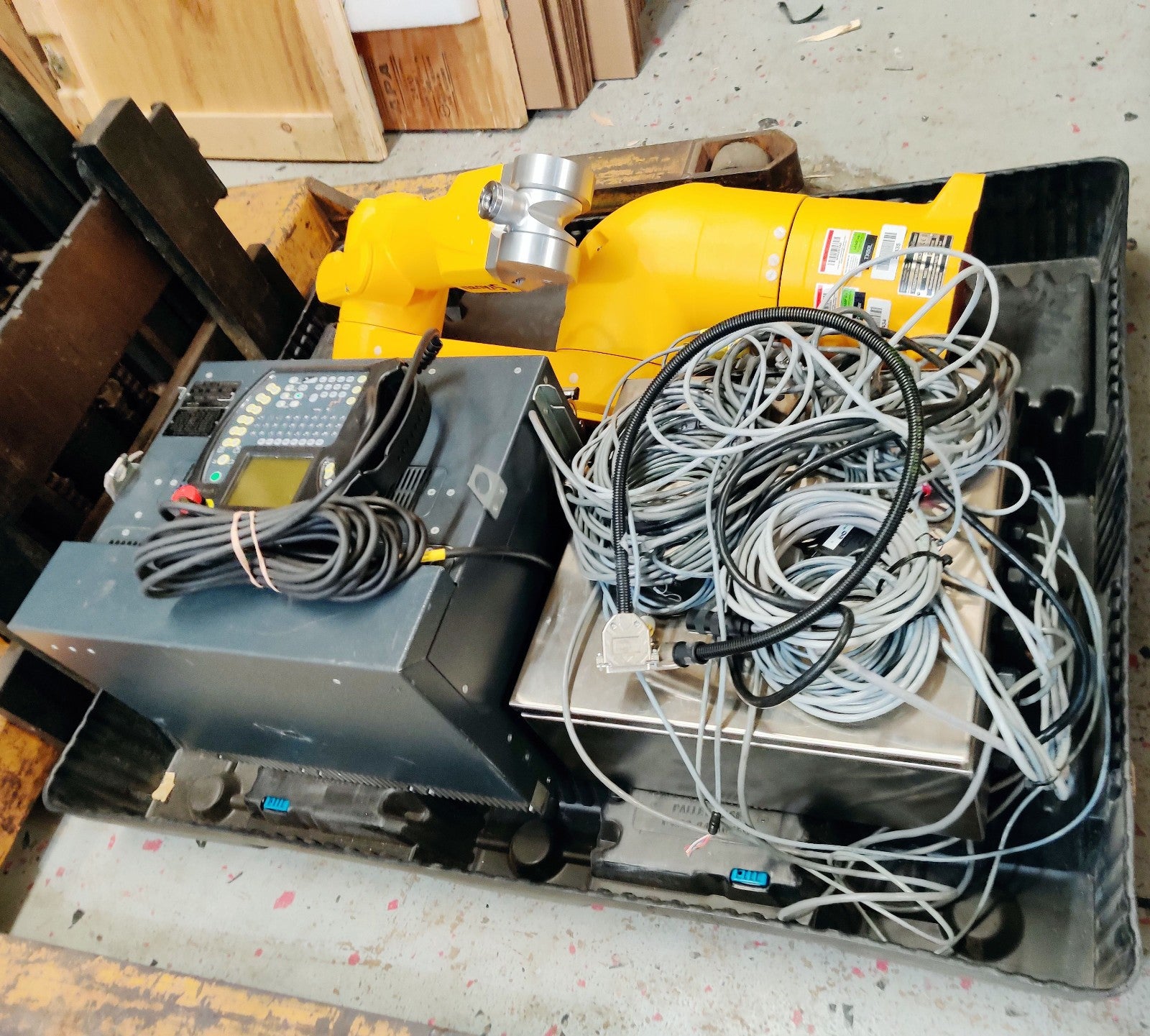

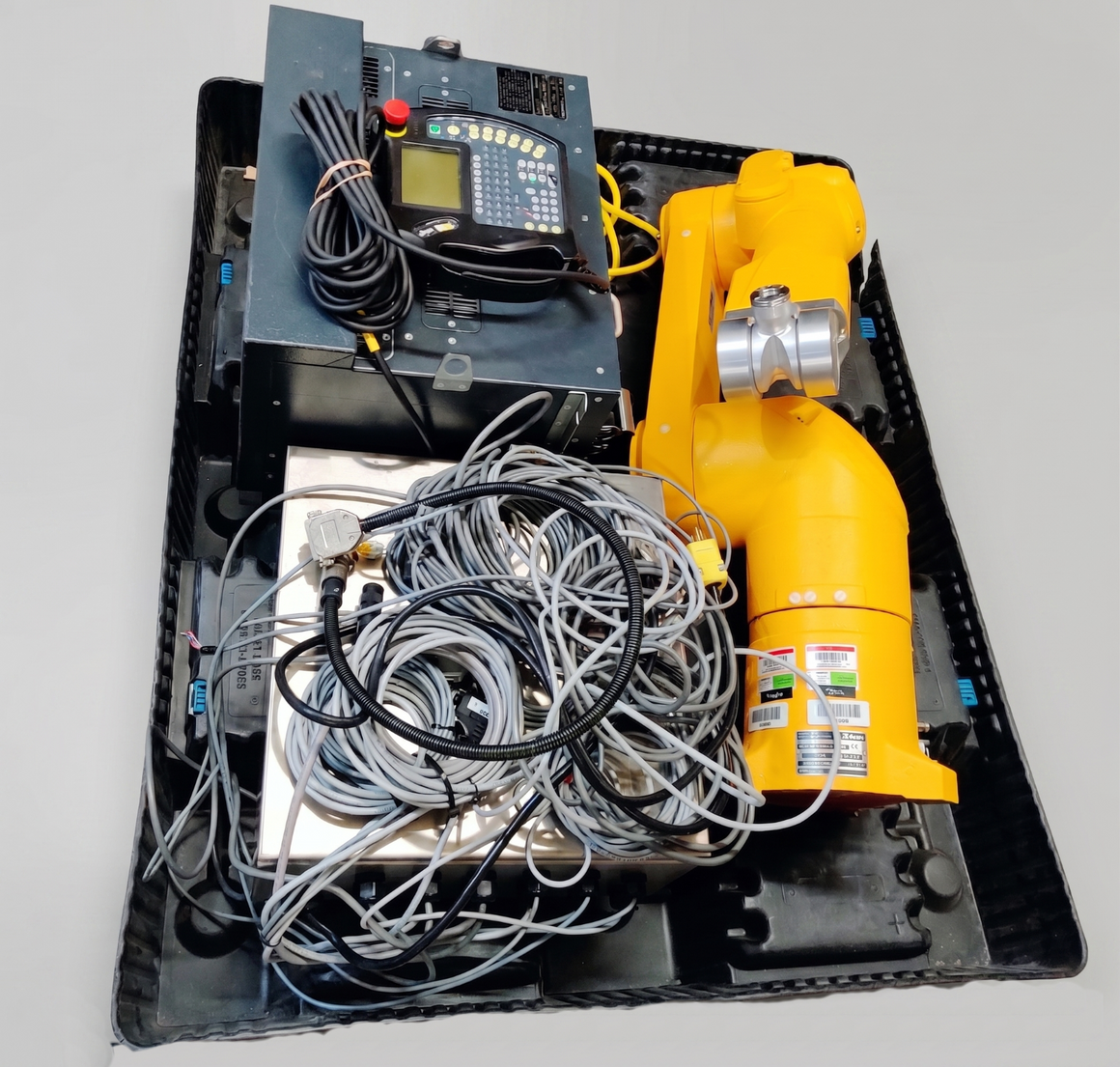

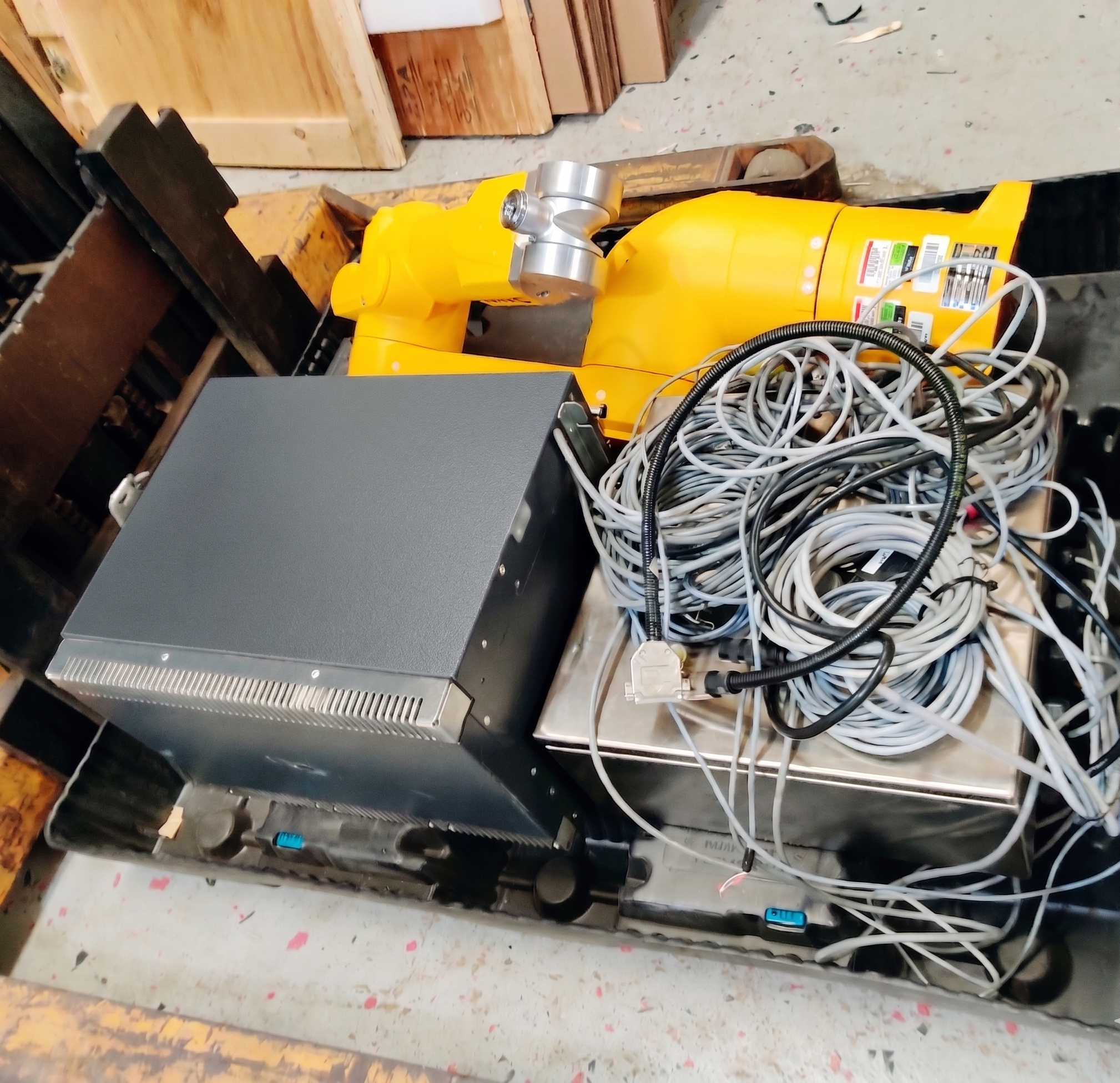

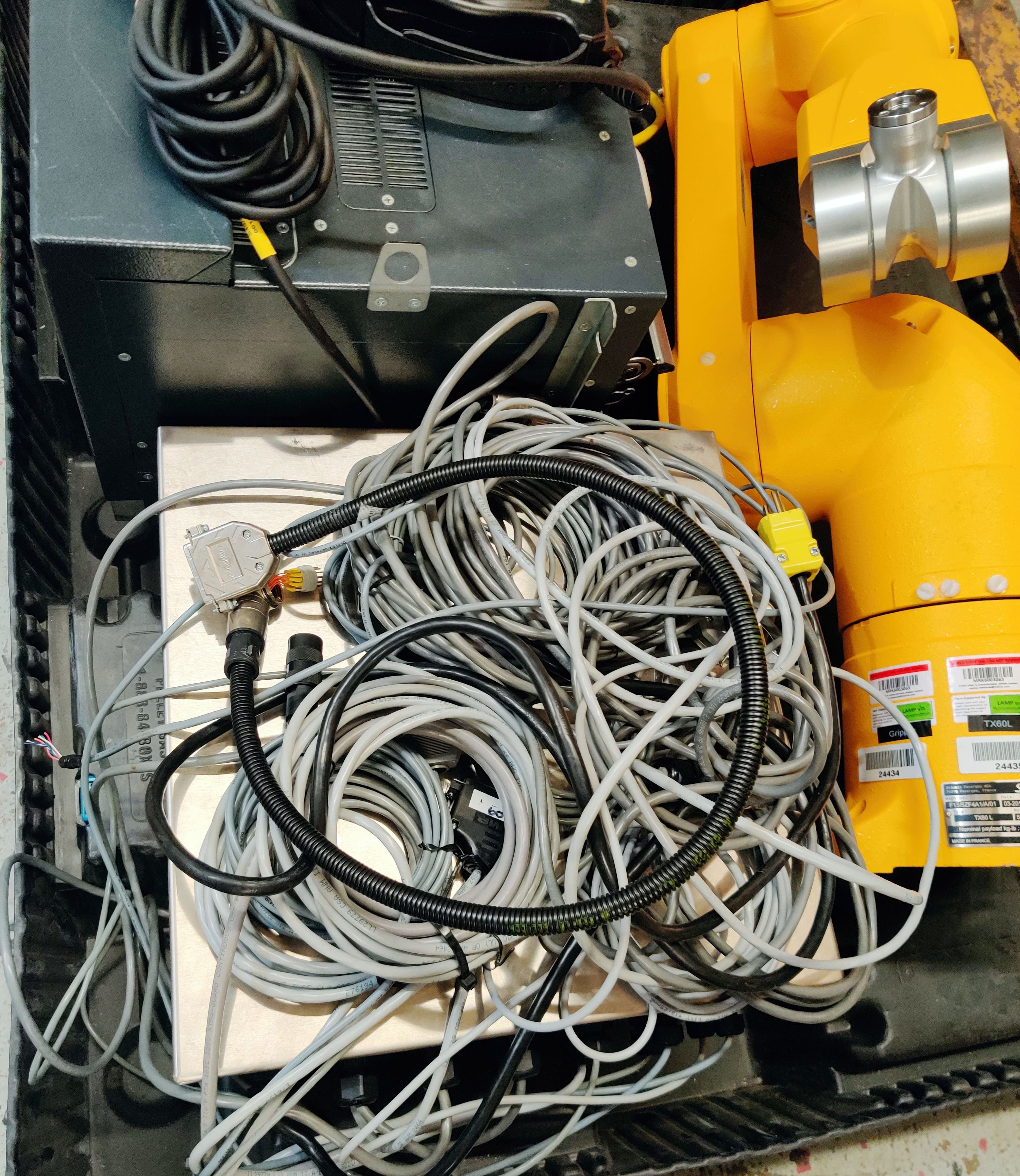

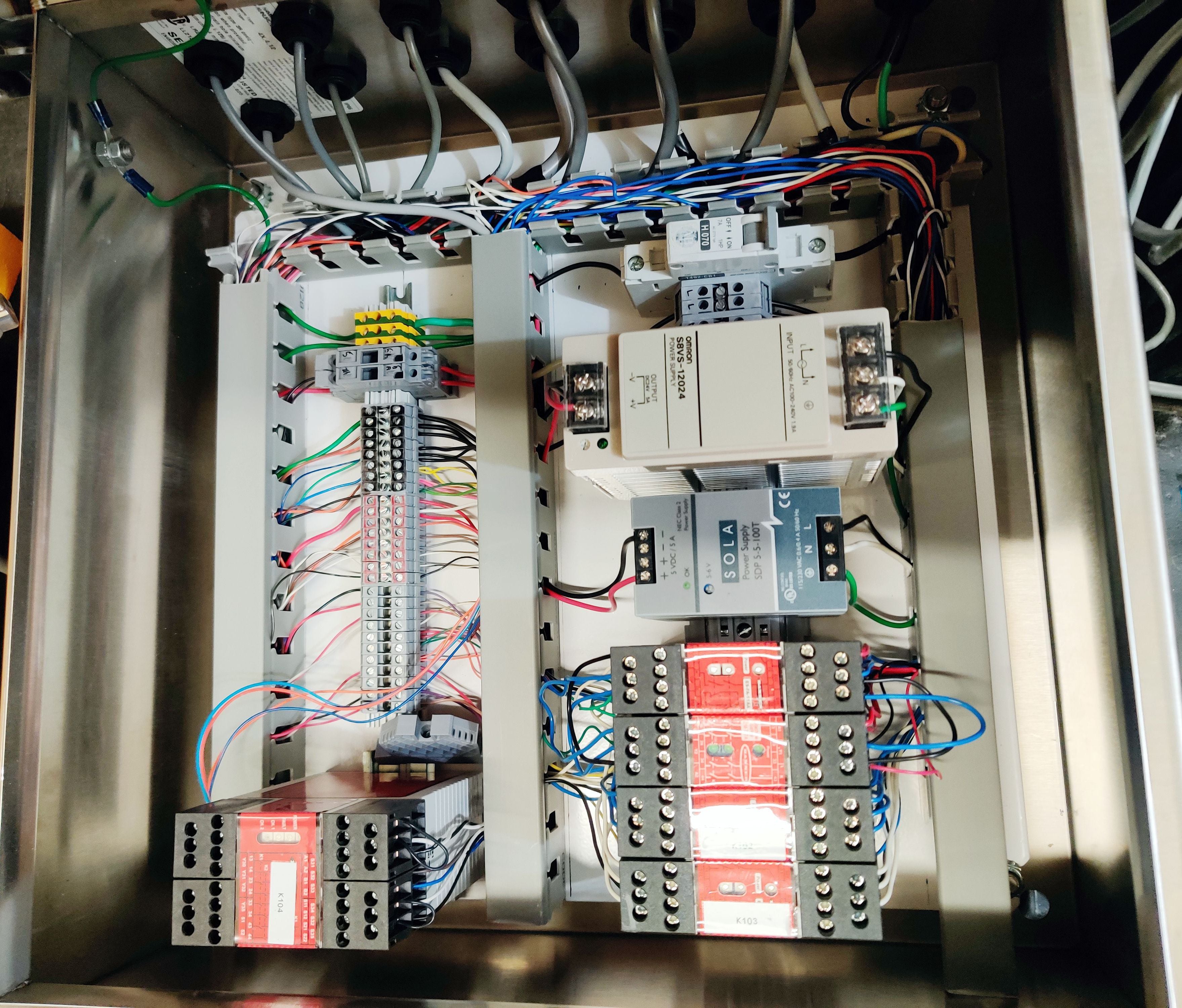

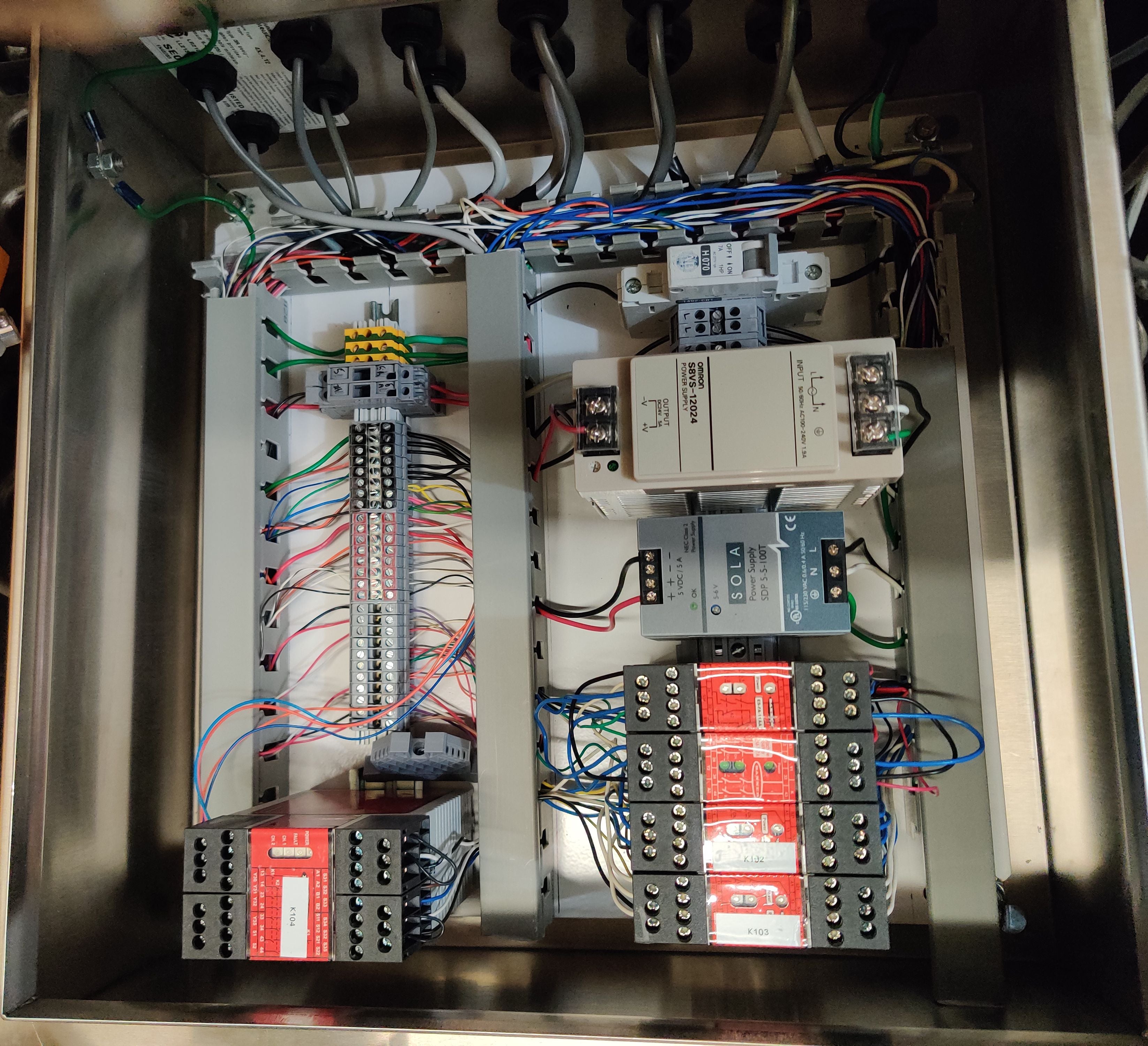

Staubli TX60-L 6-Axis Robot Arm 2 kg with CS8C Controller, Teach Pendant, Power Box Module and Harness Cable

Used, working, dedicated controller is in excellent functional and cosmetic condition. The system was carefully decommissioned from a professional working environment where it was maintained to high standards. The arm's exterior is remarkably clean, reflecting its history in a controlled setting, and all mechanical joints remain fluid and precise. We are confident in the integrity of this unit and offer a full return policy for your peace of mind. Additionally, we provide expedited shipping to ensure this high-performance asset reaches your facility as quickly as possible. Ready for immediate integration into your next automation project.

- Maximum load: 5 kg
- Nominal load: 2 kg
- Reach (between axis 1 and 6): 920 mm
- Number of degrees of freedom: 6
- Repeatability - ISO 9283: ± 0,03 mm
- Motion Range:
Axis 1 (A): ± 0,03 mm
Axis 2 (B): ± 180°
Axis 3 (C): ± 127,5°
Axis 4 (D): ± 270°
Axis 5 (E): +133,5°/-122,5°
Axis 6 (F): ± 270° (2)
- Work Envelope:
Maximum reach between axis 1 and 5 (R. M): 850 mm
Minimum reach between axis 1 and 5 (R. m1): 209 mm
Minimum reach between axis 2 and 5 (R. m2): 208 mm
Minimum reach between axis 3 and 5 (R. b): 540 mm
- Maximum speed:
Axis 1: 435°/s
Axis 2: 385°/s
Axis 3: 500°/s
Axis 4: 995°/s
Axis 5: 1065°/s
Axis 6: 1445°/s
- Maximum Speed at Load Gravity Center: 10,6 m/s
- Maximum Inertias:
Axis 5: 0,125 kg.m2
Axis 6: 0,032 kg.m2

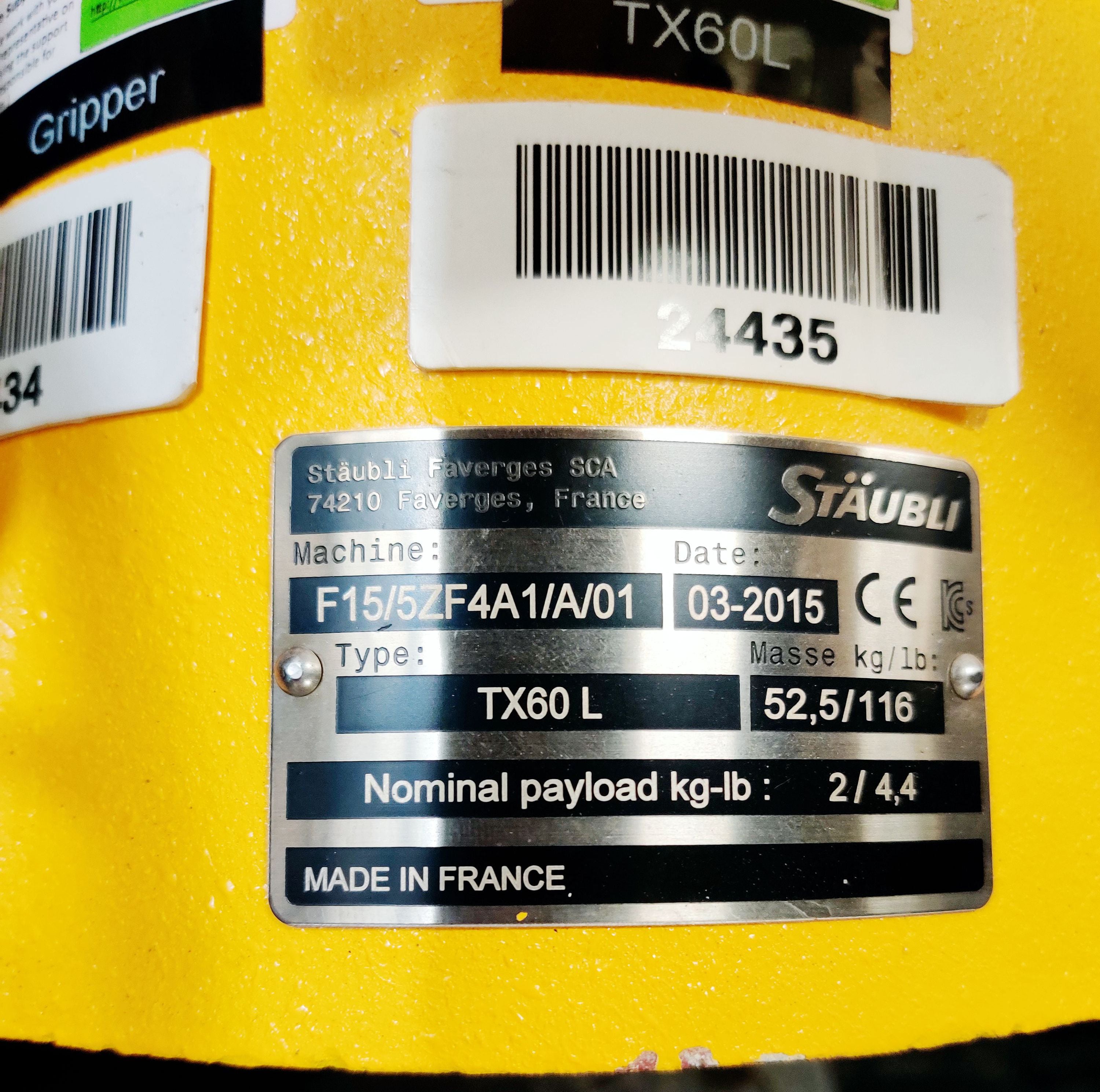

- Weight: 52,5 kg
- Brakes: All axis

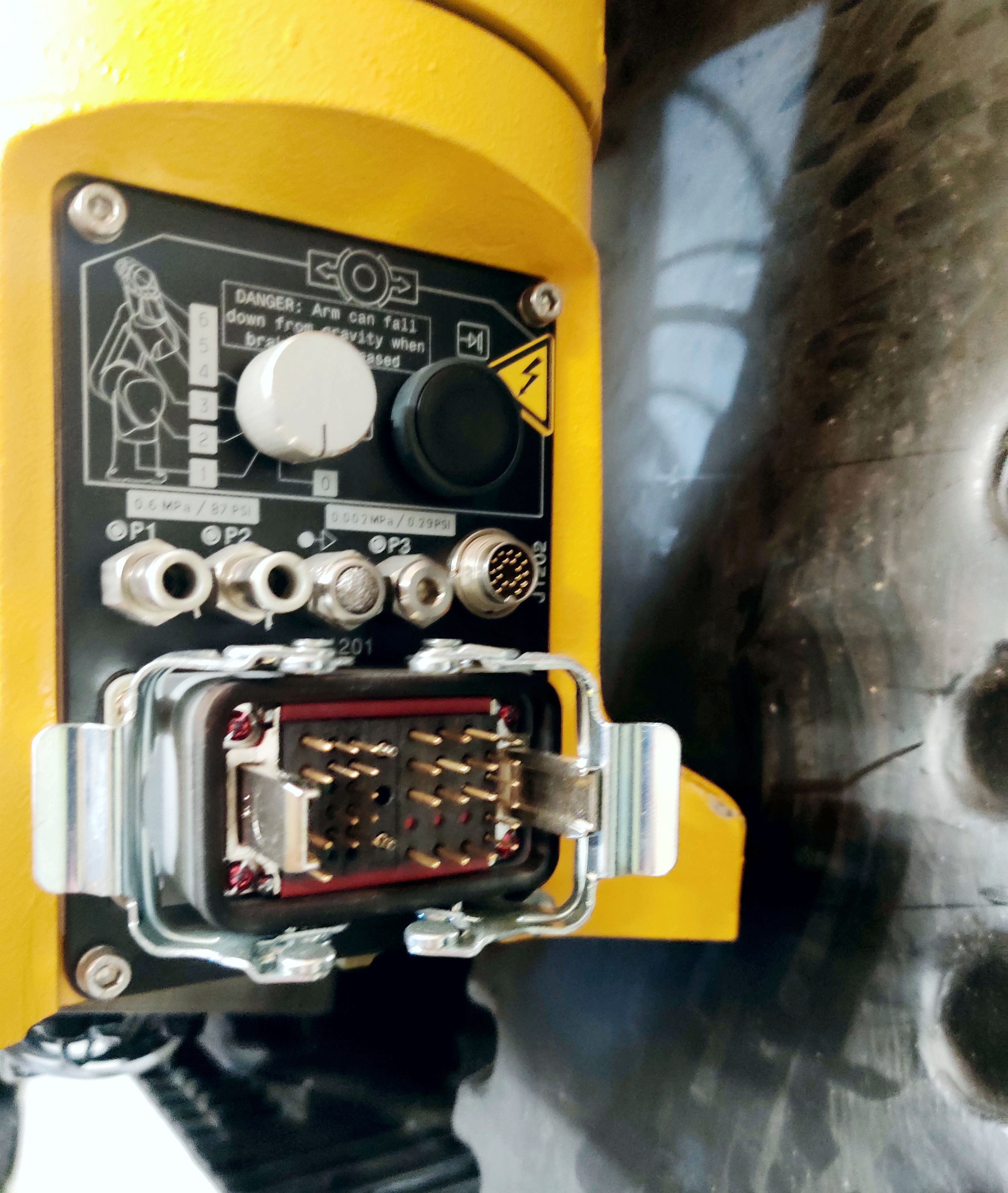

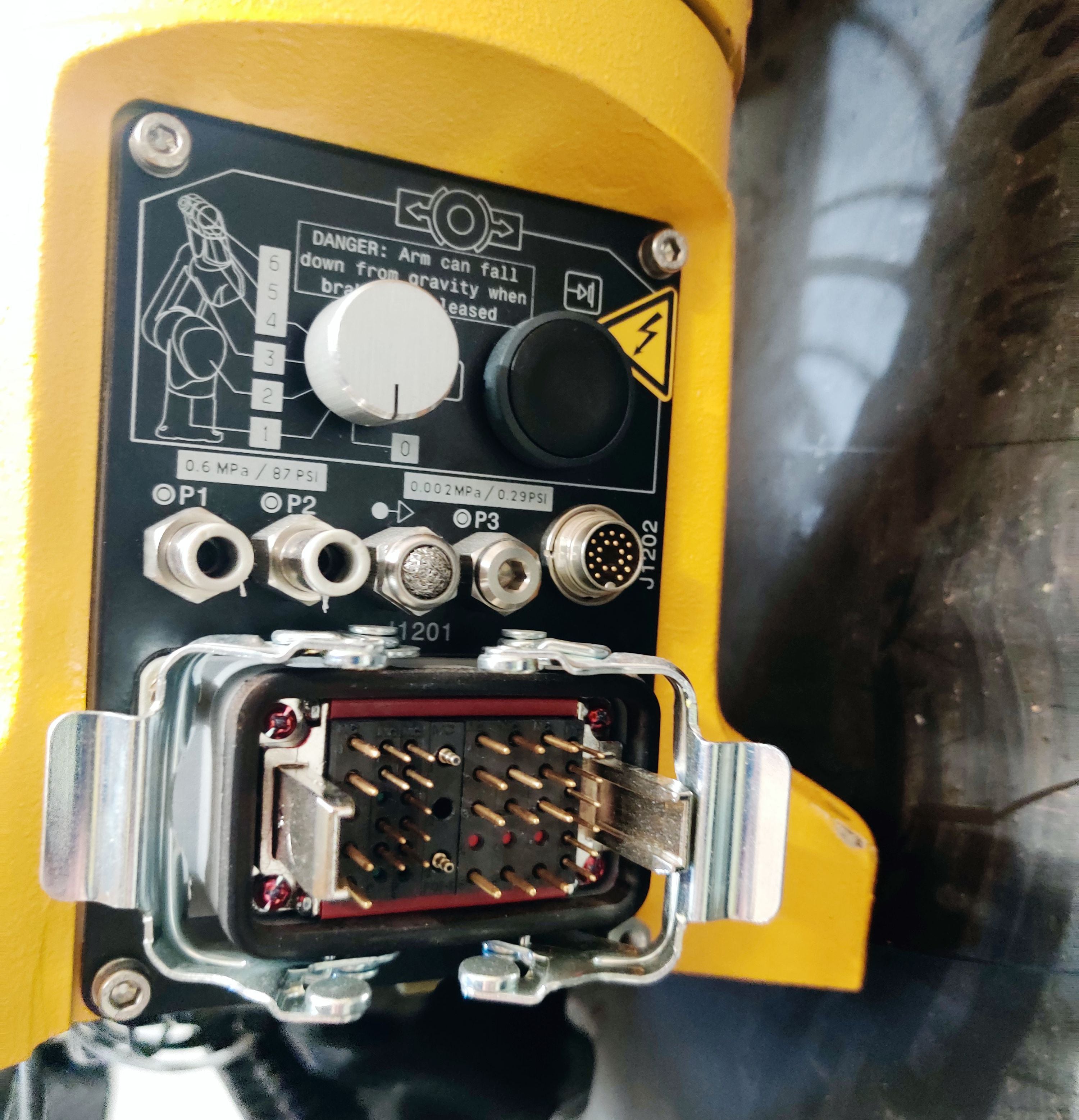

- Foream Connections:
Pneumatic: 2 solenoid valves 5/2-way monostable, 1 direct line between the base and the forearm
Electrical: 1 female 19-contact socket (8 twisted pairs including 2 shielded)
- Cleanroom standard - ISO 14644-1: 5
- Protection class (*wrist) according to standard NF EN 60529: IP65 (*67)

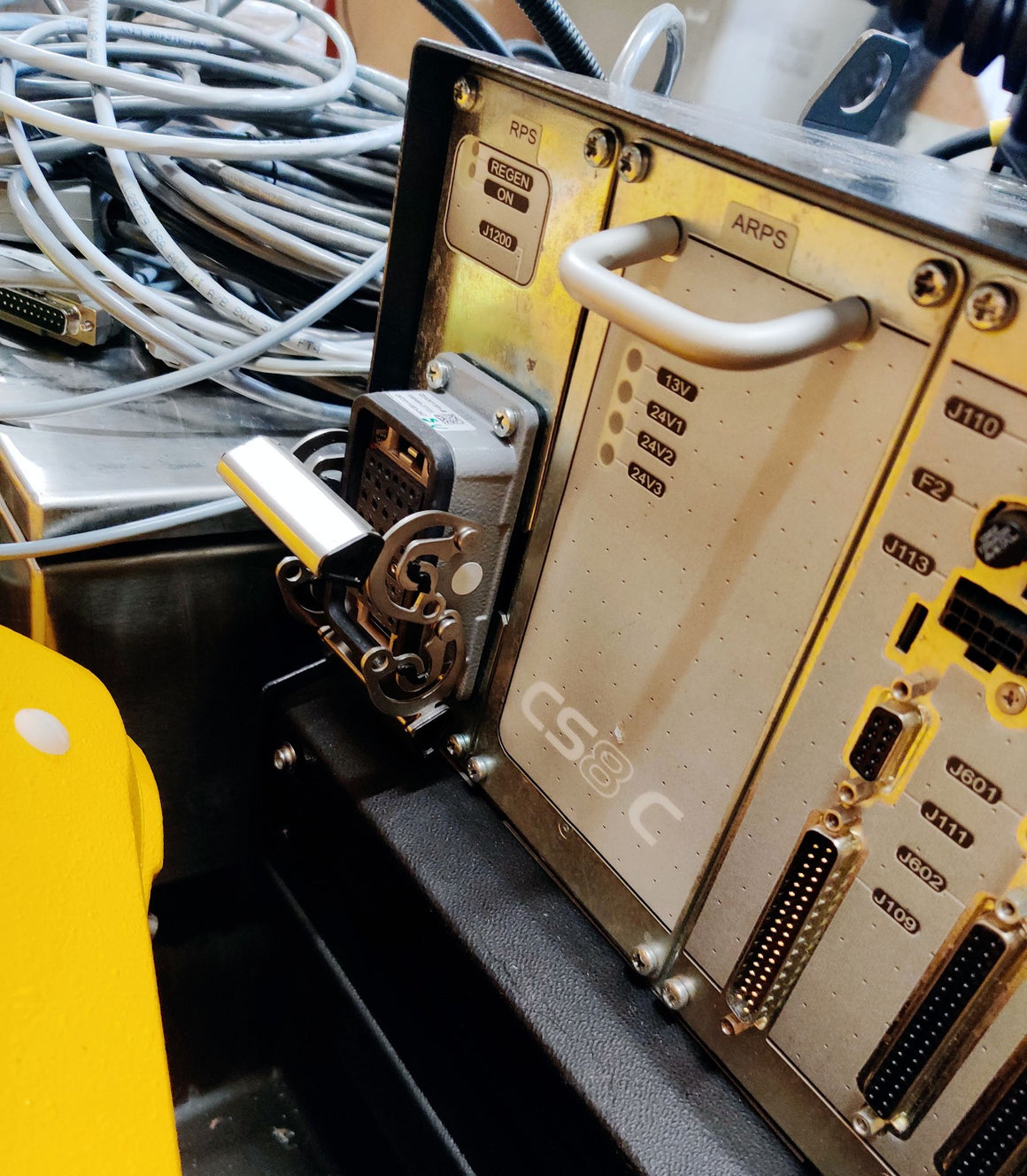

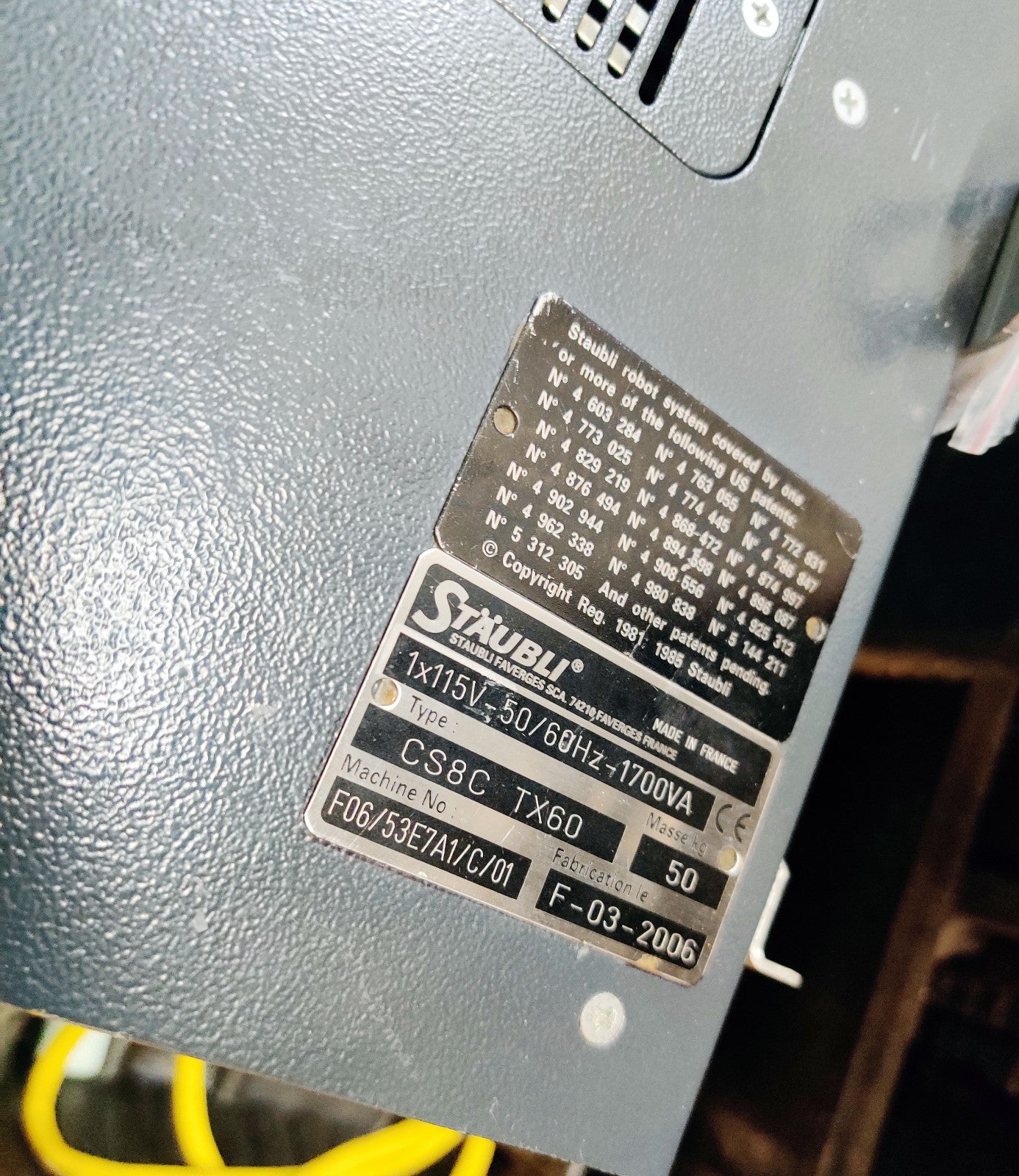

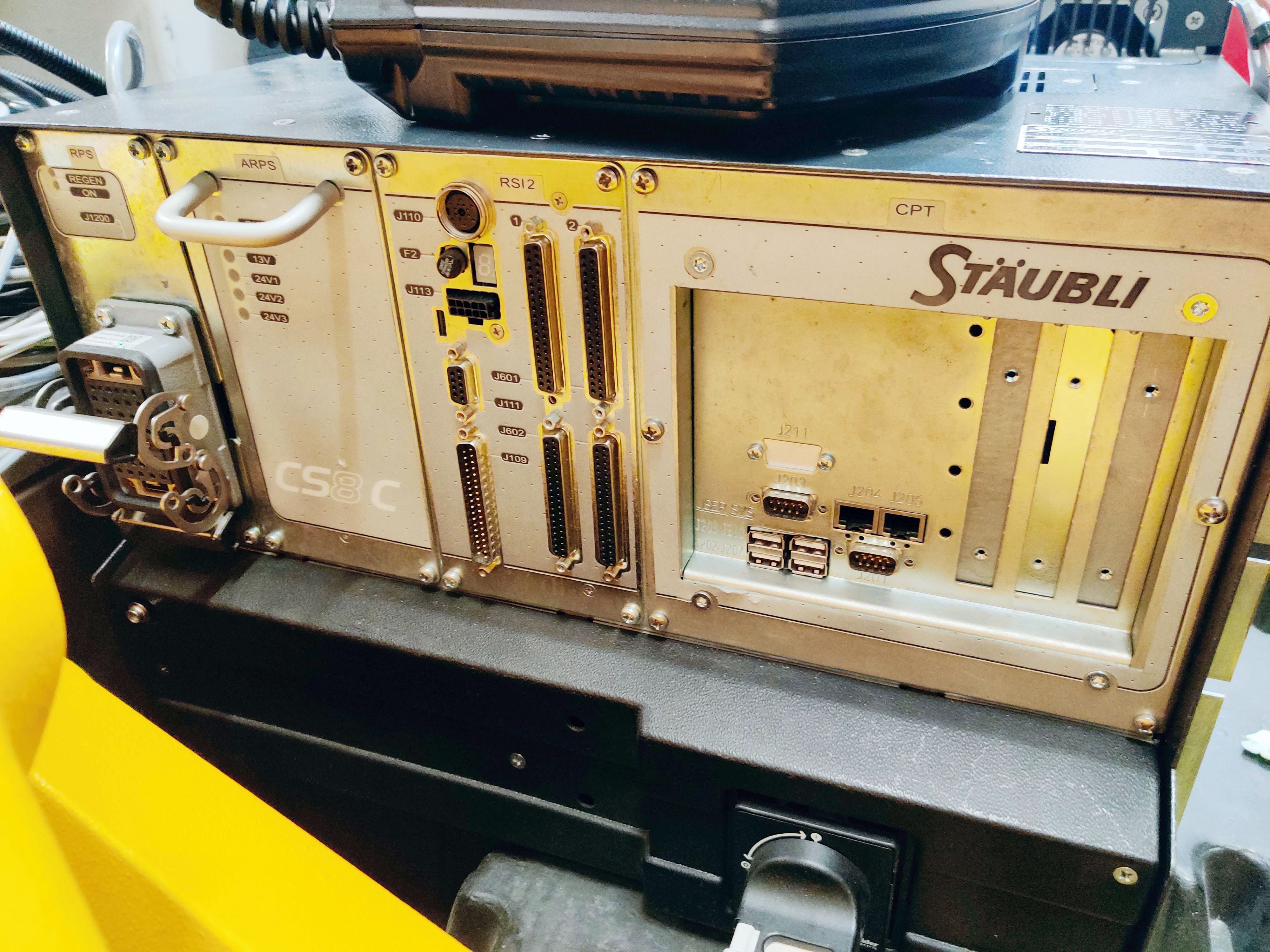

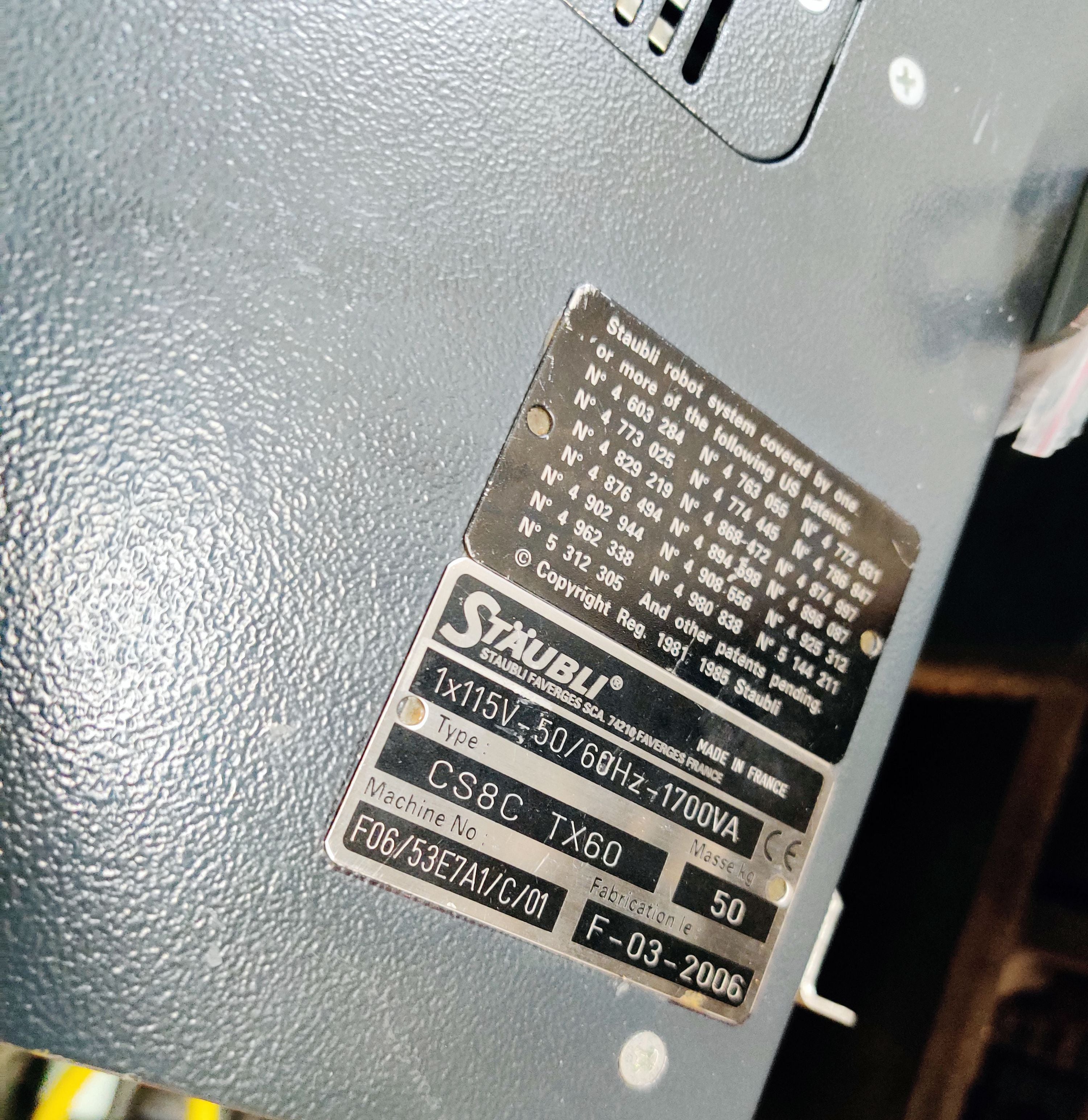

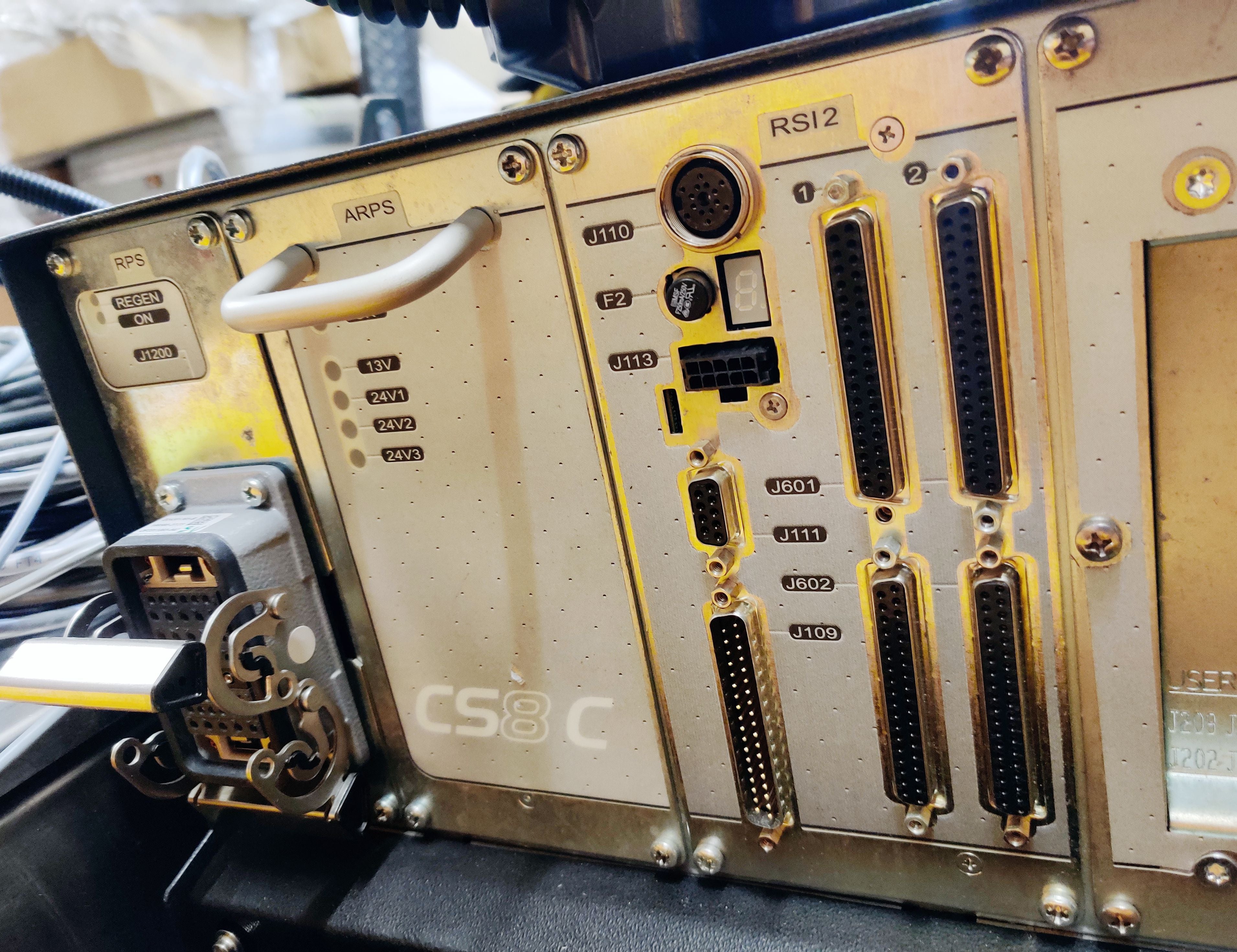

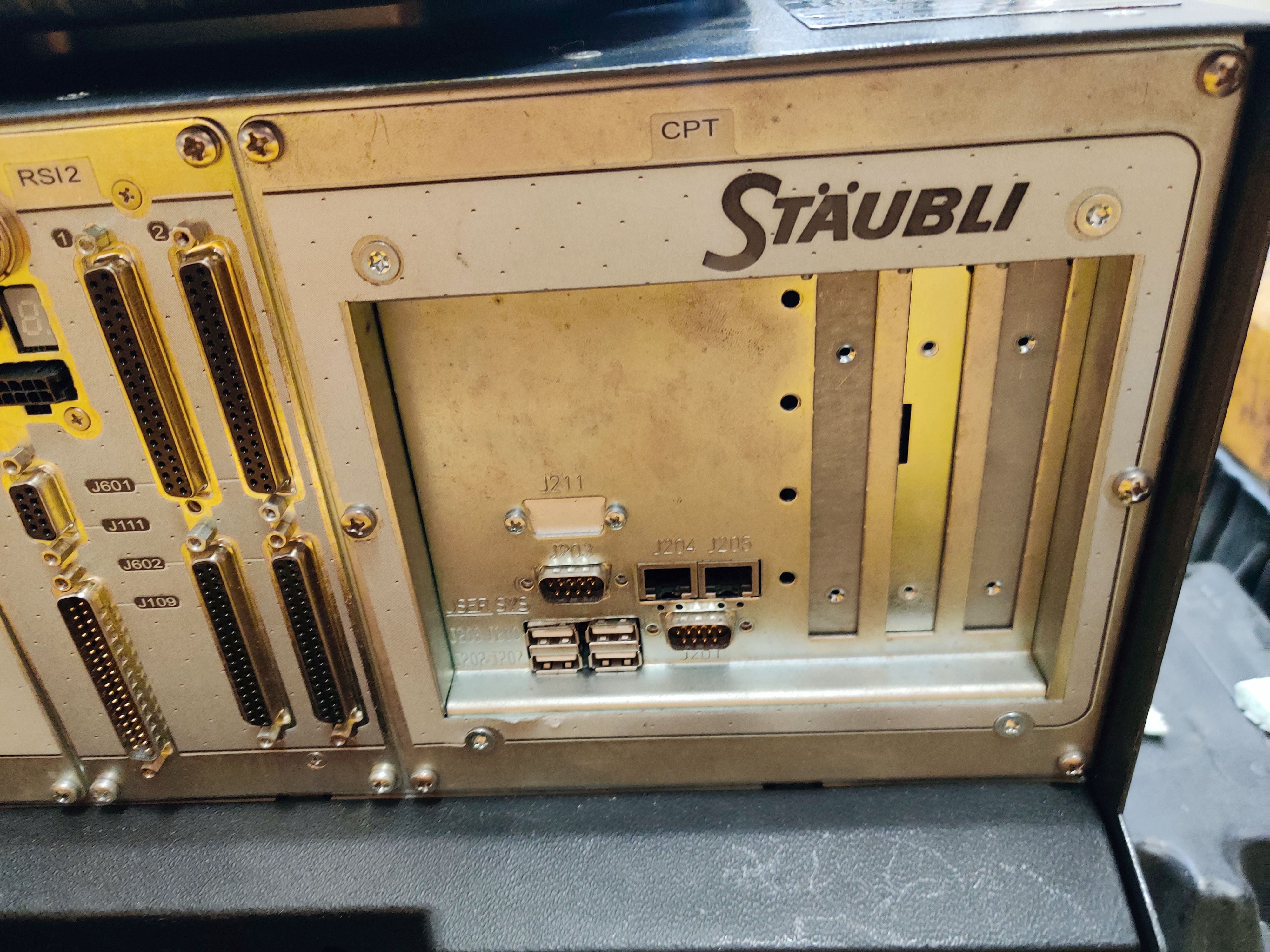

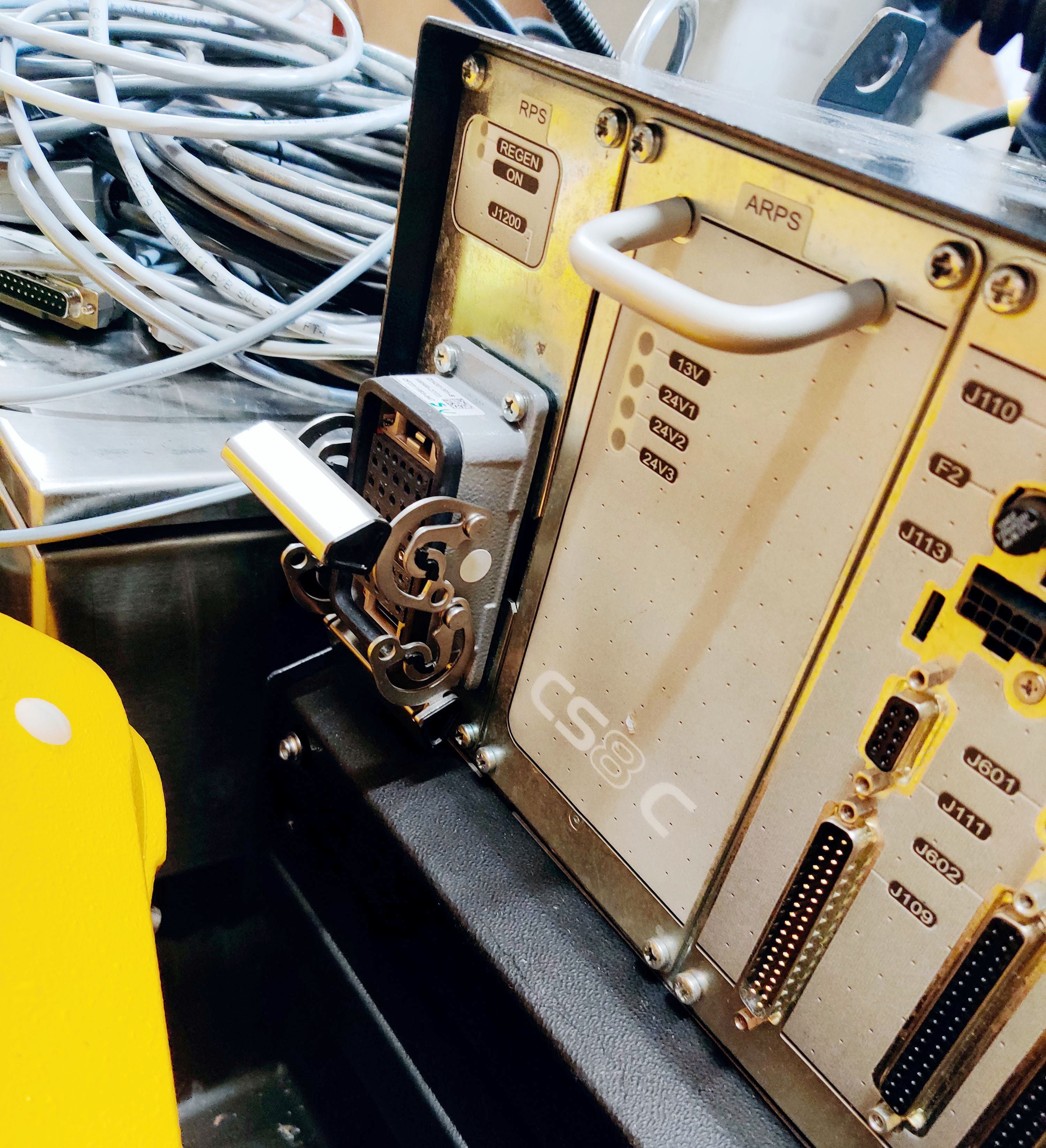

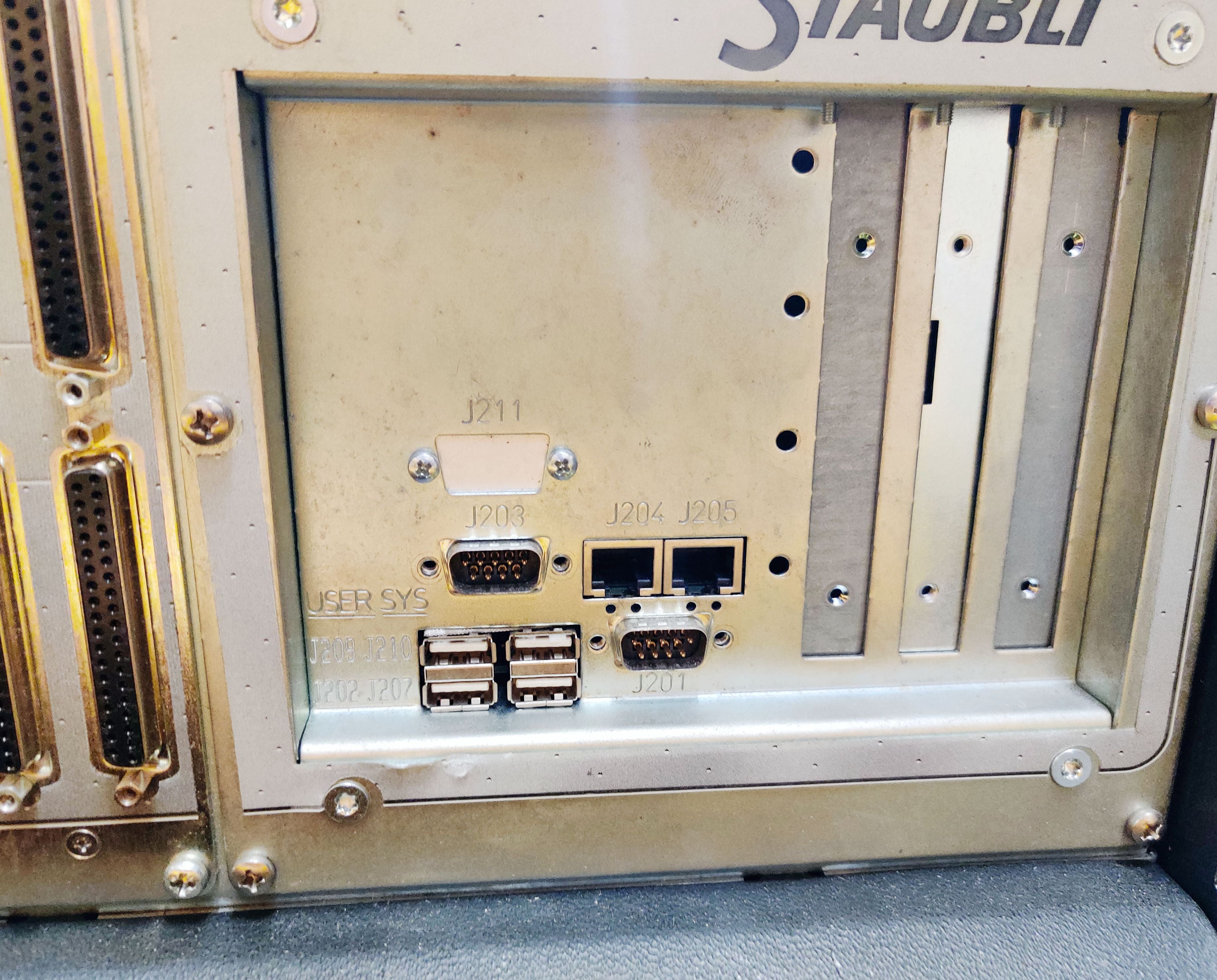

- Stäubli CS8 series controller: CS8C

Used

Used, working, dedicated controller is in excellent functional and cosmetic condition. The system was carefully decommissioned from a professional working environment where it was maintained to high standards. The arm's exterior is remarkably clean, reflecting its history in a controlled setting, and all mechanical joints remain fluid and precise. Ready for immediate integration into your next automation project.

400lbs

TX60 L 6-Axis
