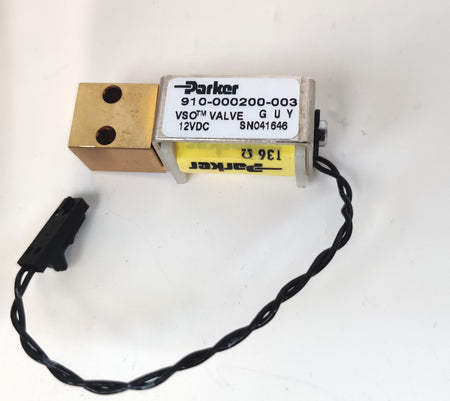

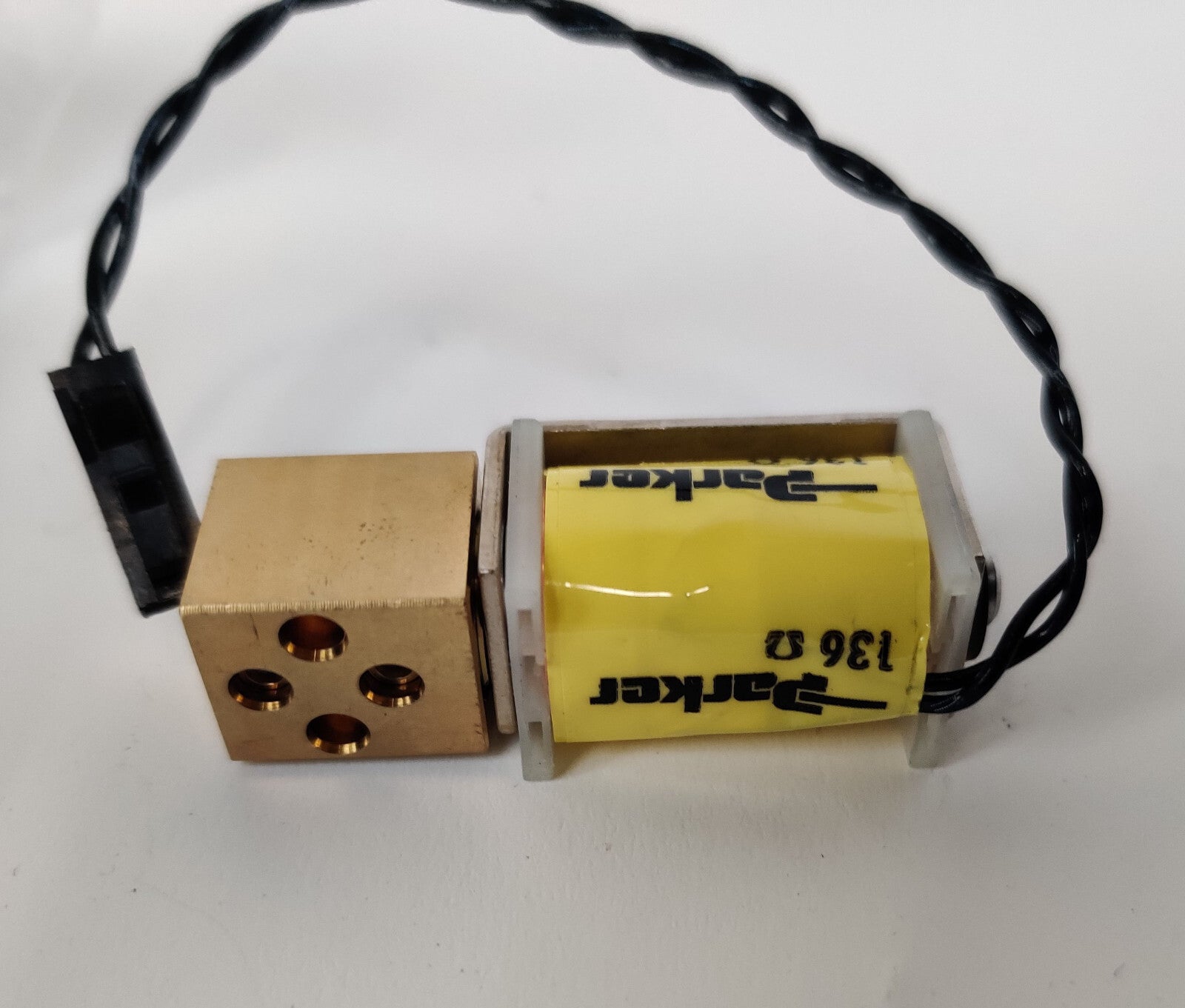

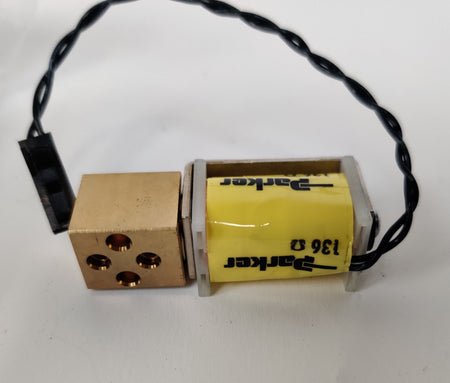

Parker 910-000200-003 VSO Miniature Proportional Valve 12VDC, 500 cm3/min

Parker 910-000200-003 VSO Miniature Proportional Valve 12VDC, 500 cm3/min

New open Box


Flow Rate:        up to 500 cm3/min
Maximum Flow Rate:        500 cm3/min
Vacuum to Pressure Range:        27 inch-Hg to Pressure Rating, 686.0 mm-Hg to Pressure Rating
Maximum Operating Voltage:        12 VDC
Maximum Operating Pressure:        150 psi, 10.34 bar
Orifice Size:        0.116 inch, 2.95 mm
Maximum Operating Temperature:        131 °F, 55 °C
Minimum Operating Temperature:        41 °F, 5 °C
Function:        2-Way, Normally Closed (NC)
Cycles per Lifetime:        100 Million
Power Consumption:        1.0 W
Input Voltage:        12 VDC
Electrical Connection:        18" Wire Leads
Body Material:        Brass 360 H02
Seal Material:        FKM
Thermal Compensation:        Non-Thermally Compensated
Length:        1.79 inch, 45.3 mm
Width:        0.63 inch, 15.9 mm
Height:        0.67 inch, 17 mm
Leak Rate:        < 0.016 cm3/min of Helium @ 150 Psi

New – Open box

New Open Box

0.5lbs

910-000200-003
