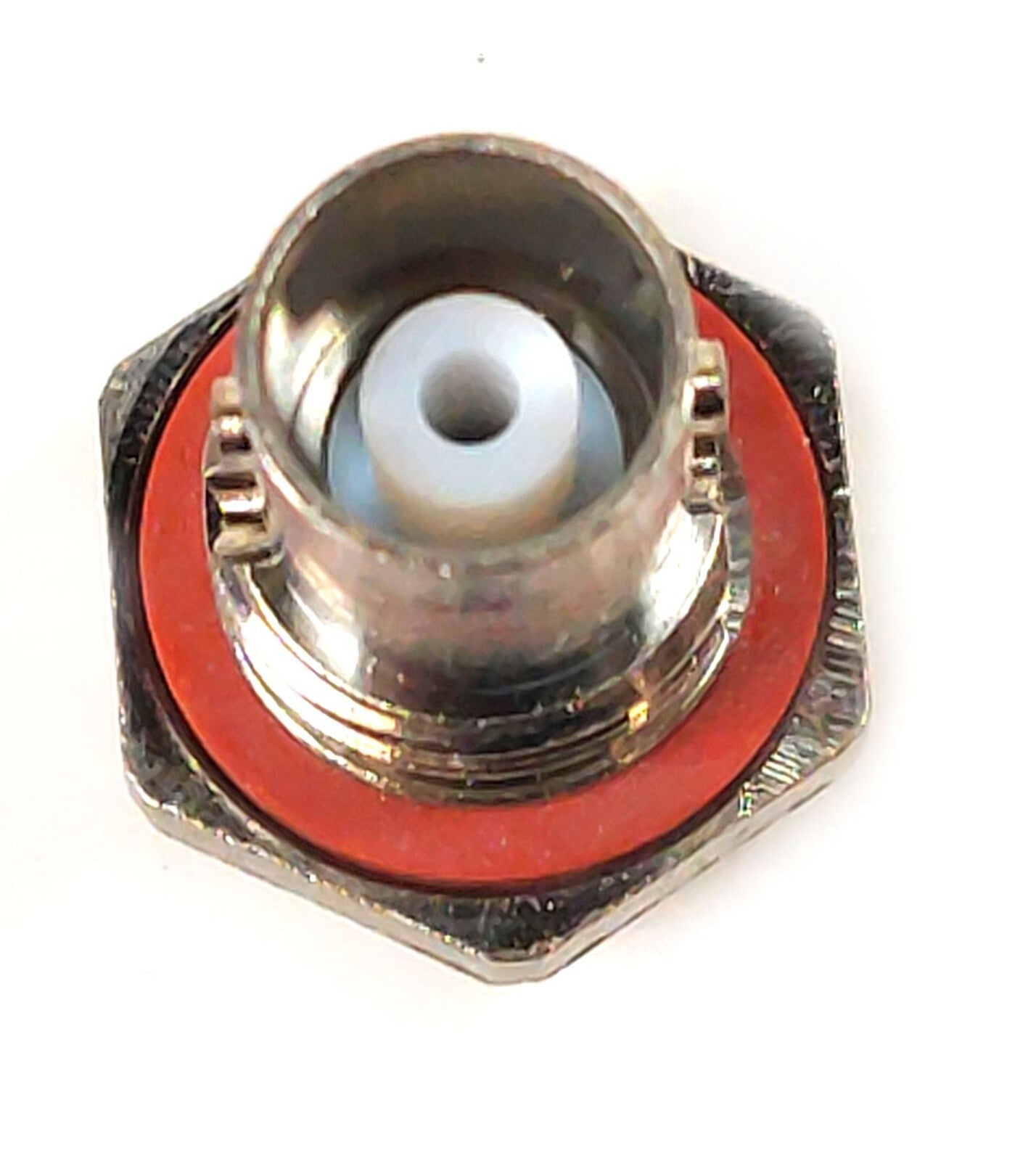

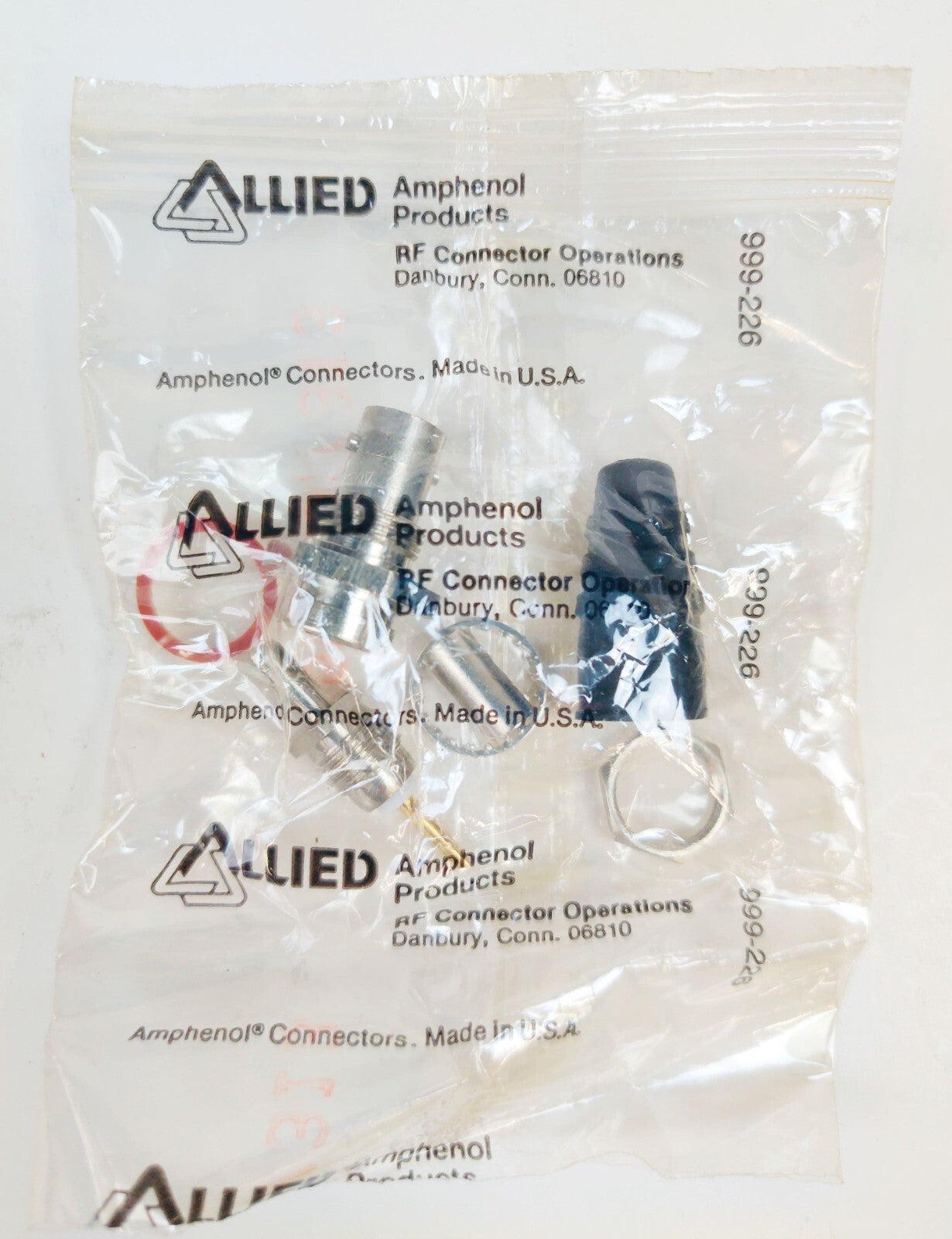

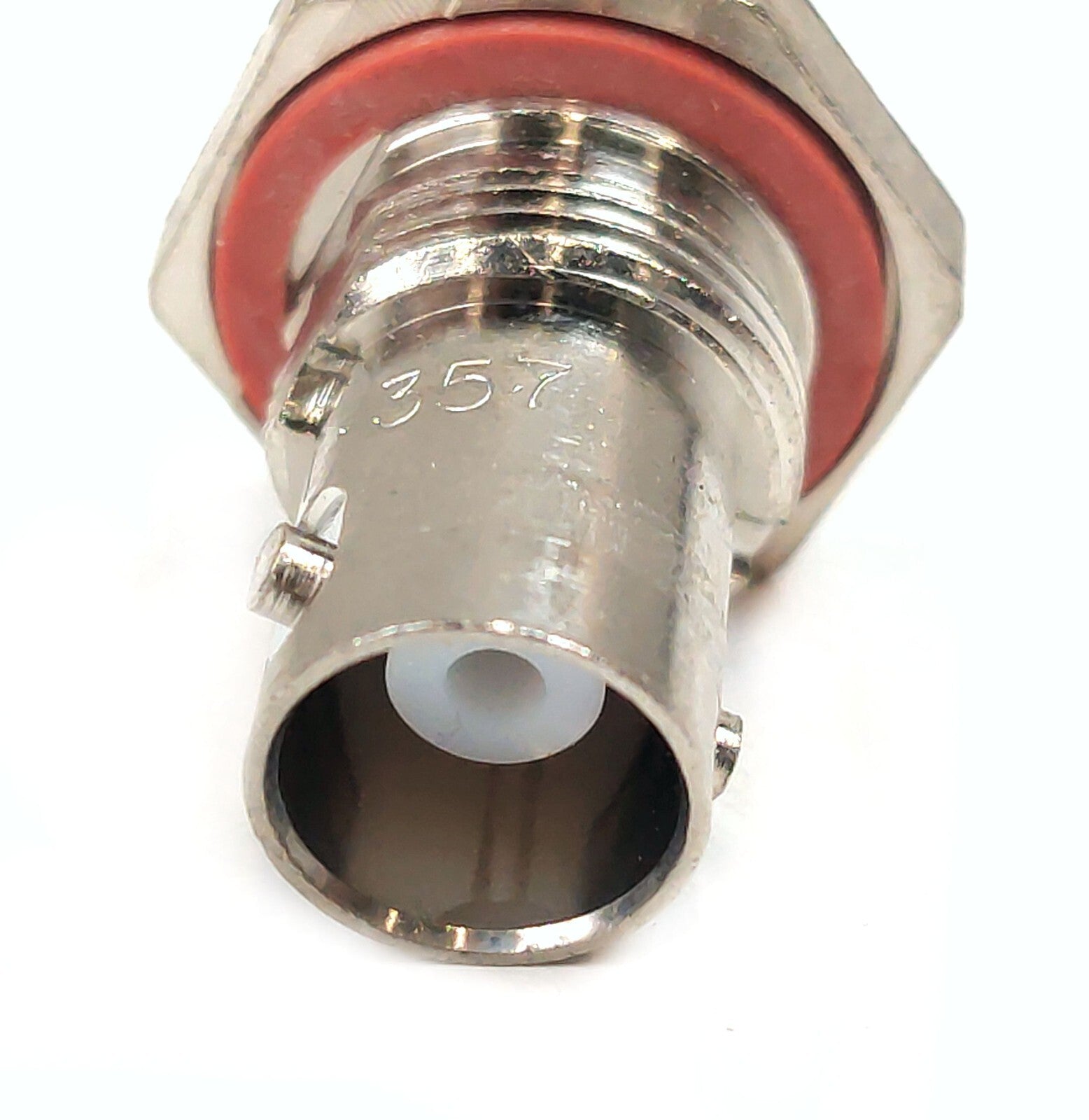

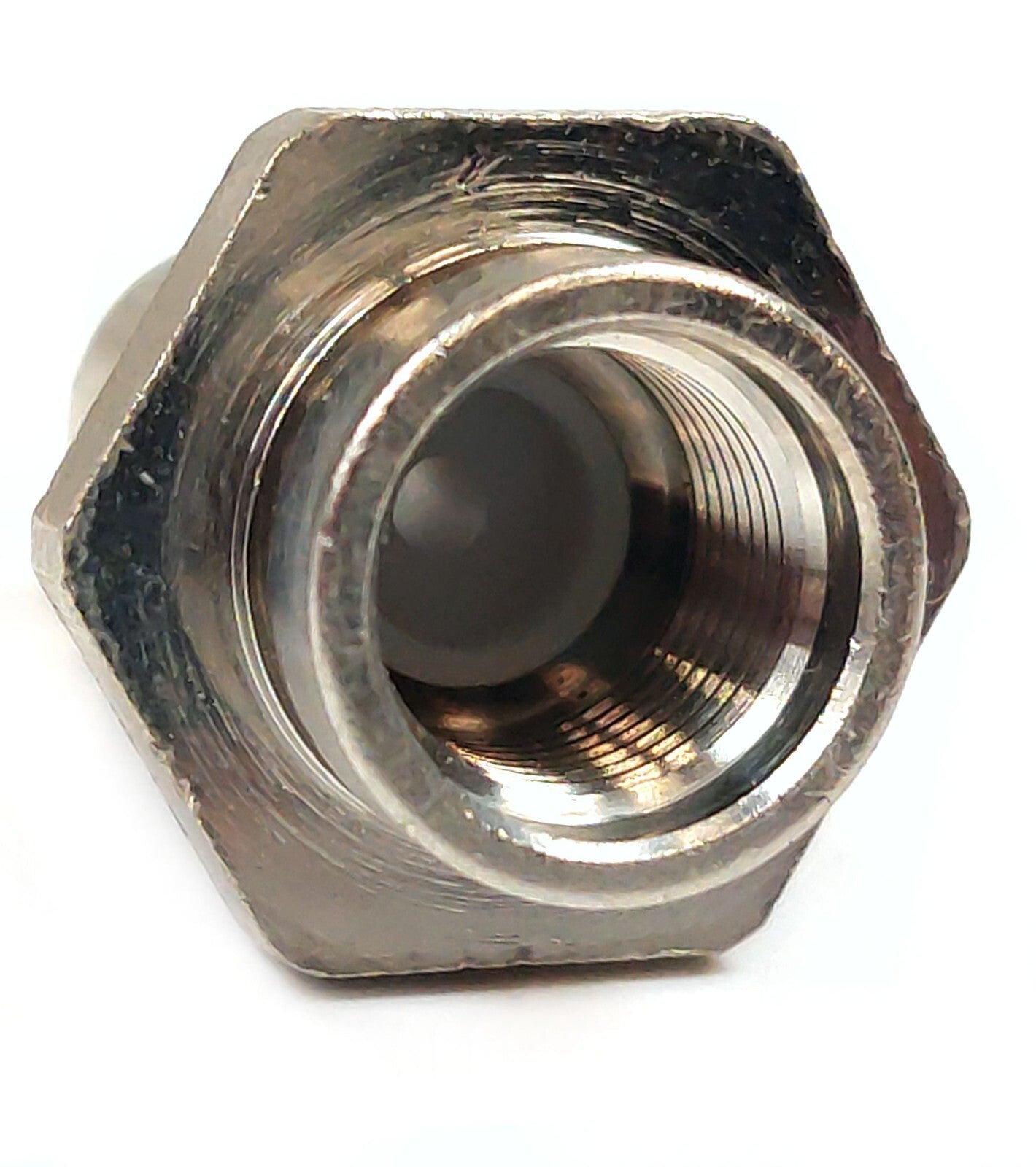

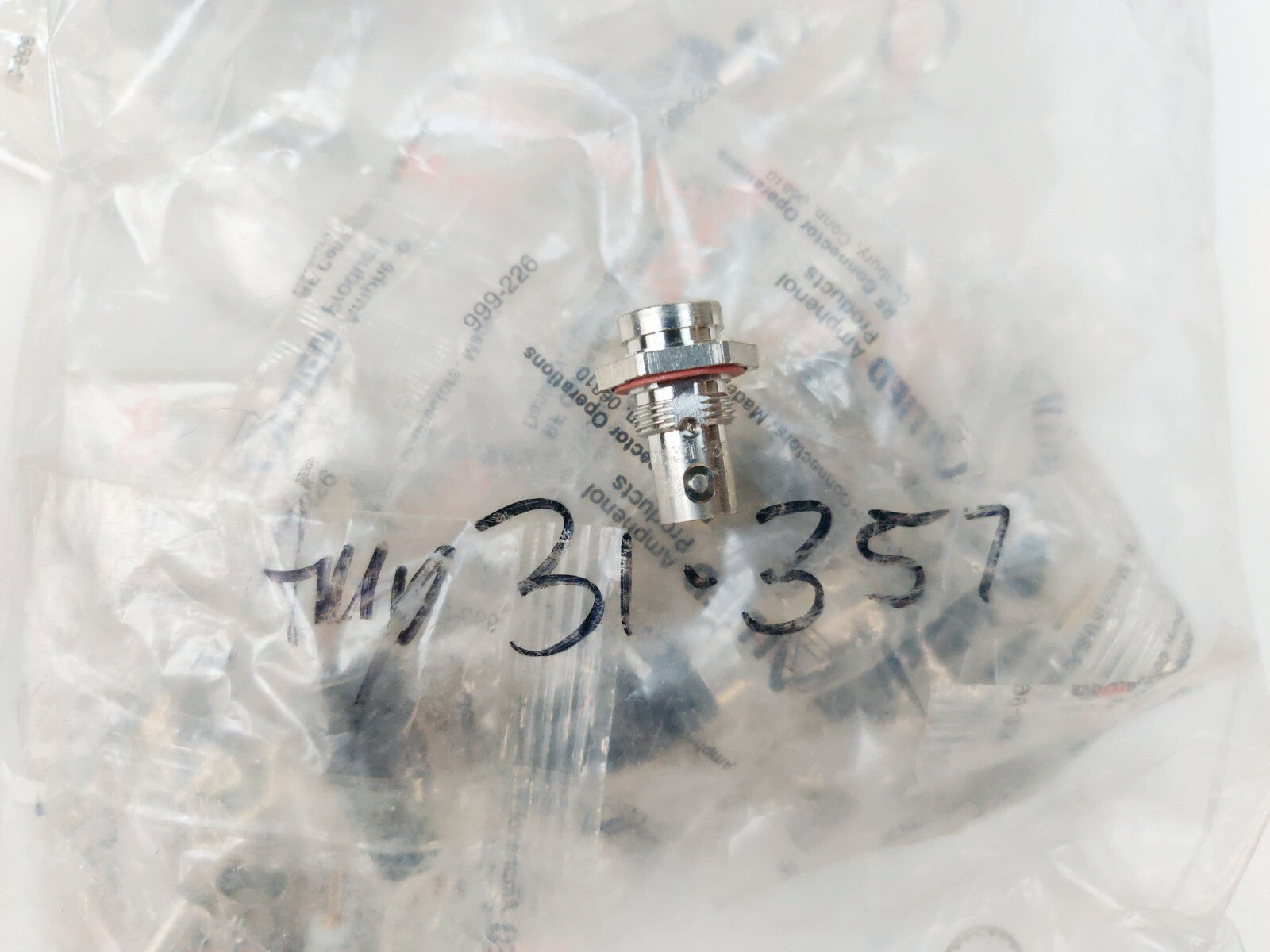

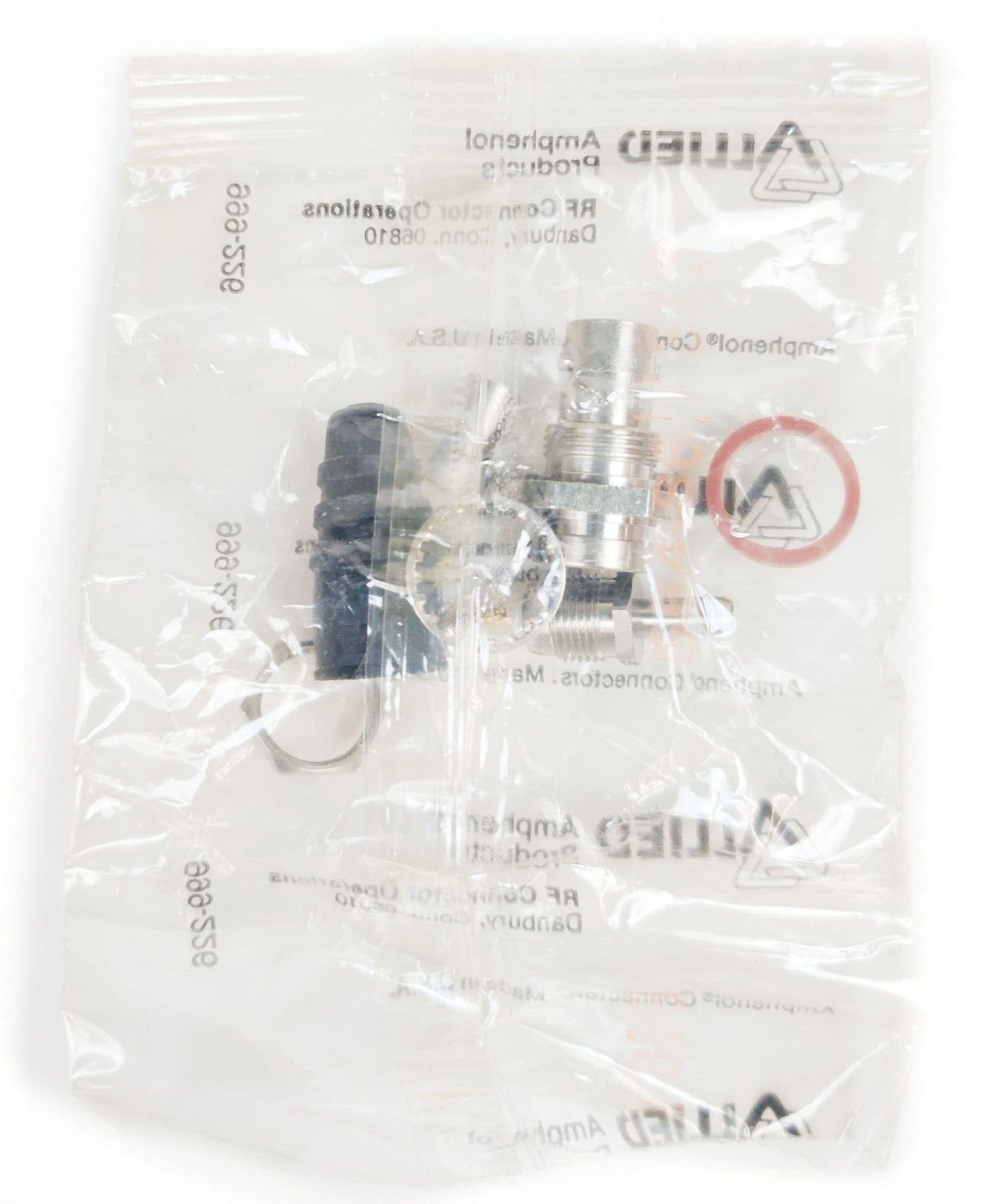

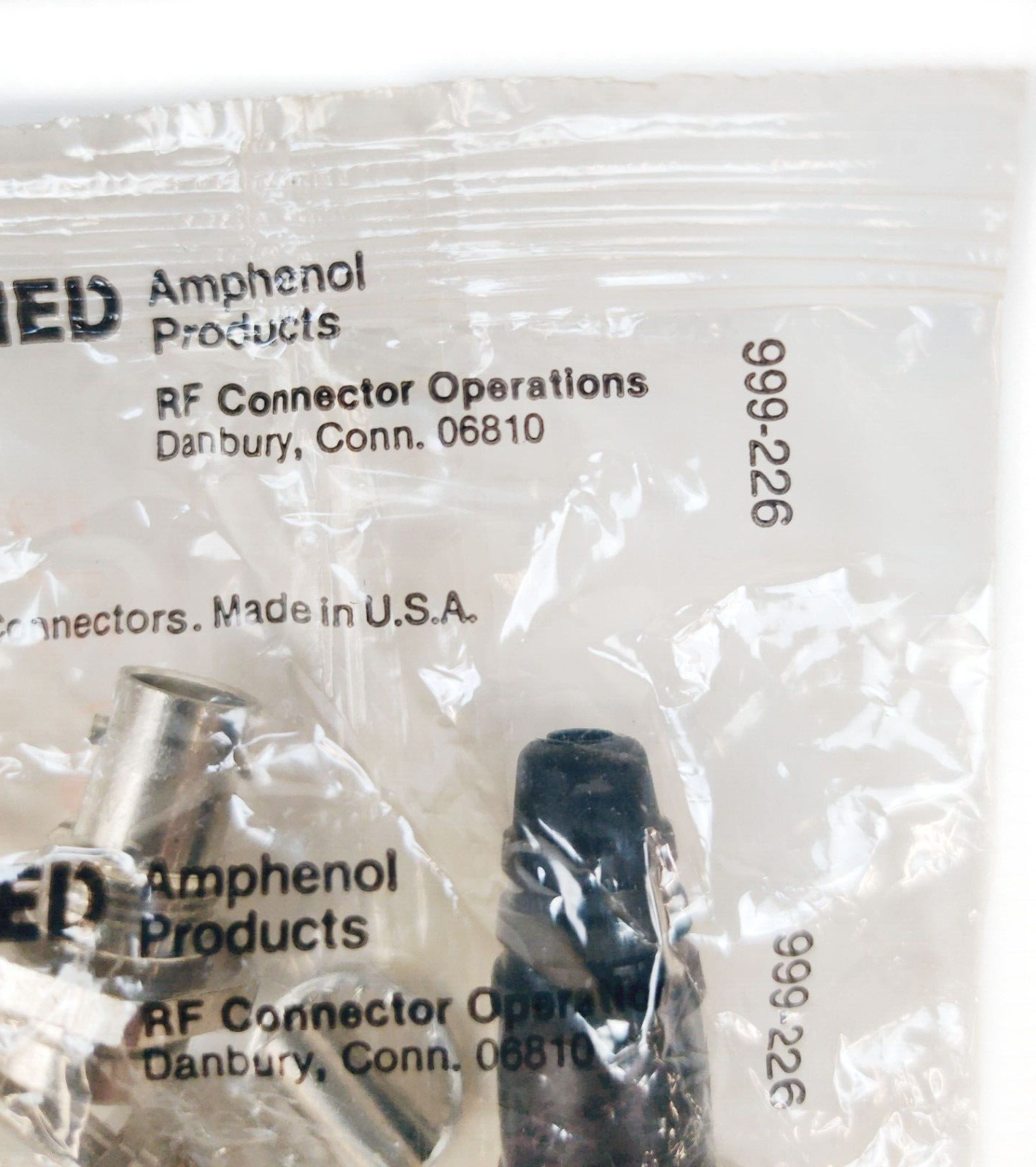

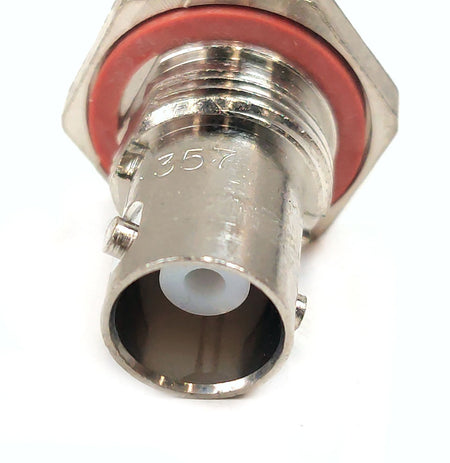

Lot of 5 Amphenol 31-357 (999-226) RF Coaxial Connector BNC Male 50Ohm

Lot of 14 Amphenol 31-357, 999-226 RF Coaxial Connector BNC Male 50 Ohm 10000Mhz New DESCRIPTION HP Overall Length 2.062 inches nominal Cable Entrance Diameter 0.222 inches maximum Mounting Facility Thickness 0.127 inches nominal Mating End Quantity 1 Contact Position Arrangement Style Bnc single mating end Contact Removability Nonremovable single mating end single contact grouping Contact Maximum AC Voltage Rating in Volts 500.0 single mating end single contact grouping Contact Maximum Frequency Rating 10000.0 megahertz single mating end single contact grouping Shell Type Solid Connector Locking Method Bayonet pin Connector Cable Strain Relief Method Crimp type Radio Frequency Type Contact Characteristic Impedance in Ohms 50.0 single mating end single contact grouping Terminal Location Back single mating end single contact grouping Contact Material Copper alloy single mating end single contact grouping Contact Surface Treatment Gold single mating end single contact grouping Insert Material Plastic tetrafluoroethylene single mating end Terminal Type Solder well single mating end single contact grouping Shell Material Copper alloy Included Contact Quantity 1 single mating end single contact grouping Bushing Accommodation Hole Shape Round W/flat Included Contact Type Coaxial socket single mating end single contact grouping Special Features Gasket, furnished items- boot Precious Material and Location Contact surface gold Precious Material GOLD

New

12lbs

31-357, 999-226

United States Shipping
This product qualifies for free shipping to the continental U.S.

International Shipping
We ship internationally. Buyers are responsible for any import duties, taxes, or customs requirements. Contact us to request an invoice for customs clearance. We recommend checking with your local customs authority before purchasing.

Overnight Shipping
We are happy to accommodate expedited shipping using your UPS or FedEx account. Please contact us to provide your account information.

This product qualifies for a free return.

We have a 30-day return policy from the date of receipt.

To learn more please visit our Return Policy.
