Hydraulic System Service Troubleshooting Repair Kit fits Bobcat, CAT, M9 DOZER
Only 1 left
Regular price
$366.00
Worldwide delivery
3-day handling
Free US shipping
with no fees
15% off
on any second item
Couldn't load pickup availability
Hydraulic System Service Troubleshooting Repair Kit fits Bobcat, CATERPILLAR, John Deere, M9 DOZER 100+ Pcs. 1/4"" 1/2"" 5/8"".
With this kit you can do a complete service including the following Procedures:
1 All Hydraulic Functions Inoperative
2 Apron, Bilge Pump, and Left-Hand Wheel Control Inoperative
3 Apron Will Not Raise
4 Bump Stops Inoperative
5 Ejector Creeps
6 Ejector Does Not Extend or Retract
7 Front Corner (Left or Right) Raises in SPRUNG, But Not UNSPRUNG Mode
8 Front Corner (Left or Right) Raises in UNSPRUNG, But Not SPRUNG Mode
9 Front Corner (Left or Right) Does Not Raise in SPRUNG or UNSPRUNG Mode
10 Hydraulic Oil Overheats
11 Left Rear Corner Does not Raise in SPRUNG or UNSPRUNG Mode
12 Rear of Vehicle Raises in SPRUNG, But Not UNSPRUNG Mode
13 Right Rear Corner Raises in SPRUNG, But Not UNSPRUNG Mode
14 Right Rear Corner Raises in UNSPRUNG, But Not SPRUNG Mode
15 Vehicle Does Not Respond to Driver Controls
16 Winch and Right-Hand Wheel Control Inoperative
17 Winch Will Not Pull Rated Load
18 Track (Left or Right) Will Not Tighten or Loosen, Semi-Automatic
Track Adjuster (NEW PRODUCTION)
19 Front Corner (Left or Right) Does Not Raise or Lower in UNSPRUNG
Mode, Semi-Automatic Track Adjuster (NEW PRODUCTION)
20 Left or Right Track Adjuster Will Not Extend After Suspension
Control Levers are Returned to Neutral

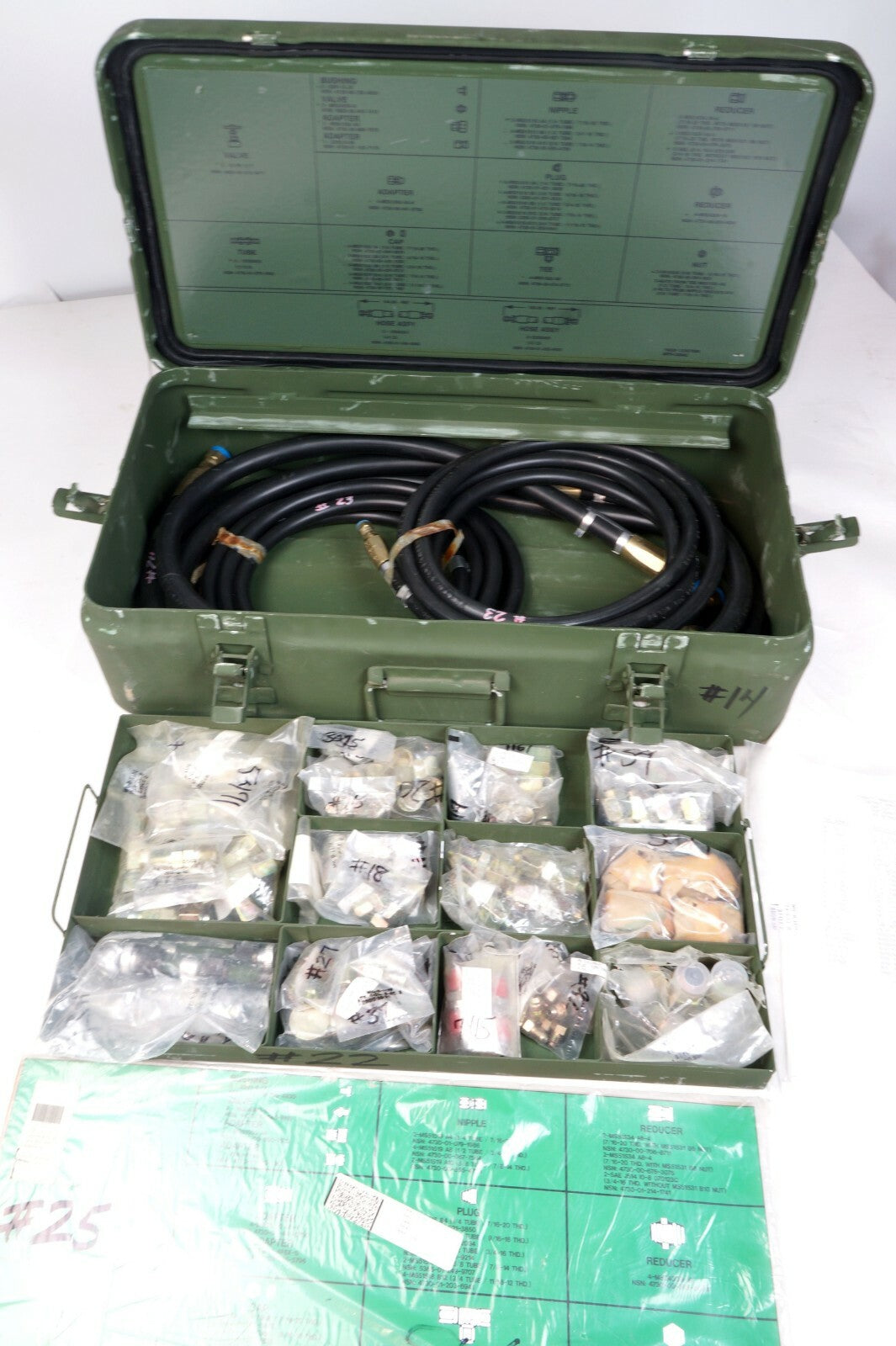

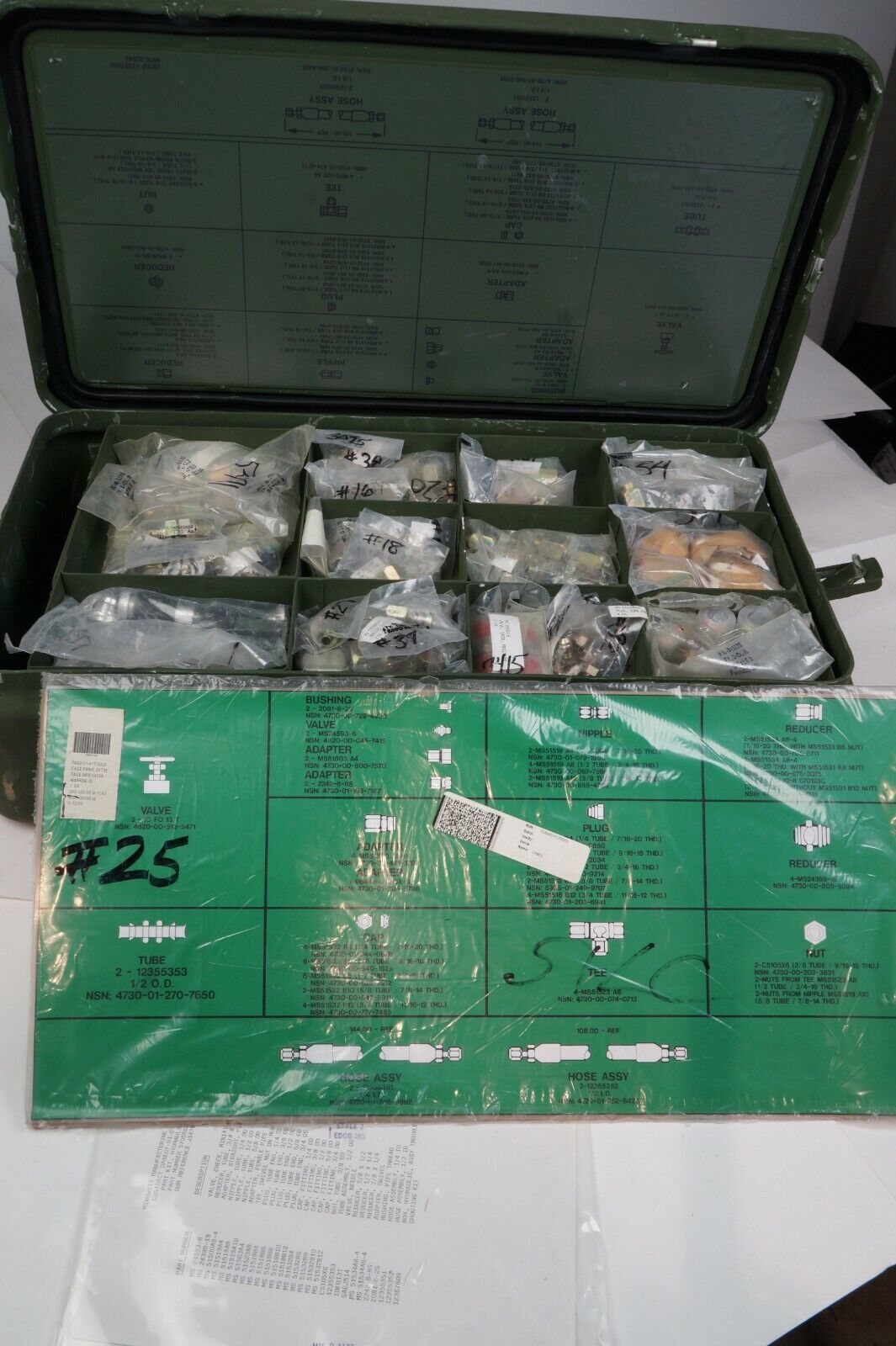

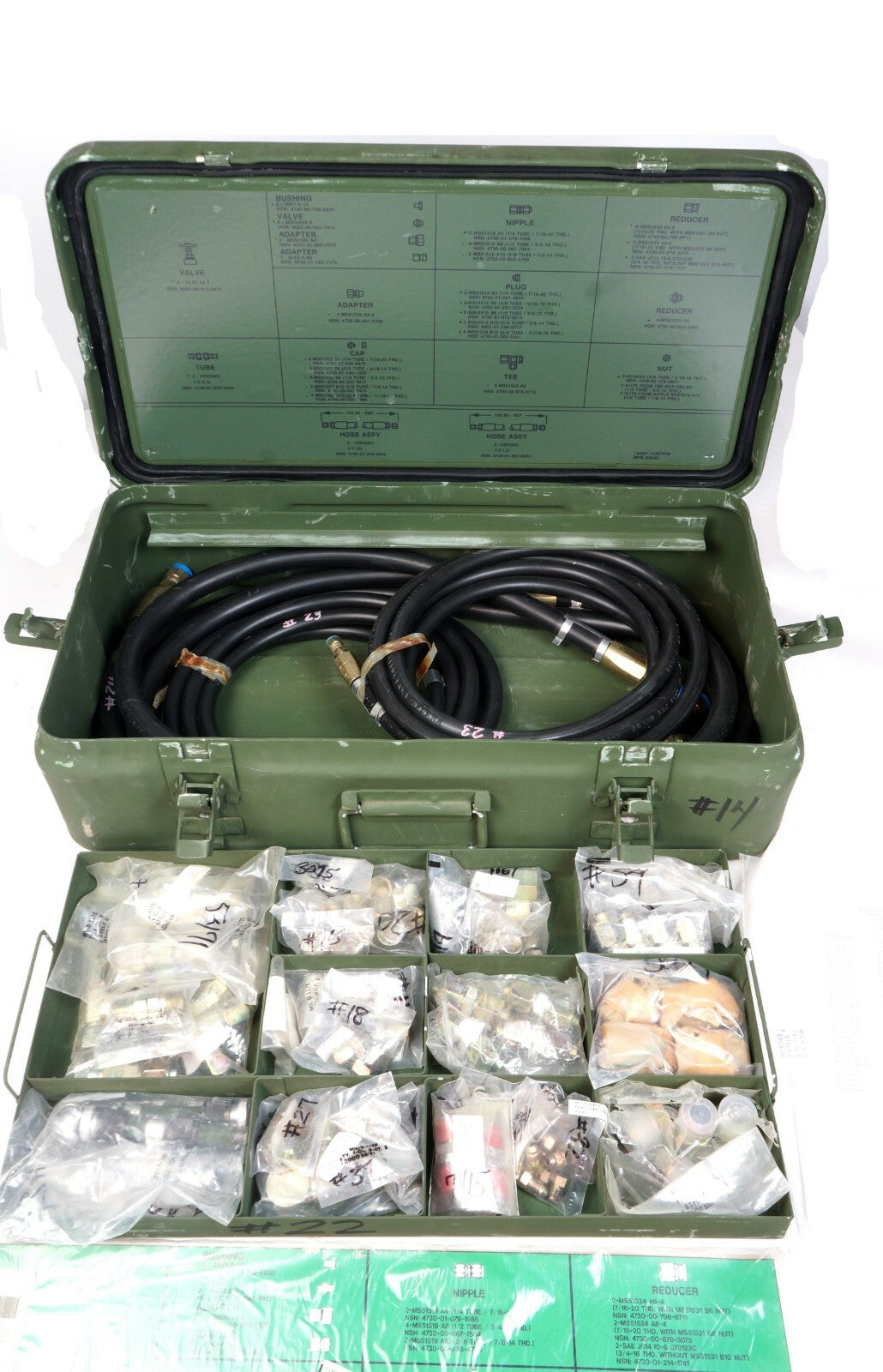

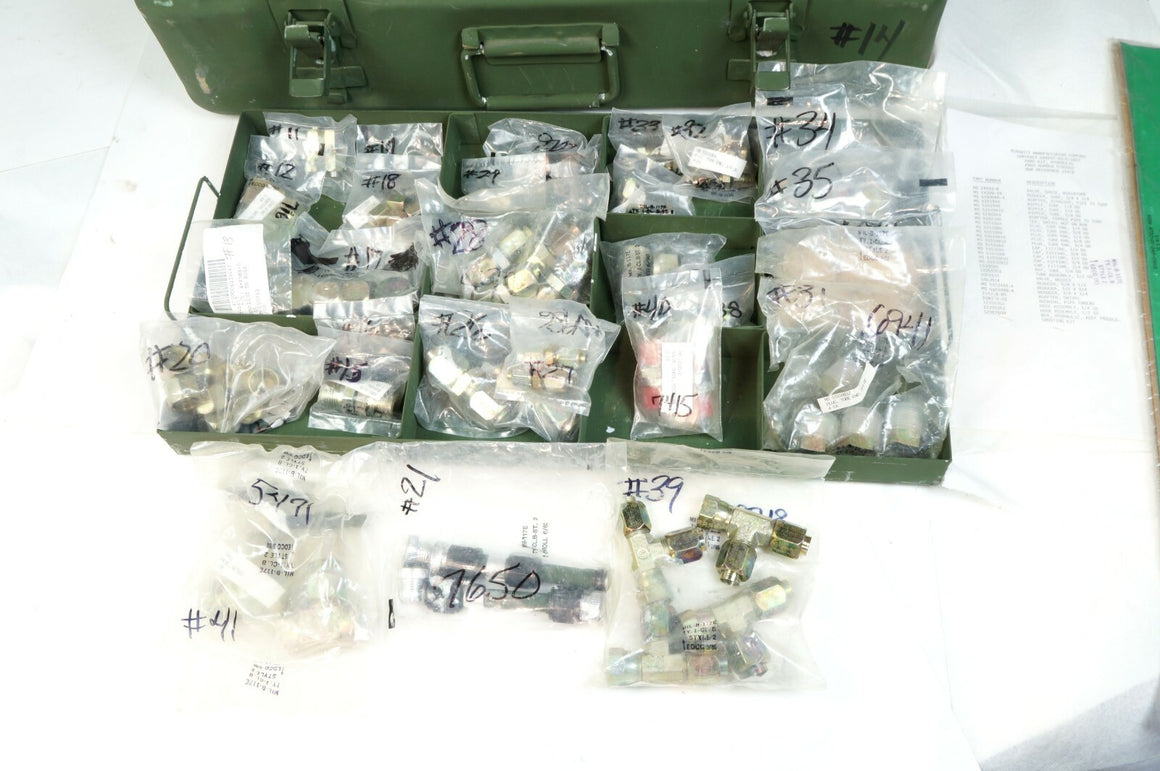

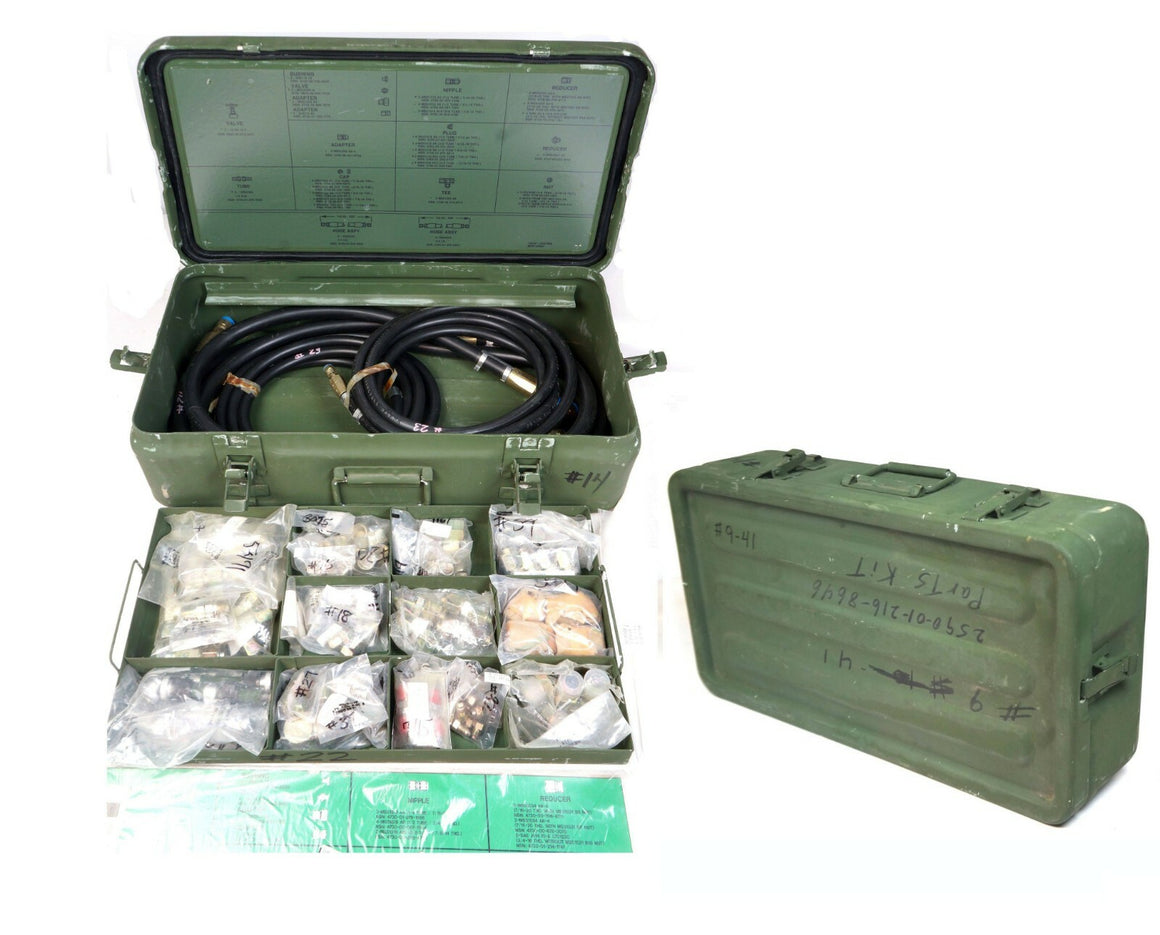

30 different items in a Seal Aluminum case; the following items are contained in this kit; valve, check, miniature; bushing, pipe thread; hose assemblies, 1/4 id and 1/2 id; tube assembly, 1/2 od valve, needle; nipple tube, 1/4, 1/2, and 5/8 od; plug tube end, 1/4, 3/8, 1/2, 5/8 and 3/4 od; cap fittings, 1/4, 3/8, 1/2, 5/8, and 3/4 od; nut, tube, 3/8, 1/2AND 5/8 od; reducers, 3/4X3/8, 5/8X1/2, 1/2X1/4, 3/8X1/4; and adapter, straight, pipe to tube

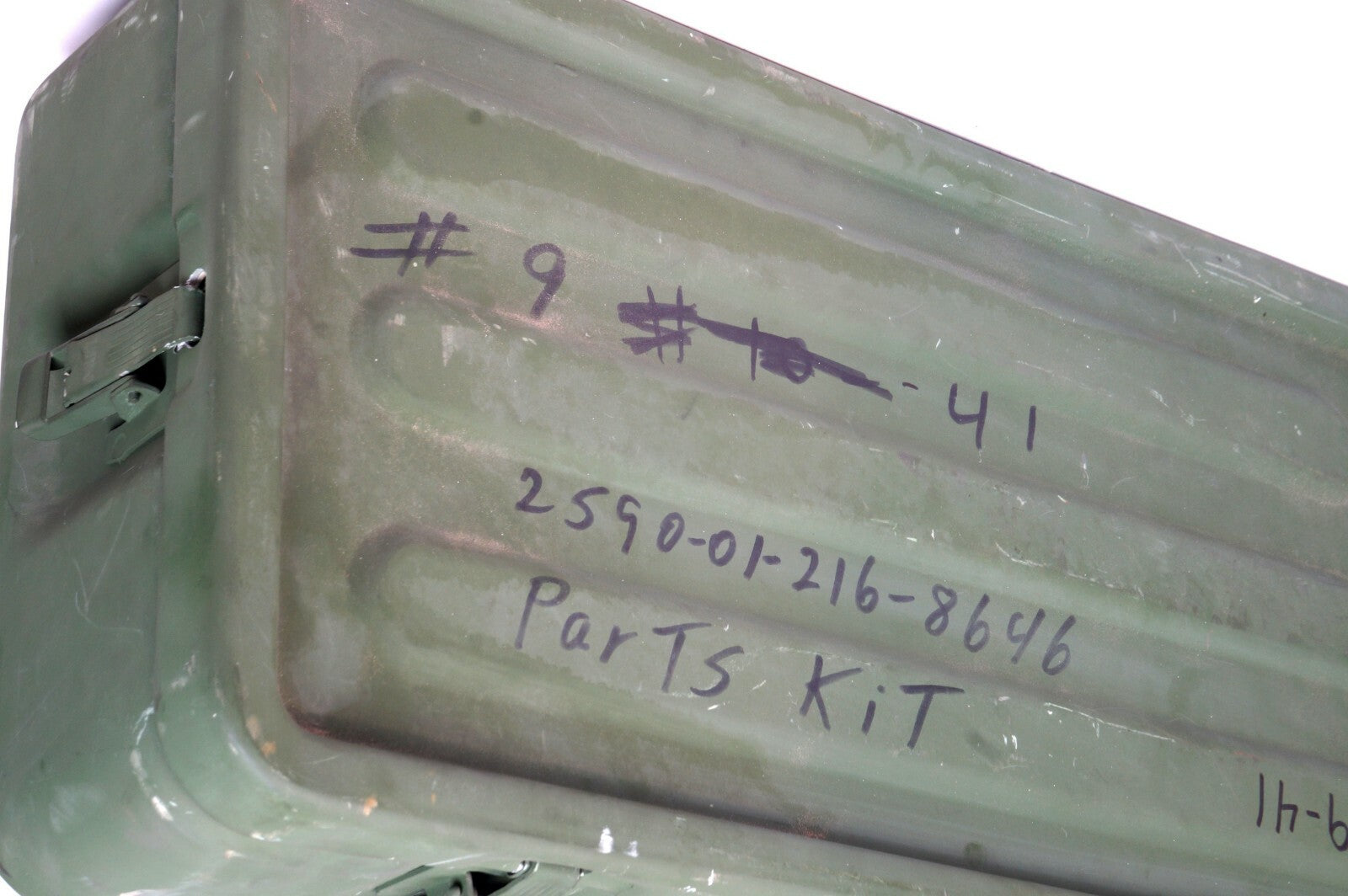

2590-01-216-8646 nsn

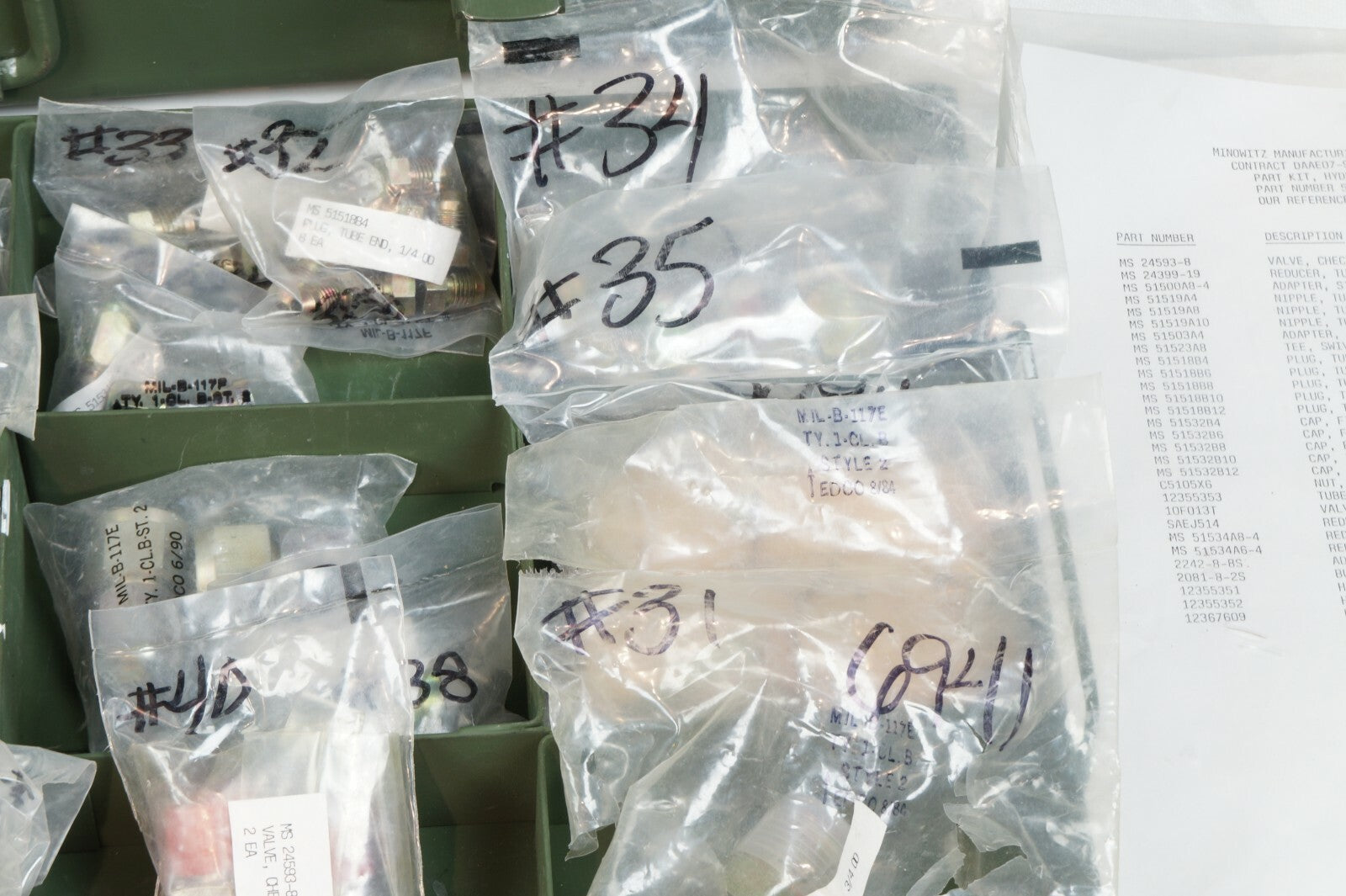

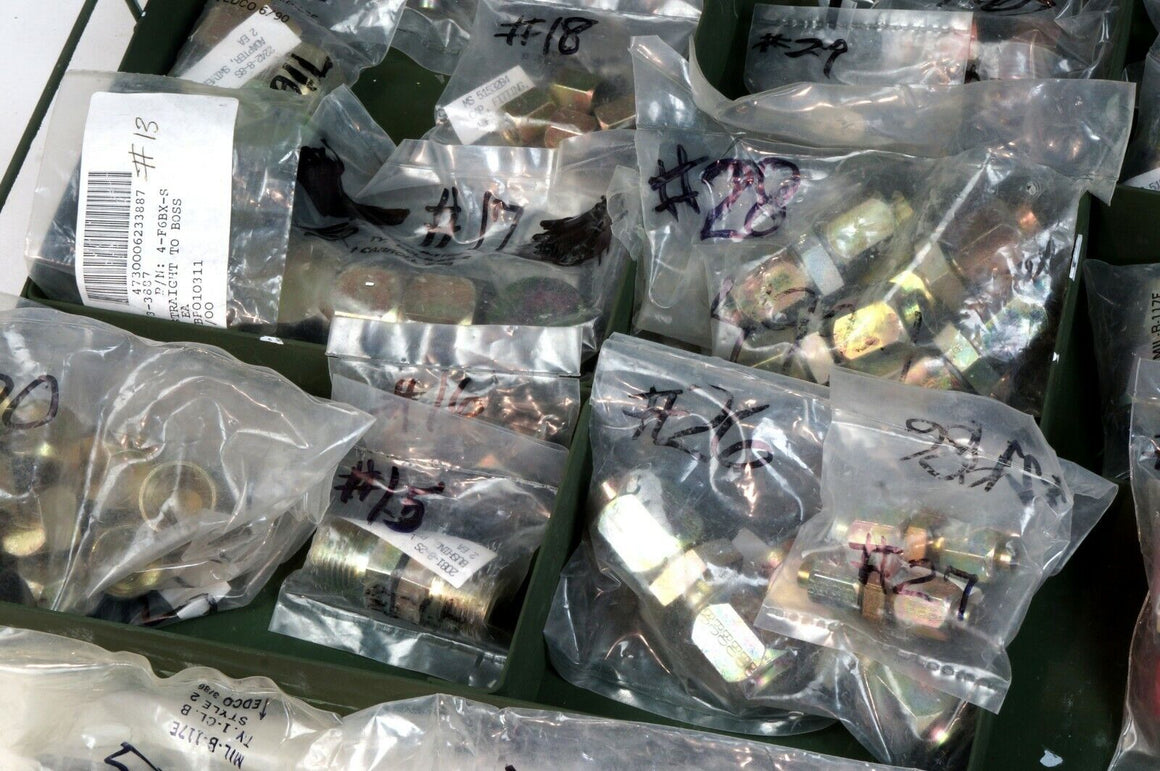

Part details:
Adapter 4730-00-441-8700 MS51500A8-4 4
Adapter 4730-00-800-7570 MS51503A4 2
Adapter 4730-01-305-5796 4-4F6BX-S 1
Adapter 4730-01-183-7167 2242-8-8S 2
Bushing 4730-00-729-4930 2081-8-2S 2
Cap 4730-00-542-5911 MS51532B10 2
Cap 4730-00-647-3311 MS51532B12 4
Cap 4730-01-044-0878 MS51532B4 4
Cap 4730-00-540-1525 MS51532B6 8
Cap 4730-00-625-2212 MS51532B8 8
Hose Assembly 4720-01-246-0992 12355351 2
Hose Assembly 4720-01-252-8425 12355352 2
Nipple 4730-00-855-4799 MS51519A10S 2
Nipple 4730-01-079-1986 MS51519A4 2
Nipple 4730-01-329-4994 MS51519A8 4
Nut 4730-00-203-3831 C5105X6 2
Plug 5365-01-249-9707 MS51518B10 2
Plug 4730-01-203-6941 MS51518B12 4
Plug 4730-01-021-3850 MS51518B4 8
Plug 4730-01-070-9214 MS51518B8 8
Plug 5365-01-251-2034 MS51518B6 4
Reducer 4730-00-805-5094 MS24399-19 4
Reducer 4730-01-214-1741 10-8-070123C 2
Reducer 4730-00-706-8711 MS51534A6-4 2
Reducer 4730-00-676-3075 MS51534A8-4 2
Tee 4730-00-074-0713 MS51523A8 4
Coupling Assembly 4730-01-270-7650 12355353 2
Check Valve 4820-00-045-7415 MS24593-8 2
Globe Valve 4820-00-513-5471 10F0-1-3T 2
Box Hydraulic Assembly 2540-01-298-3975 12367609 1
DISCLAIMER:
Items are sold individually unless it is stipulated in the title of the listing. When the cover photo has two or more items in it is due to the fact that, either we are presenting several elements and angles of the same item or we are presenting all the items we have in stock while showcasing the differences between them. If you have doubts regarding the quantity included per sale please contact us, we will be happy to answer any questions.
QUALITY GUARANTEE:
We inspect and test all items that come into our shop. However, we deal with a large variety of items and our knowledge of some items is quite limited. Because of this we offer a 48 hour inspection period on all items that we sell. If you happen to find a problem with your item that we missed, please let us know within 48 hours of delivery. We will repair the item or refund your money if there is a problem that we cannot fix. Good customer service is our only goal. Please let us know immediately if there is a problem with your item.
RETURN POLICY
If for any reason you are unhappy with your purchase, contact us VIA eBay EMAIL so that we start the return policy process, just contact us within 14 days after receiving the item. All returning items must include original packaging, please return item in the same condition as received. Thanks
COMBINE SHIPPING
If you want to buy more of our store items please do so and request an invoice before paying as we combine shipping.
OVERNIGHT SHIPPING:
We can ship overnight using your UPS or Fedex account
International Buyers – Please Note: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.
Please note that we are not related with any of the companies that manufacture the products that we sale therefore if you have any questions regarding our products you can contact us directly.
""
New – Open box

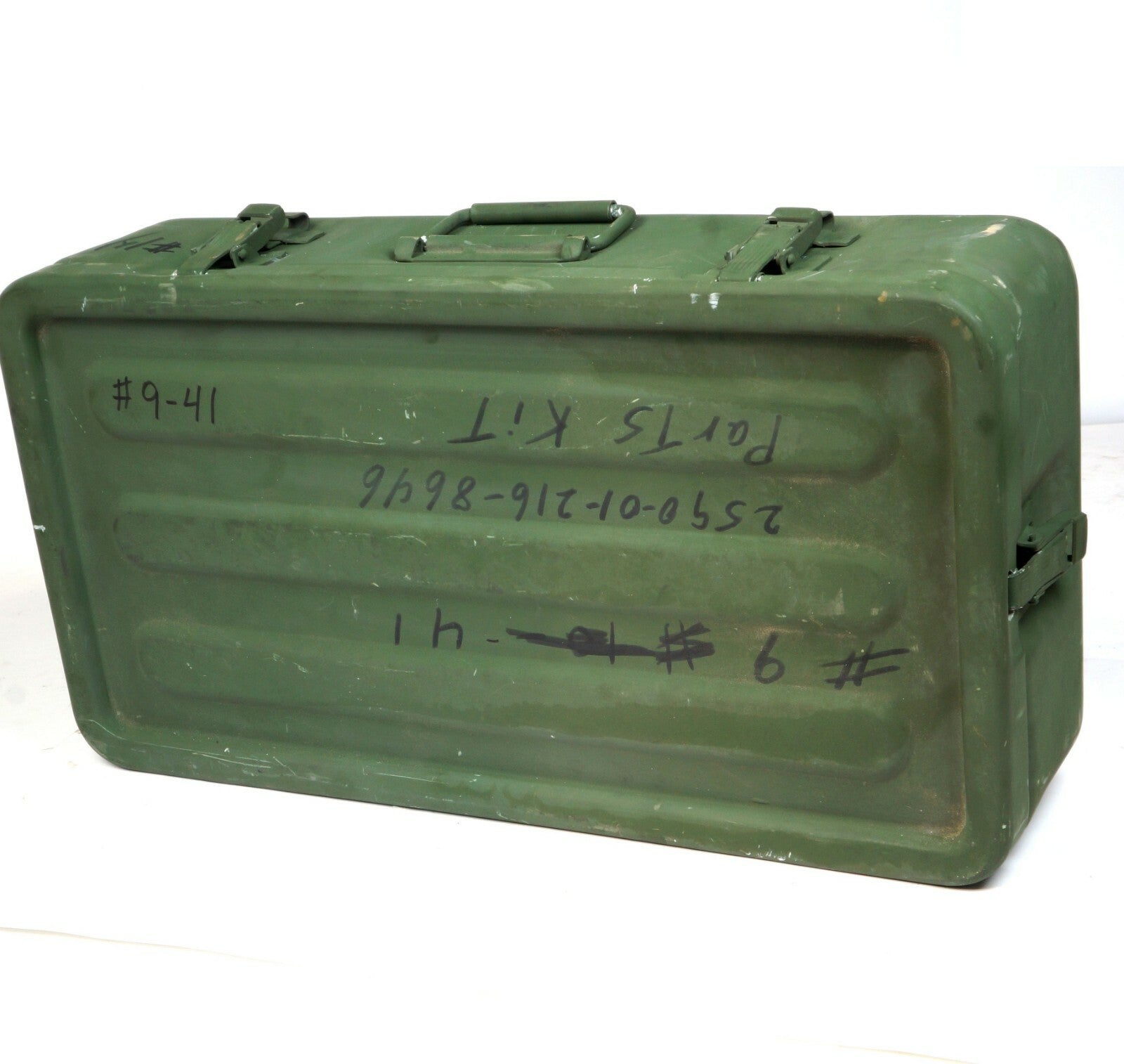

in aluminum case US Gov Issued NSN 2590-01-216-8646
