HJ Arnett The Pinpointer HJA-471 Secondary Fault Locator Buried Cable

HJ
Only 1 left
$759.00

Worldwide delivery

3-day handling

Free US shipping

on most items

Get 15% off

on any second item
"HJ Arnett The Pinpointer Underground Secondary Fault Locator w Probes Cables

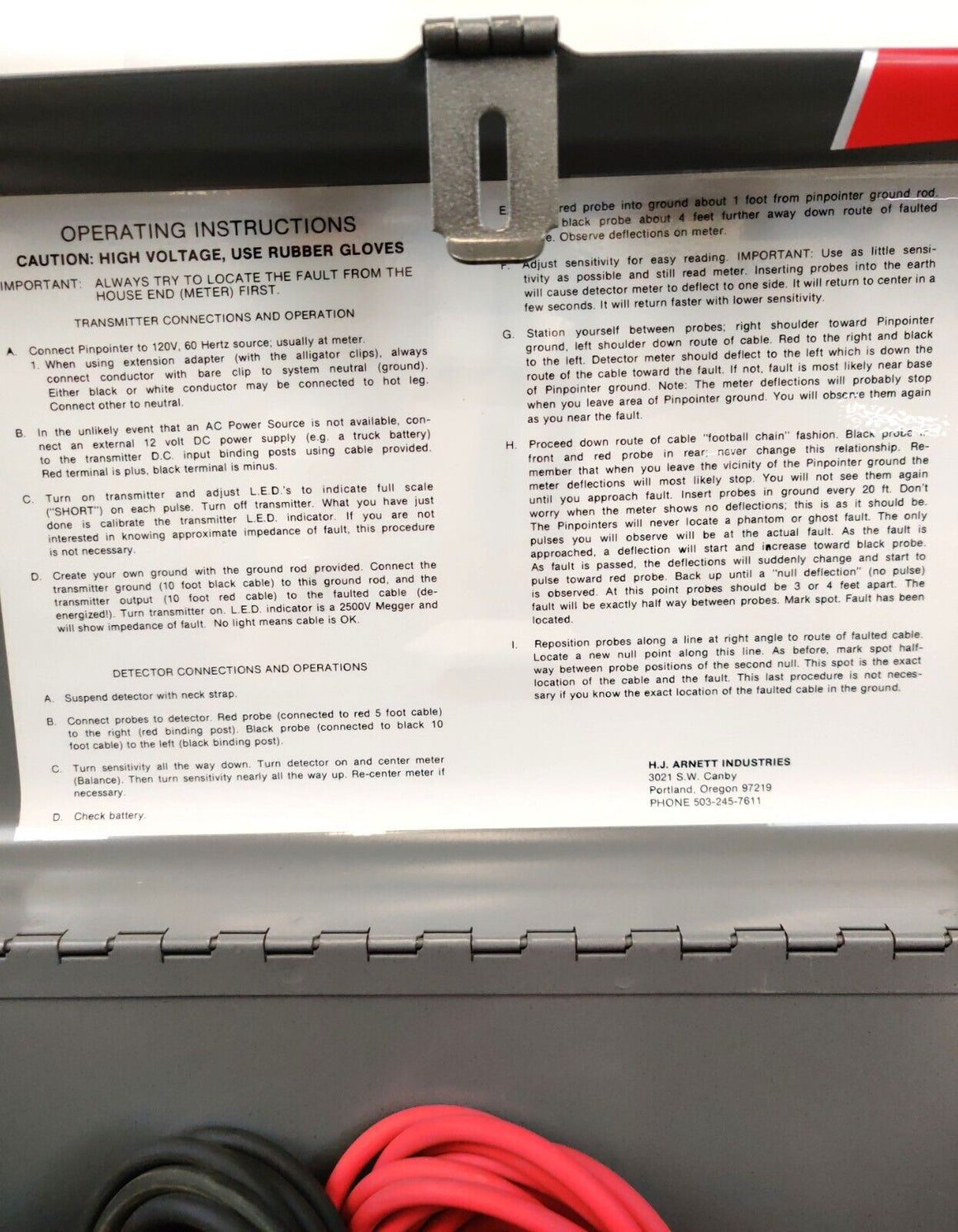

Used, in excellent condition, powers on, no further testing done. It comes with Detector Variable Sensitivity and Black and Red Probe Cables, no more accessories. Please see pictures.

* Included:
Transmitter – 2500VDC Pulse
Detector – Variable Sensitivity
Detector Cables (Red & Black)

* Applications:
Electric Utilities/PUD’s/COOP’s
Electrical Contractors
Oil Fields
Irrigation Systems – Golf Courses, Agriculture, Etc.
Wind Farms
Solar Fields

* Transmitter
Power requirements:
120VAC:
 - @ 60 Watts - pulsing A.C. protected with 1/2-Amp, slo-blow, and panel
 - @ 15 Watts - normal mounted fuse.
12VDC:
- @ 10 Watts-pulsing 12VDC inputs protected with circuit board
- @ 0.5 Watts - normal mounted 4-Amp fuse.
Output voltage:
- 2300-2500VDC typical, across 10-megohm load.
- 50VDC typical, across 625-ohm load.
Output pulse rate: One pulse every 3 to 4 seconds.
Output pulse duration: Approximately 200 milliseconds, typical.
Fault Impedance Indicator: This indicator not intended to give an accurate representation of fault impedance. It does, however, give an “idea” of what the fault impedance is.

* Detector (Galvanometer):
9VDC, transistor battery powered: Battery test feature shows if battery is good on Detector meter. Battery is easily user-replaceable.
Taut-band, zero-center 3½” meter: Large, quick-response meter guides user to cable fault quickly.
Meter sensitivity & balance Adjustment: Allows user to fine-tune operation of Detector.

* Dimensions 18” L x 15” W x 7” H"
