AIRPAX Circuit Breaker 240 V AC / 50 V DC 2 pole 81541 AP12-2613-209

Description

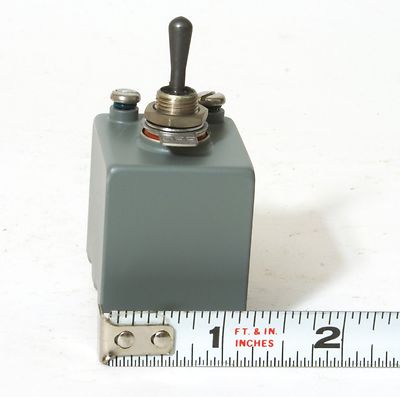

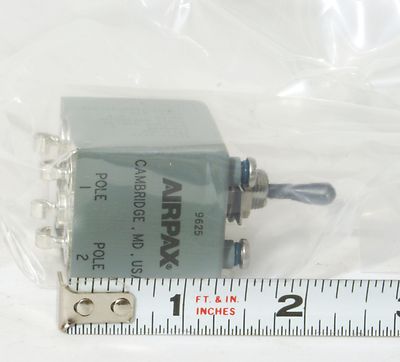

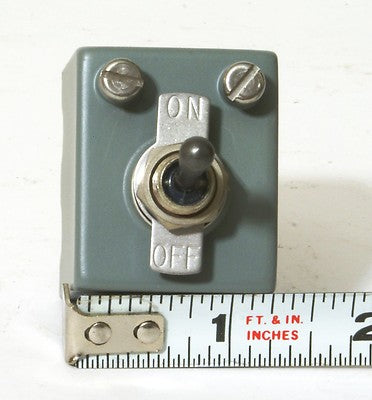

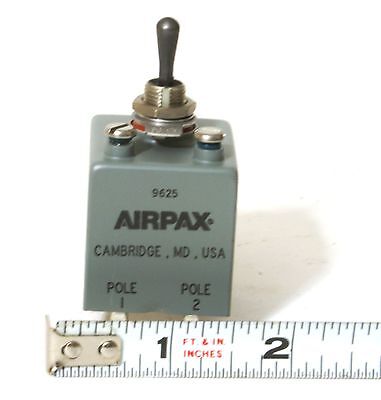

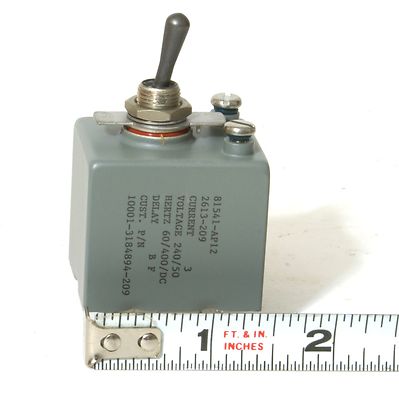

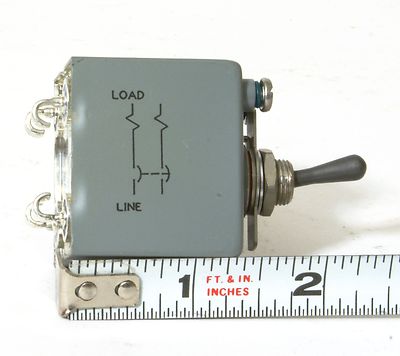

New old stock in original packaging as shown in pictures. Came from Gov. Surplus

5925-01-266-5751 Features

MRC Parameter Characteristics

AAQL Body Style Multipole-single actuator type

ABXD Bushing Length 0.380 inches maximum

ADAQ Body Length 1.562 inches maximum

ADAT Body Width 1.281 inches maximum

ADTV Case Material Metal

AEBP Center to Center Distance Between Terminals Parallel to Length 0.906 inches maximum

AEBQ Center to Center Distance Between Terminals Parallel to Width 0.625 inches nominal

AJWX Mounting Surface to Terminal End Distance 1.820 inches maximum

AKPX Pole Quantity 2

AXHR Mounting Facility Type and Quantity 1 threaded bushing W/panel seal

CBBL Features Provided High inrush protection

CMLP Thread Quantity per Inch 32

CPLM Maximum Continuous Load Current Rating per Pole 3.0 amperes ac all locations

CPRF Operating Voltage Type and Rating per Pole in Volts 240.0 ac all locations

CPRG Maximum Interrupting Capacity Current Type and Rating per Pole in Amps 300.0 ac all locations

CPRH Circuit Protection Type Overcurrent all locations

CPRJ Trip Release Method Magnetic all locations

CPRL Trip Release Characteristic Time delay all locations

CPRN Ultimate Trip Rating of Continuous Current Rating per Pole in Percent 115.0 all locations

CPRQ Reset Method Manual

CPRR Main Contact Tripping Mechanism Type Trip free

CPRT Manual Actuator Type and Quantity 1 toggle

CPRW Actuator Function Trip-reset

CPRX Actuator Position Designation Between pole one and two

CPSM Internal Trip Release Configuration Series trip all locations

CQJX Nominal Thread Size 0.375 inches

CQWN Trip Delay Time in Seconds per Rated Continuous Current 0.070 minimum at 200 pct all locations and 0.700 maximum at 200 pct all locations

CQXF Inclosure Protection Type for Which Designed Hermetically sealed and shockproof and vibrationproof

FREQ Frequency in Hertz 60.0 all locations

TEST Test Data Document 10001-3184894 drawing (this is the basic governing drawing, such as a contractor drawing, original equipment manufacturer drawing, etc.; excludes any specification, standard or other document that may be referenced in a basic governing drawing)

THSD Thread Series Designator UNEF

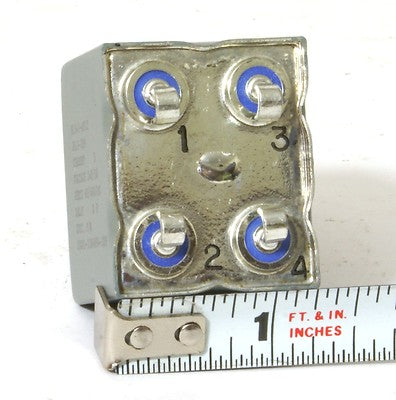

TTQY Terminal Type and Quantity 4 wire hook

COMBINE SHIPPING

If you want to buy more of our store items please do so and request an invoice before paying as we combine shipping.

"QUALITY GUARANTEE:

We inspect and test all items that come into our shop.  However, we deal with a large variety of items and our knowledge of some items is quite limited.  Because of this we offer a 48 hour inspection period on all items that we sell.  If you happen to find a problem with your item that we missed, please let us know within 48 hours of delivery.  We will repair the item or refund your money if there is a problem that we cannot fix.  Good customer service is our only goal.  Please let us know immediately if there is a problem with your item.



International Buyers – Please Note: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.  Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.

Please note that we are not related with any of the companies that manufacture the products that we sale therefore if you have any questions regarding our products you can contact us directly.

"

---

On May-23-13 at 21:57:17 PDT, seller added the following information:

Condition

New – Open box

MPN

81541-AP12-2613-209
