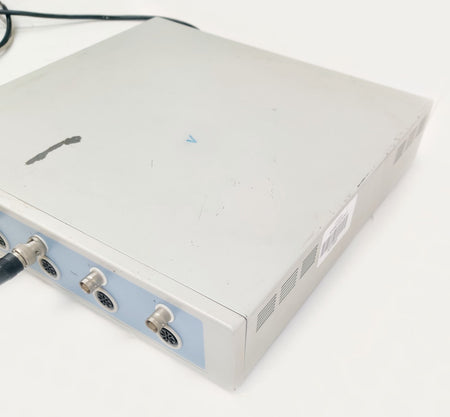

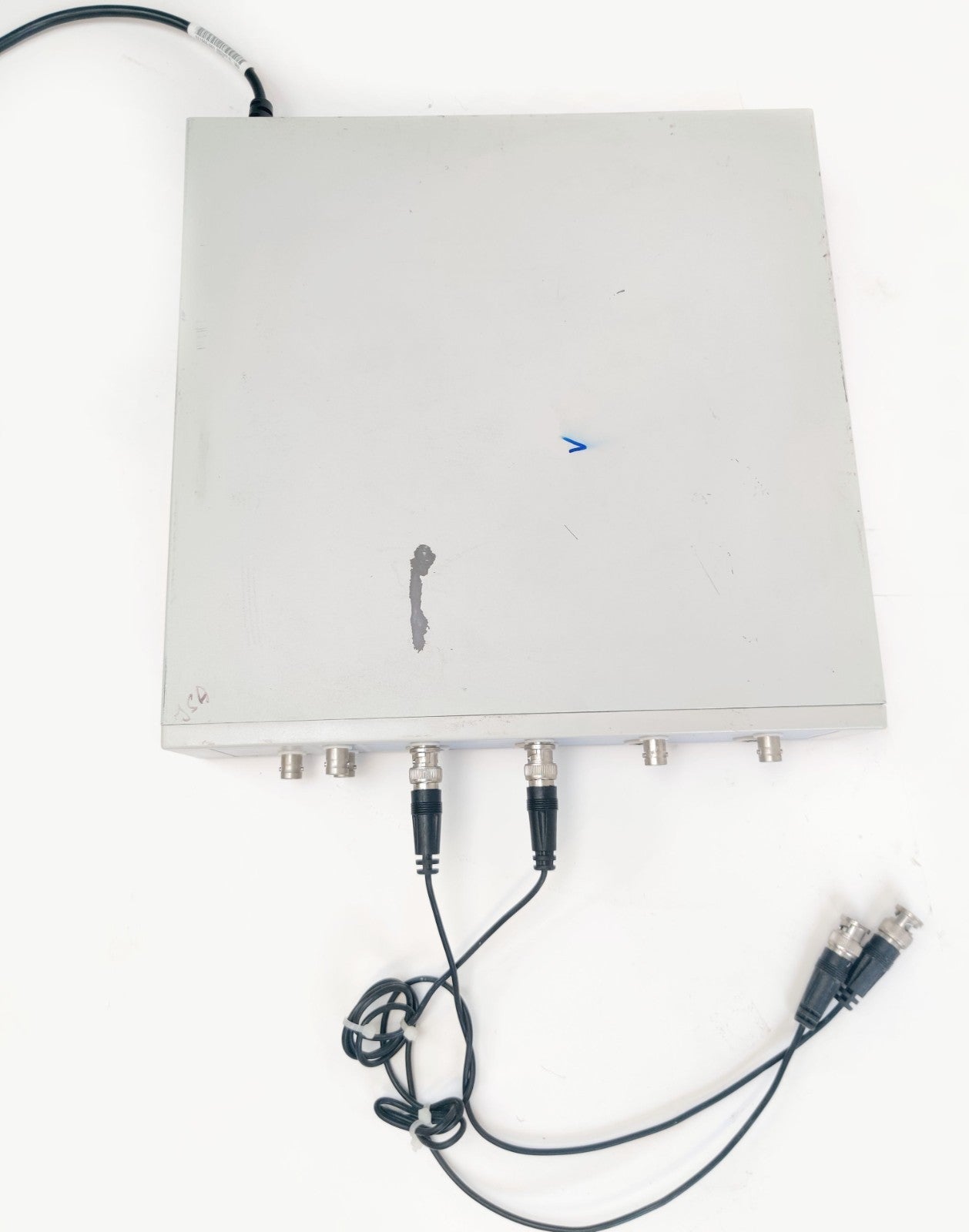

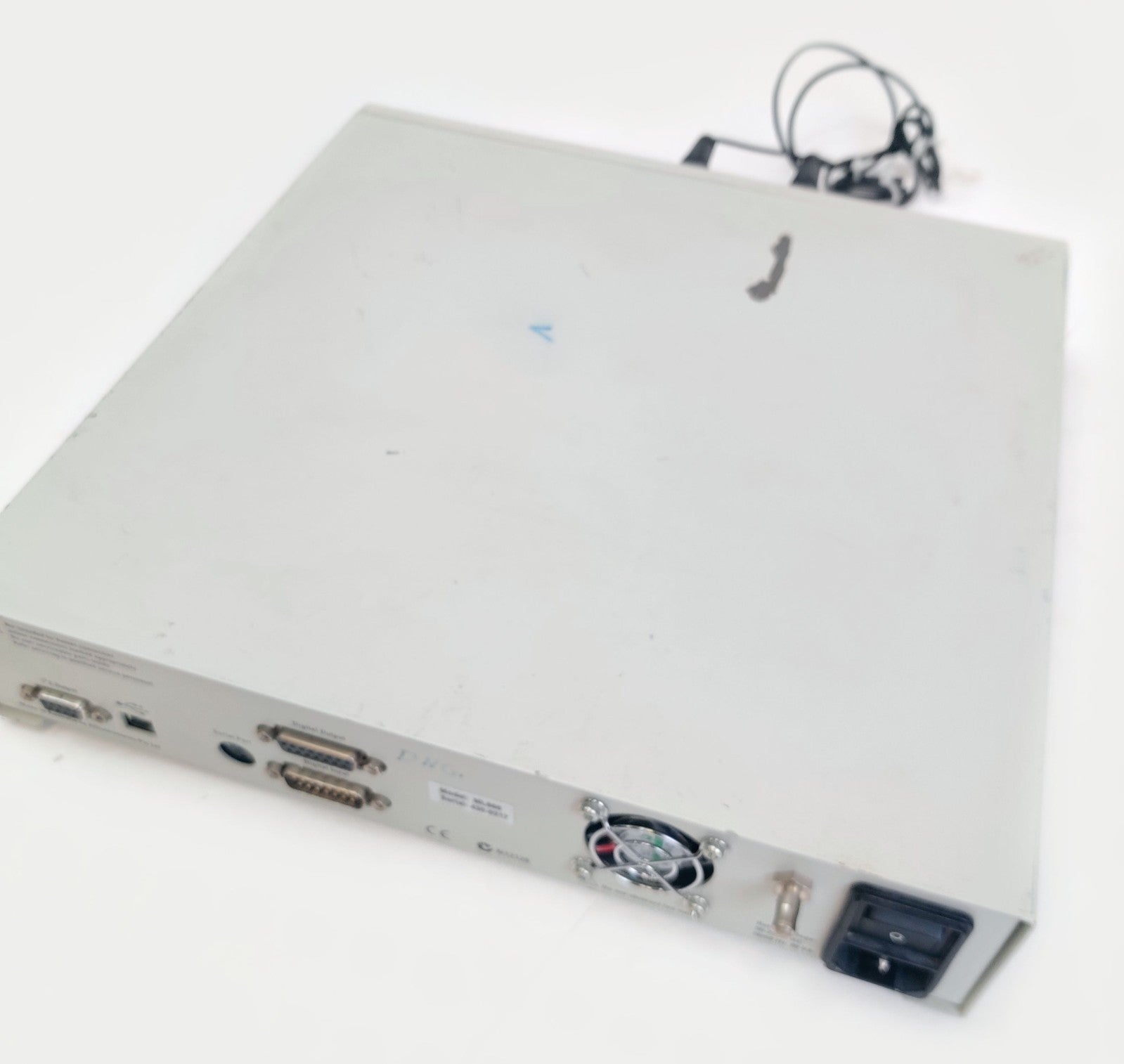

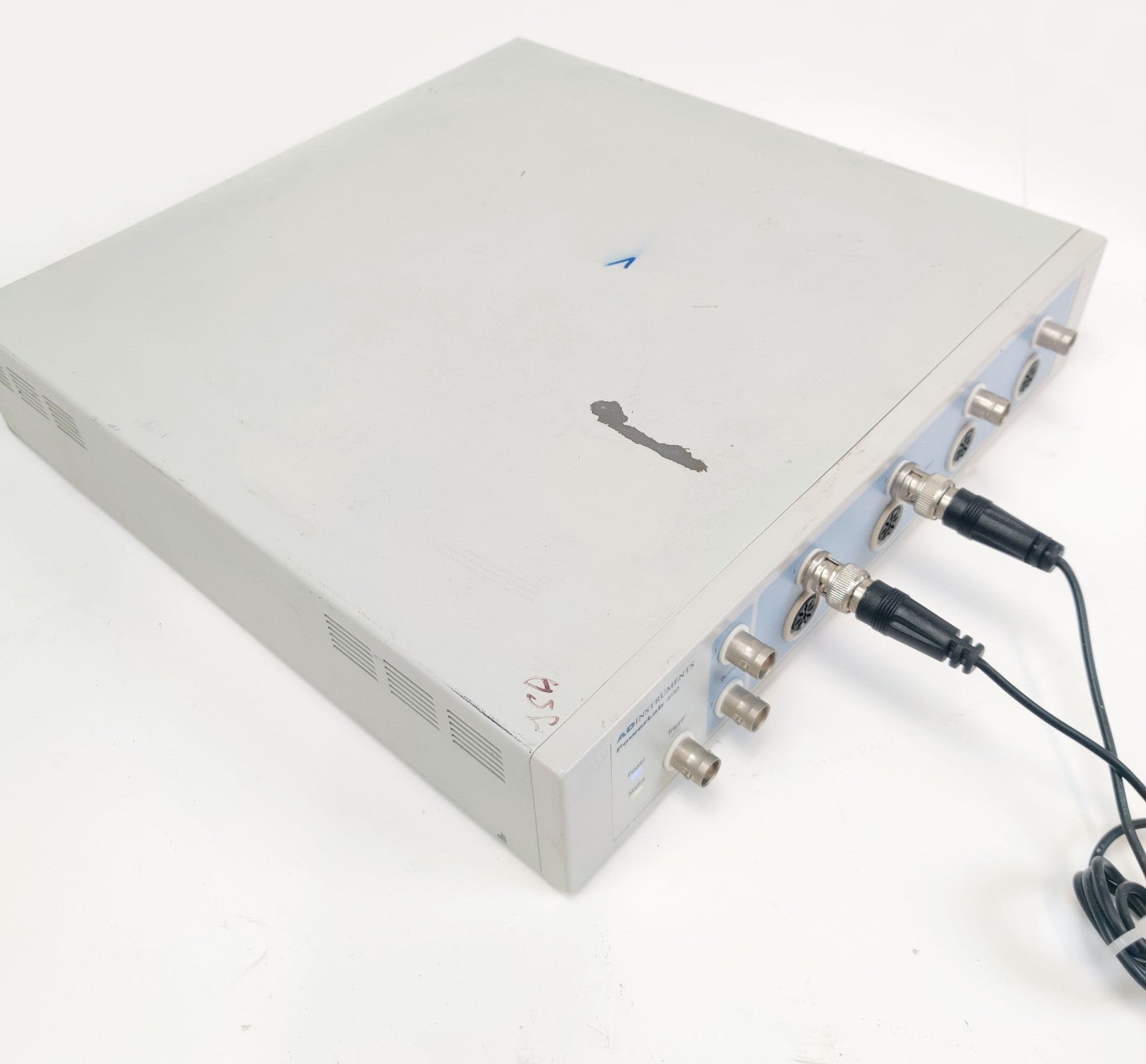

ADInstruments PowerLab 4/30 Data Acquisition and Analysis System Power
Worldwide delivery
3-day handling
Free US shipping
with no fees
15% off
on any second item
Couldn't load pickup availability
Used. Power tested only; option status turned green, indicating ready to use, and the self-diagnostic test was complete. Guarantee works or 30-Day Returns!
Brand: ADInstruments

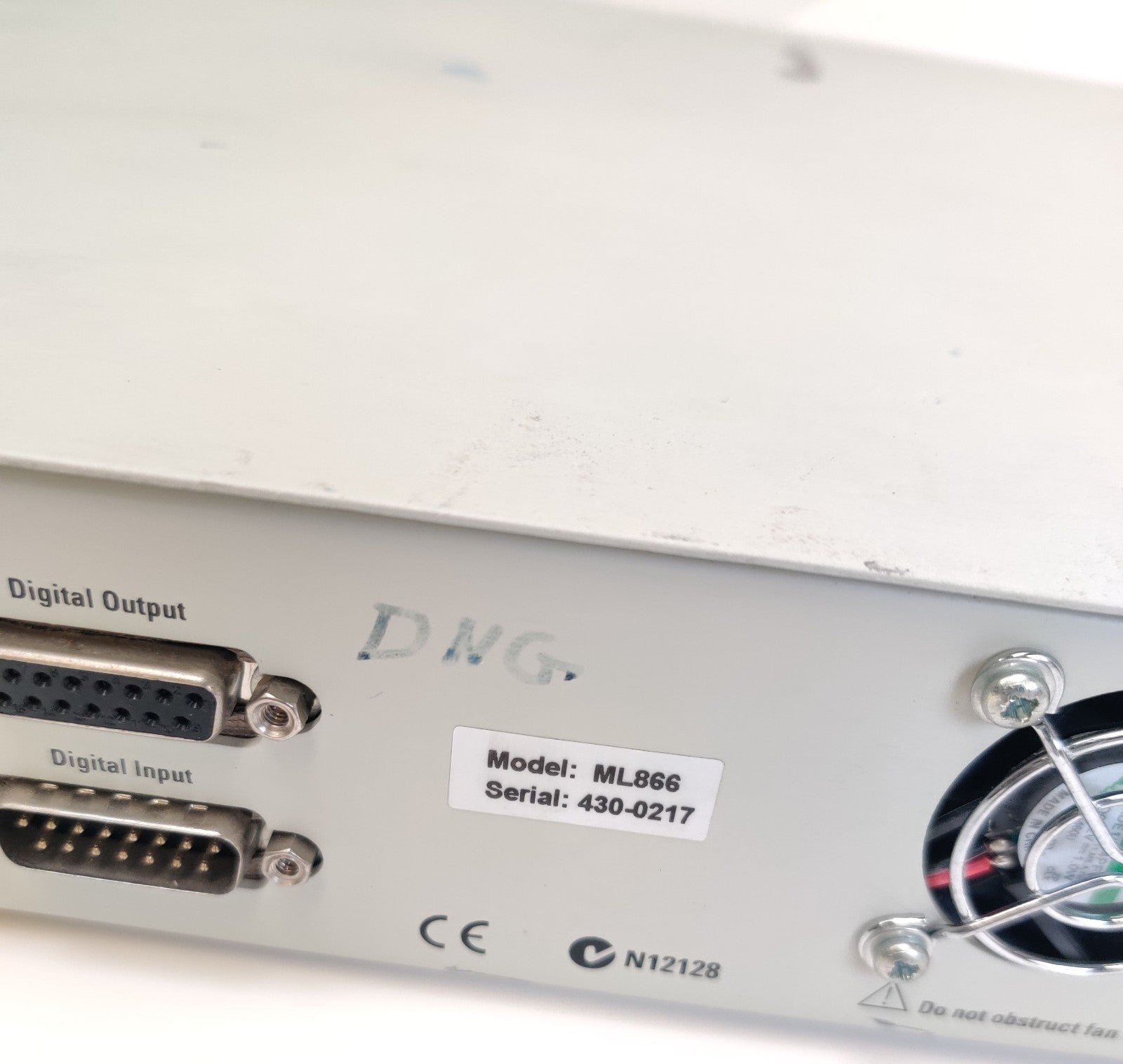

MPN: ML866
Model: PowerLab 4/30
Type: Data Acquisition and Analysis System
Used with: Life Science Research
SN: 430-0217
Country of Origin: Australia
HS Code: 9030.84.0000

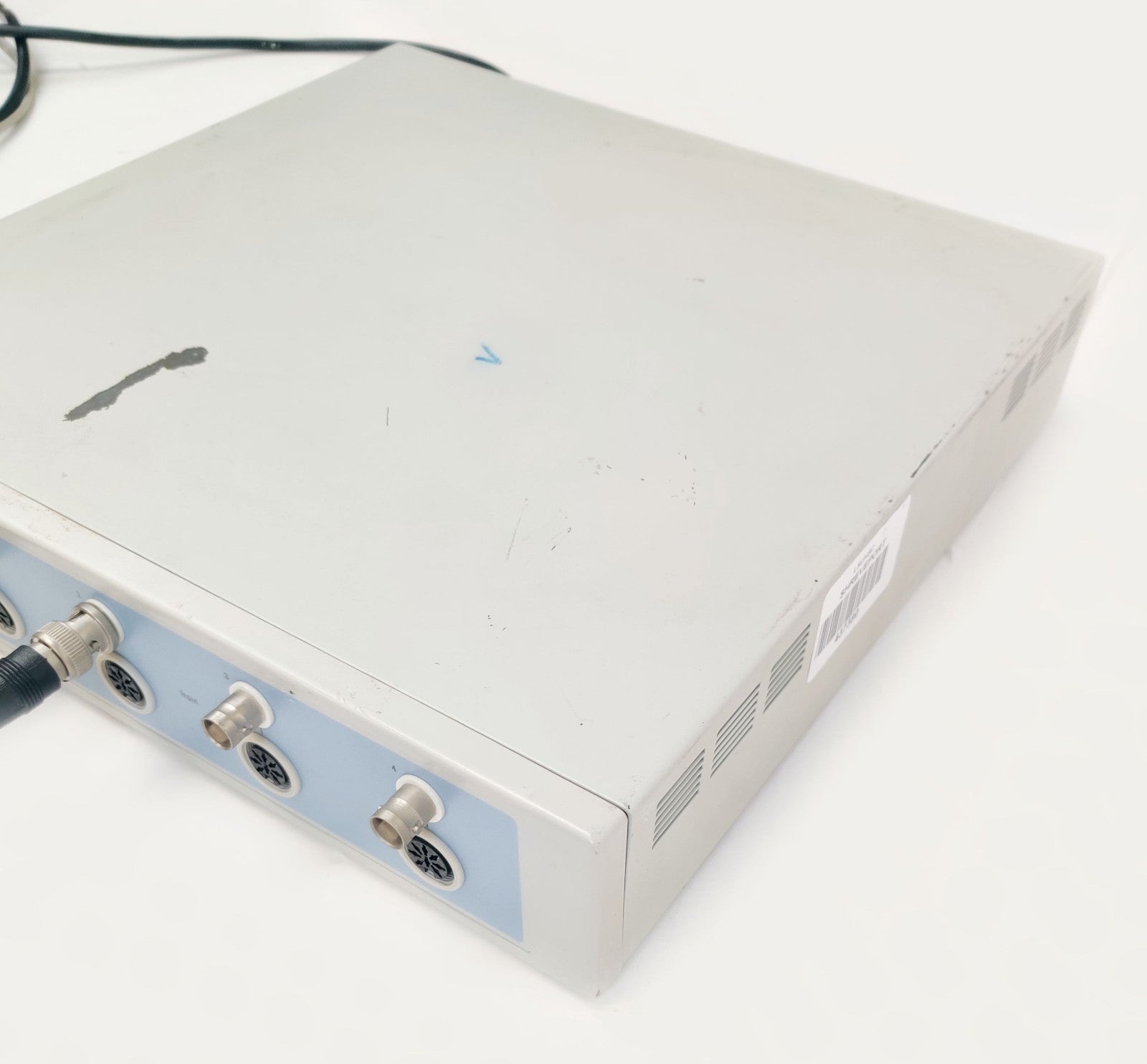

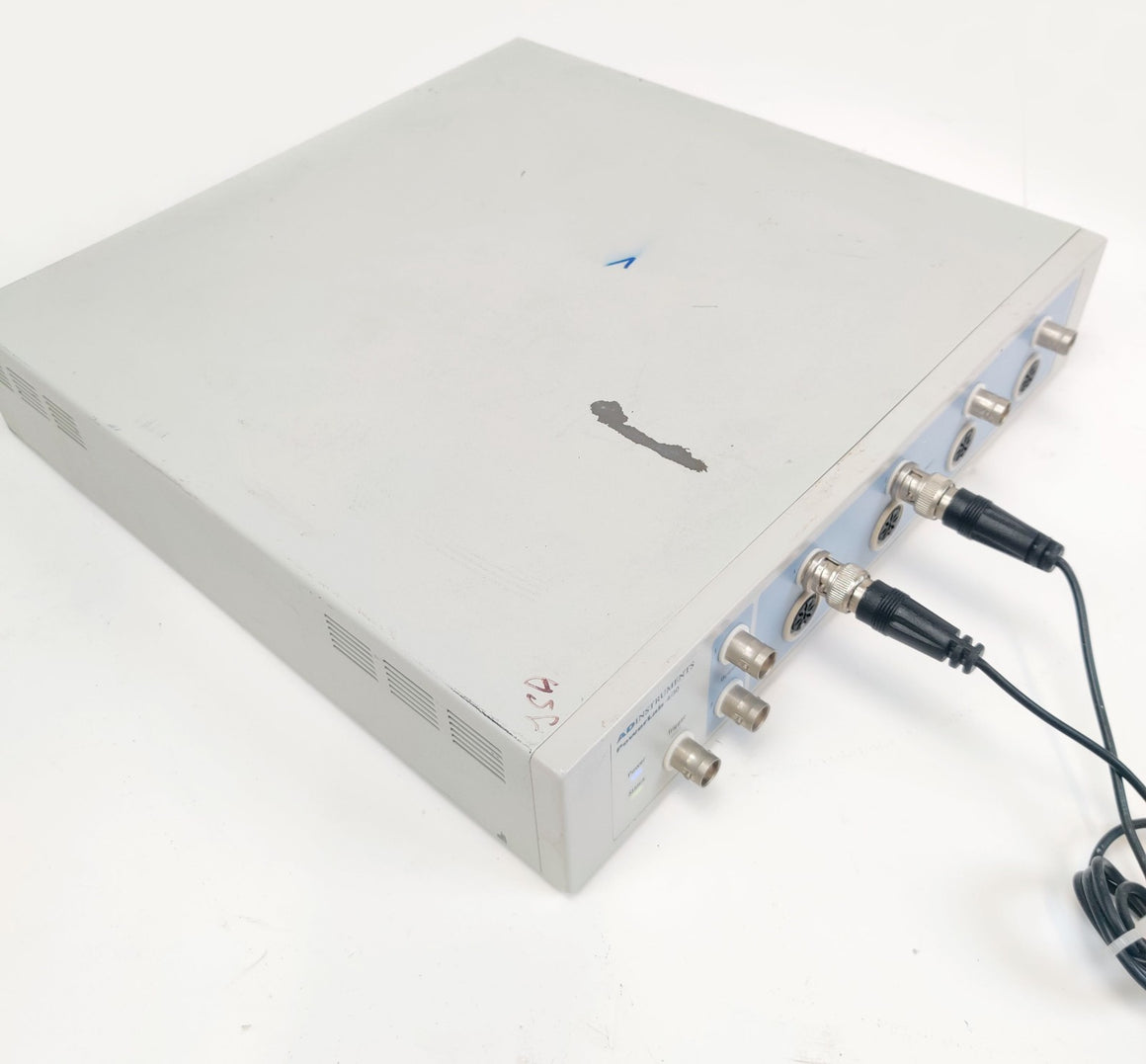

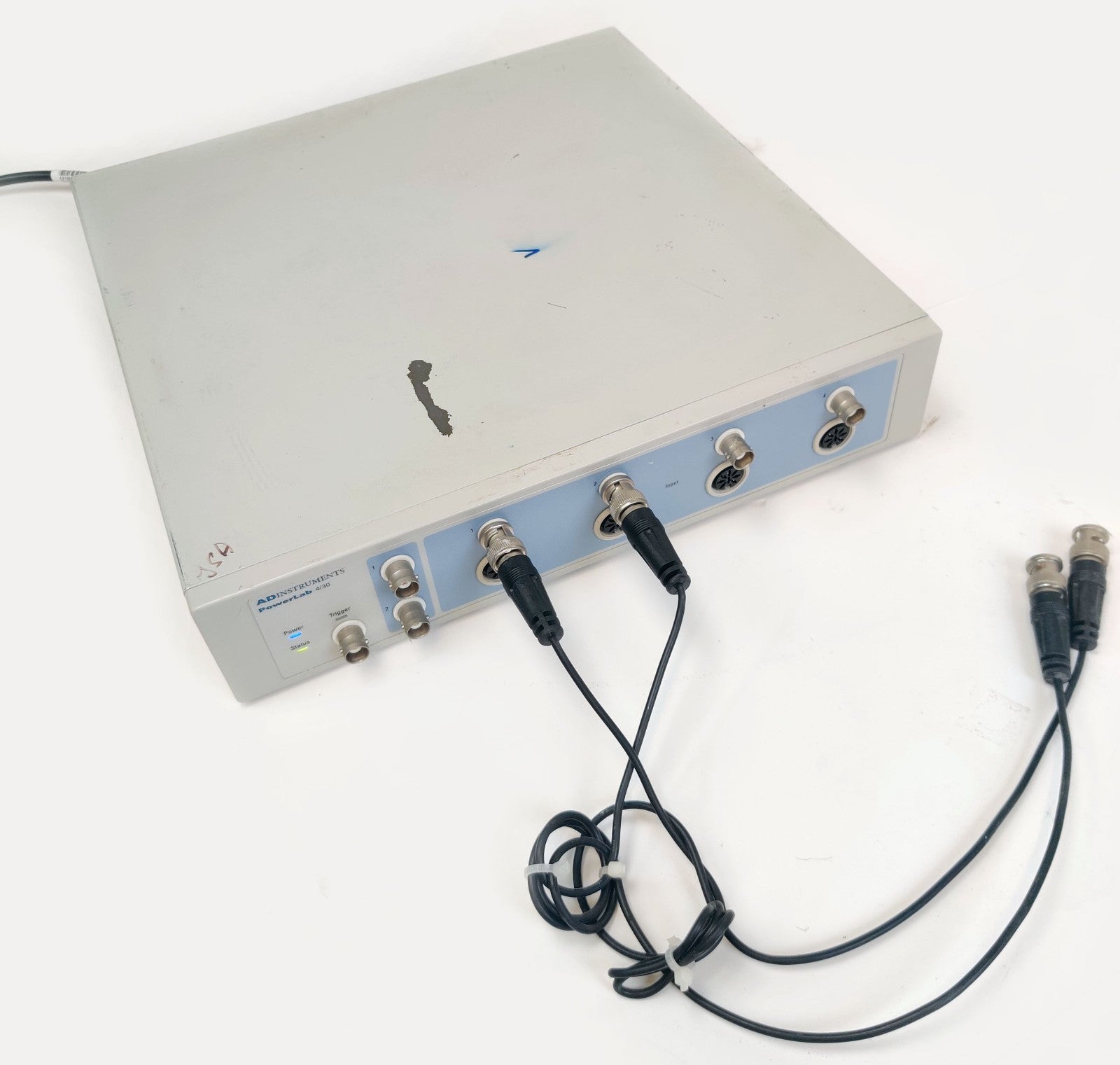

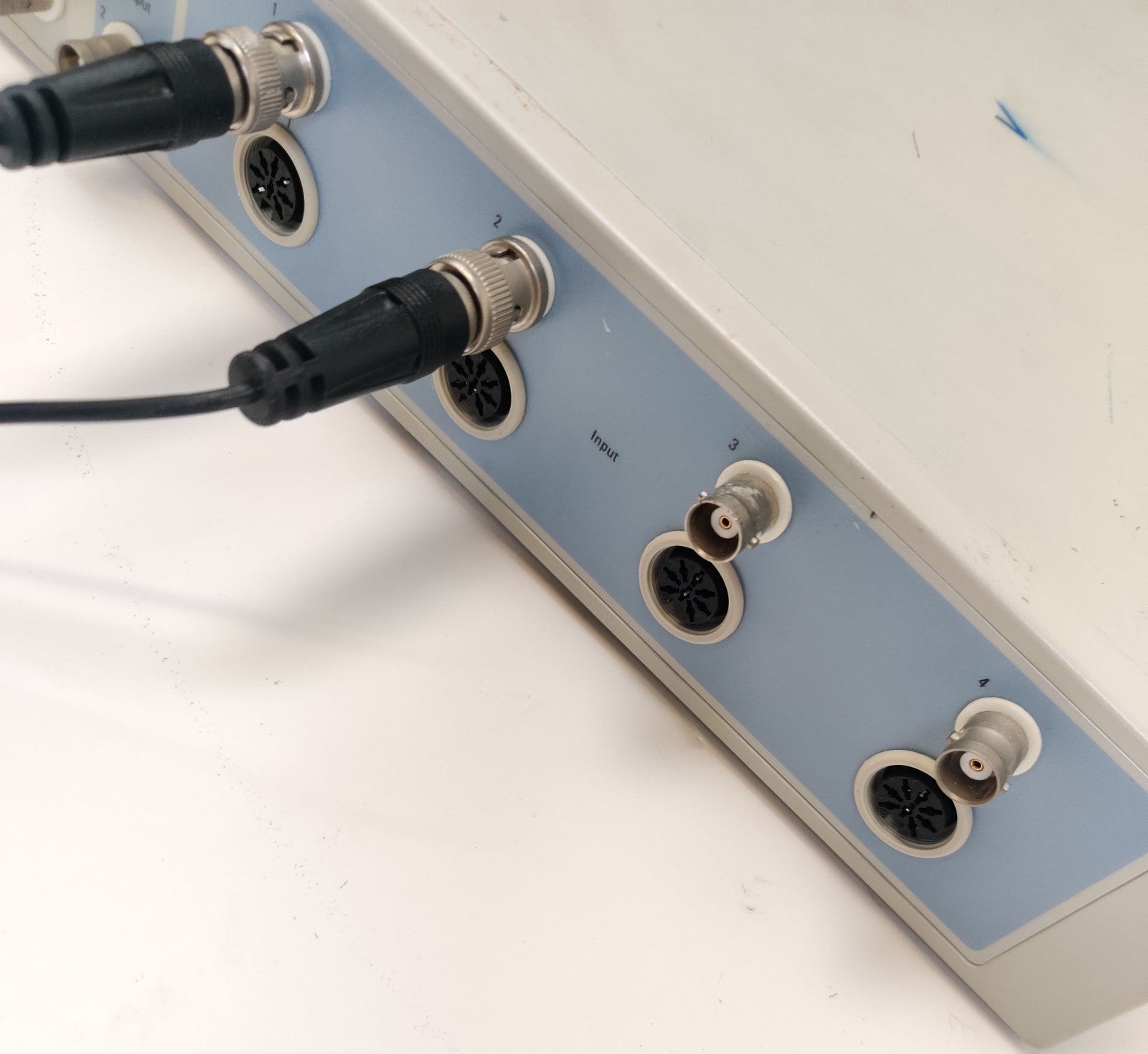

Analog Inputs: 4 independent input channels. It features both BNC connectors (for single-ended inputs) and 8-pin DIN Pod connectors (for single-ended or differential inputs)
Resolution: 16-bit ADC resolution
Sampling Rate: High-speed recording up to 200,000 samples per second (200 kHz) on one or two inputs, and 100 kHz on 3 or 4 inputs (400,000 samples/second aggregate)
Input Voltage Range: Programmable amplification from ±2 mV to ±10 V full scale in 12 steps

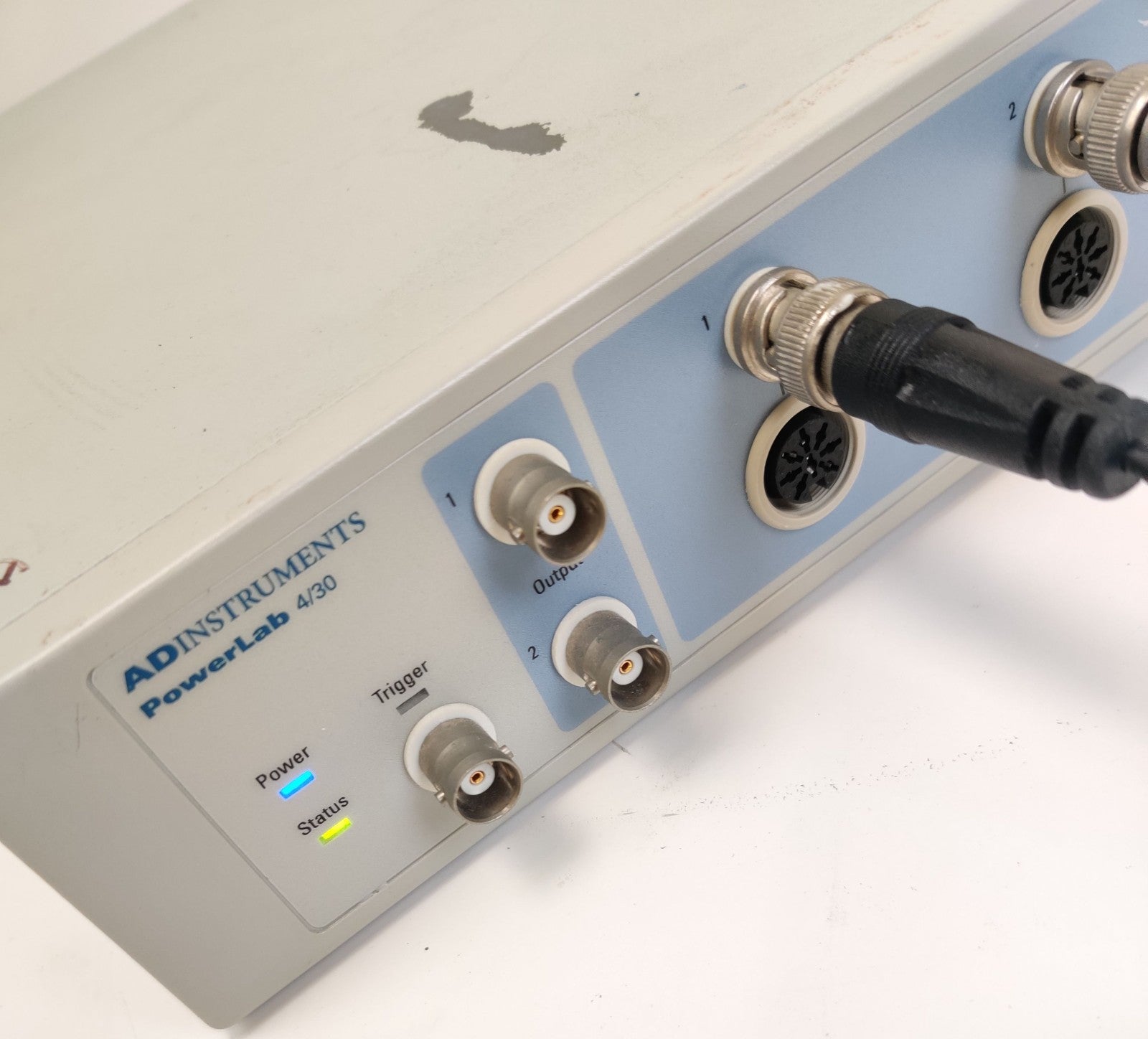

Analog Outputs: 2 independent output channels (BNC connectors) with 16-bit resolution, capable of generating constant DC voltage levels or waveforms

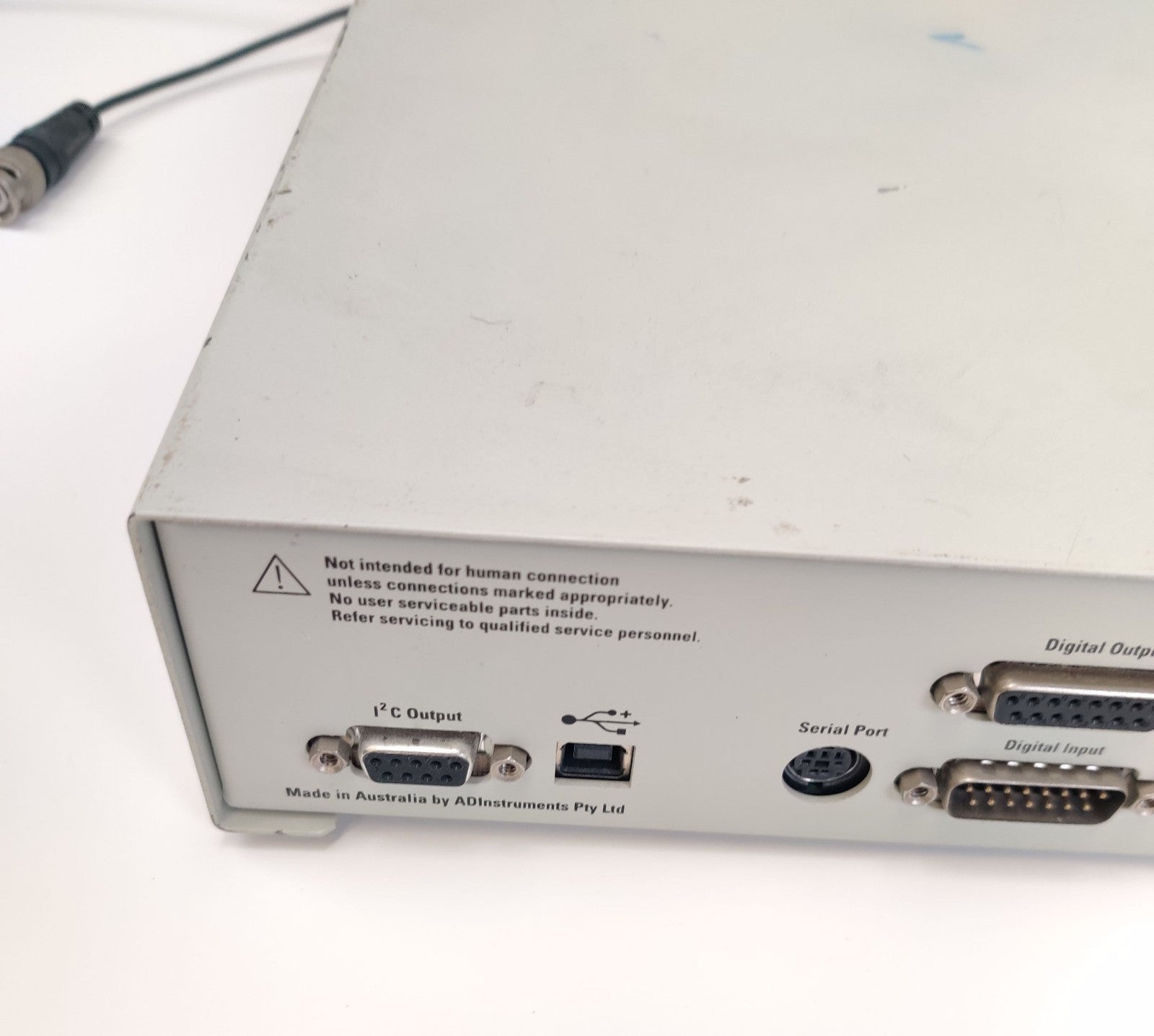

Interface/Communication: High-Speed USB 2.0 interface for fast data transfer to your PC or Mac
External Trigger: Built-in external trigger input (TTL level or contact closure) via BNC connector to synchronize recording to external events

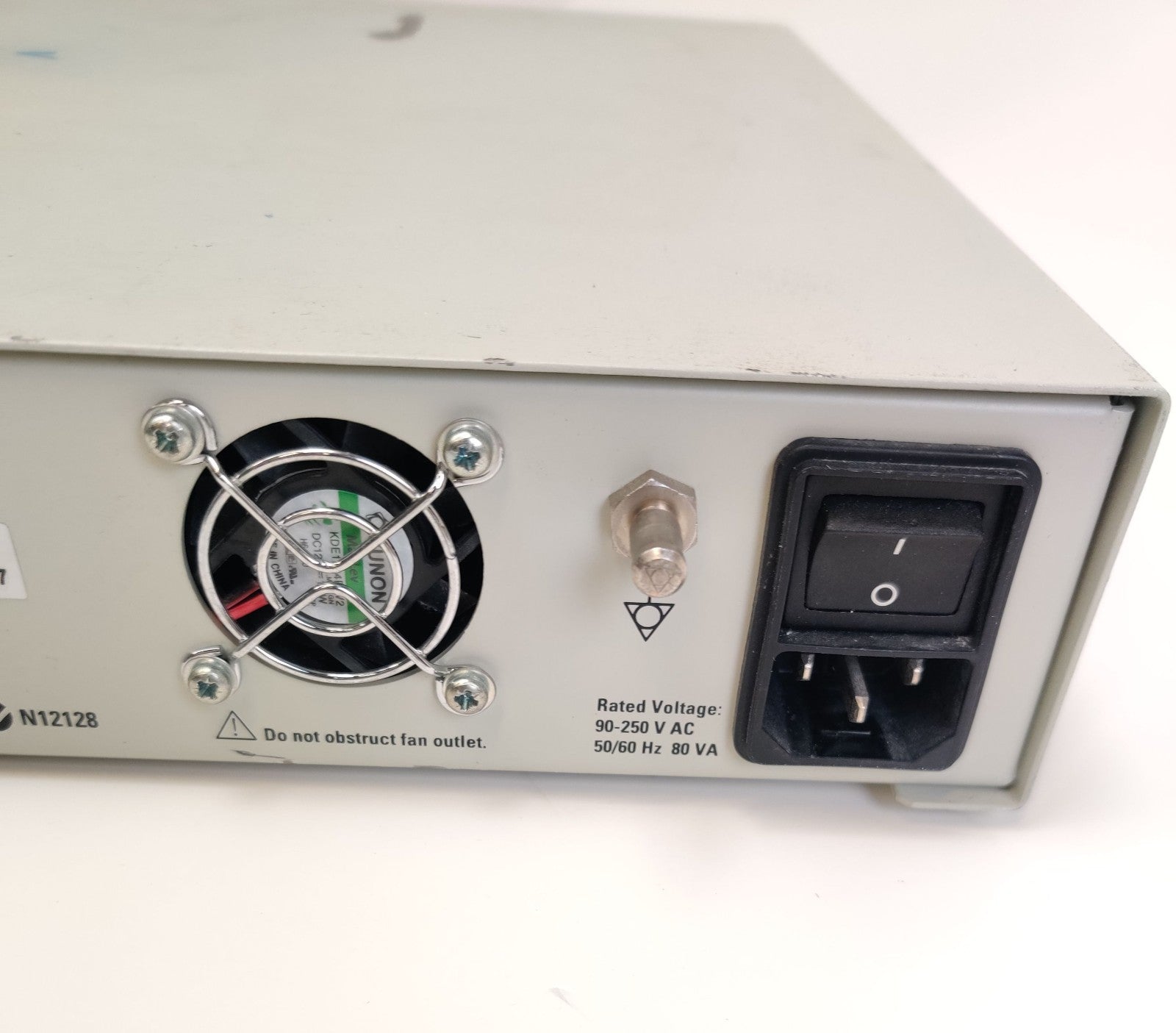

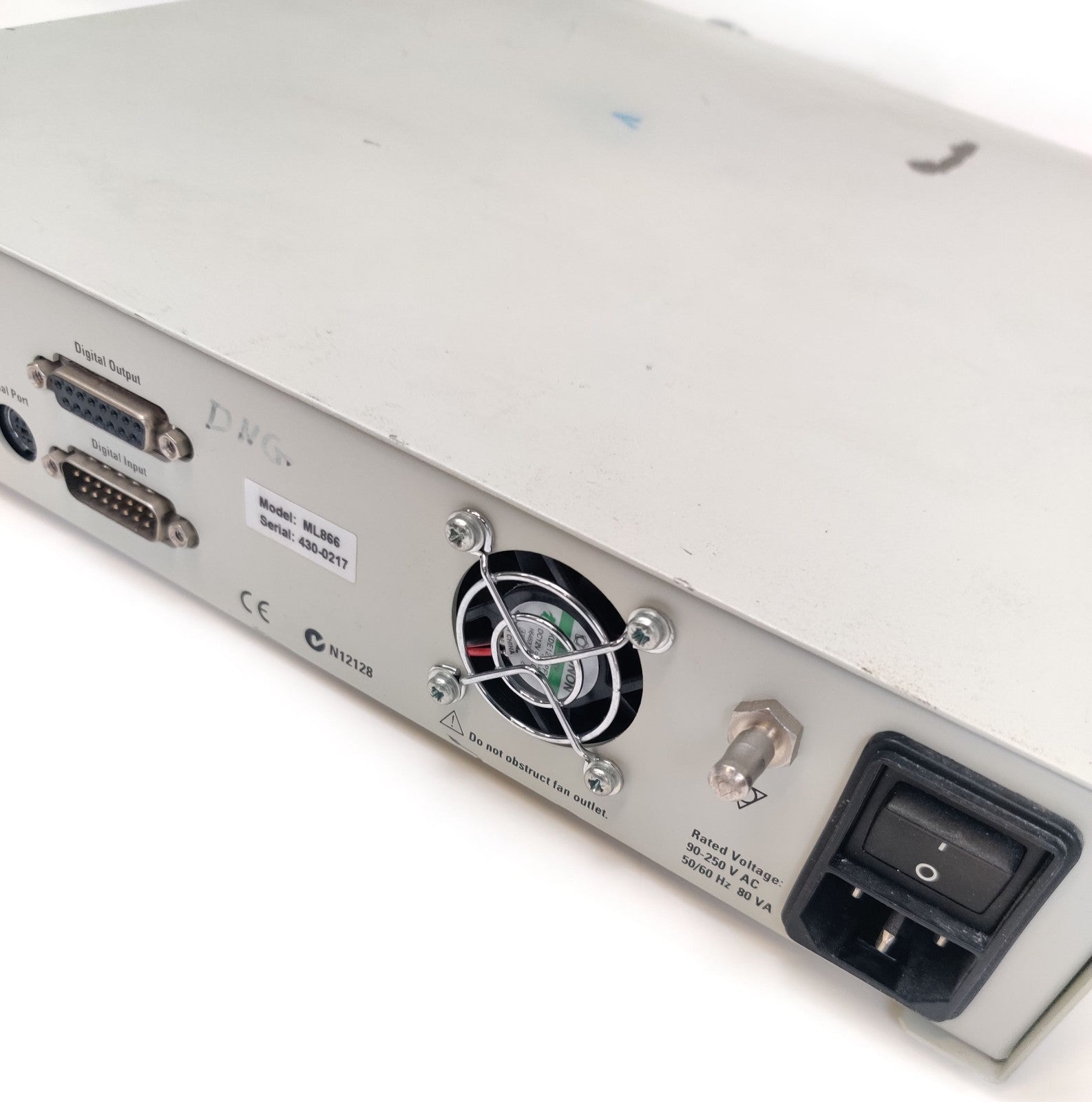

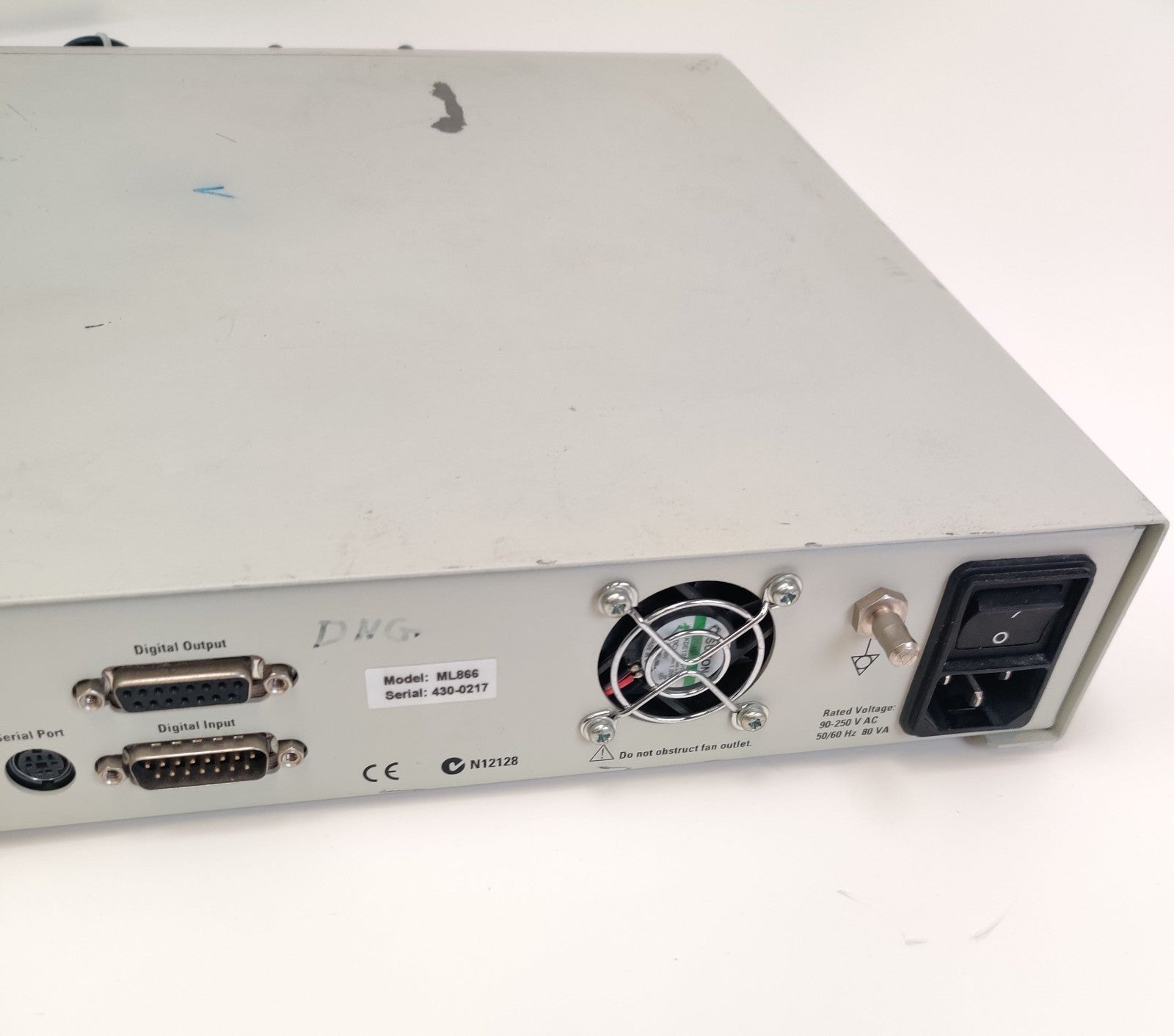

Power Supply: Universal auto-switching operating voltage (90-250 V AC, 50/60 Hz)
Used
Power tested only; option status turned green, indicating ready to use, and the self-diagnostic test was complete. Guarantee works or 30-Day Returns!
12lbs
ML866
